OEM Parts Yamaha 2017 Yamaha Super Jet Control Cable

2017 Yamaha Super Jet SJ700BS F4D9 - Control Cable

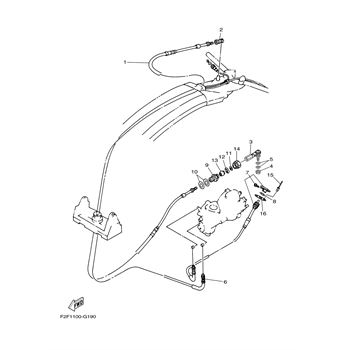

CONTROL CABLE Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

CABLE, STEERING

Part #: F2F-61481-00-00 Required per assembly: 1
$208.03
-
+
Add to cart
2

SHAFT, JOINT, BALL

Part #: EU0-61461-30-00 Required per assembly: 1
$67.48
$66.51
-
+
Add to cart
3

STUD, JOINT, BALL

Part #: F2F-61461-00-00 Required per assembly: 1
$109.98
$108.83
-
+
Add to cart
4

NUT

Part #: 95380-06700-00 Required per assembly: 1
$9.49
$6.05
-
+
Add to cart
5

WASHER, PLATE

Part #: 90201-06906-00 Required per assembly: 2
$3.49
$3.18
-
+
Add to cart
6

CABLE, THROTTLE

Part #: GM6-67252-00-00 Required per assembly: 1
$152.61
-
+
Add to cart
7

CABLE, CHOKE

Part #: GM6-67242-00-00 Required per assembly: 1
$120.98
$119.42
-
+
Add to cart
8

WASHER, PLATE

Part #: 90201-11008-00 Required per assembly: 1
$12.49
$5.59
-
+
Add to cart
9

BODY, CABLE, CONNECTOR

Part #: EU0-61436-00-00 Required per assembly: 1
$9.99
$9.06
-
+
Add to cart
10

PACKING (C)

Part #: EU0-61438-00-00 Required per assembly: 2 Note: (C)
$8.49
$8.30
-
+
Add to cart
11

WASHER 30

Part #: EU0-61446-00-00 Required per assembly: 1
$4.99
$4.54
-
+
Add to cart
12

STOPPER

Part #: EU0-61486-00-00 Required per assembly: 1
$7.49
$6.80
-
+
Add to cart
13

SEAL, PIPE, 30

Part #: EU0-61435-00-00 Required per assembly: 1
$12.46
$11.32
-
+
Add to cart
14

CAP

Part #: EU0-62694-00-00 Required per assembly: 1
$14.49
$14.35
-
+
Add to cart
15

RIVET, BLIND

Part #: 90267-40945-00 Required per assembly: 2
$9.49
$6.21
-
+
Add to cart
16

WASHER, SPECIAL, SHAP

Part #: 90209-12920-00 Required per assembly: 1
$25.98
$18.92
-
+
Add to cart
