Crankcase replacement parts for 2017 Yamaha Raider

OEM Parts Yamaha 2017 Yamaha Raider Crankcase

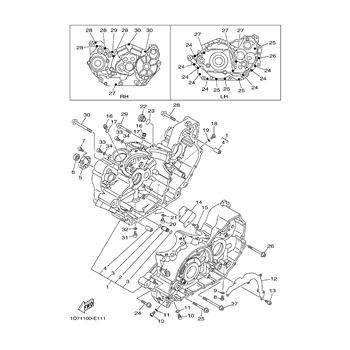

CRANKCASE Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	CRANKCASE ASSEMBLY Part #: 1D7-15100-19-00 Required per assembly: 1 $1,704.10 $1,590.18 - + Add to cart
2	NOZZLE 1 Part #: 1D7-15138-00-00 Required per assembly: 1 $6.99 $5.61 - + Add to cart
3	O-RING Part #: 93210-10001-00 Required per assembly: 2 $2.35 $1.22 - + Add to cart
4	PIN, DOWEL Part #: 99530-10116-00 Required per assembly: 2 $4.40 $3.30 - + Add to cart
5	HOUSING, BEARING, 1 Part #: 1D7-15163-00-00 Required per assembly: 1 $35.99 $28.62 - + Add to cart
6	BRG, R-B, 6000, 26MM, 19G, KY Part #: 93306-00004-00 Required per assembly: 1 $41.99 $32.13 - + Add to cart
7	BOLT, HEXAGON, SOCKET, HEAD Part #: 91314-06020-00 Required per assembly: 3 $2.64 $2.01 - + Add to cart
8	SCREW Part #: 90149-06156-00 Required per assembly: 1 $9.49 $6.24 - + Add to cart
9	GASKET Part #: 90430-06014-00 Required per assembly: 1 $8.59 $6.80 - + Add to cart
10	BOLT, SOCKET Part #: 91314-08014-00 Required per assembly: 2 $6.49 $5.26 - + Add to cart
11	WASHER, PLATE Part #: 90201-08087-00 Required per assembly: 2 Note: Sold in multiples of 5 only $3.95 $3.34 - + Add to cart
12	PLATE Part #: 1D7-15191-00-00 Required per assembly: 1 $3.75 $3.11 - + Add to cart
13	BOLT, HEX.SOCKET, HEAD Part #: 91317-06016-00 Required per assembly: 6 $1.25 $1.21 - + Add to cart
14	COVER, OIL, PUMP Part #: 1D7-15412-00-00 Required per assembly: 1 $5.49 $4.28 - + Add to cart
15	BOLT (33M) Part #: 91312-06014-00 Required per assembly: 3 $5.49 $4.66 - + Add to cart
16	PLUG Part #: 1D7-15189-00-00 Required per assembly: 2 $9.99 $8.23 - + Add to cart
17	O-RING Part #: 93210-07540-00 Required per assembly: 2 $7.49 $5.67 - + Add to cart
18	SCREW Part #: 90149-06156-00 Required per assembly: 1 $9.49 $6.24 - + Add to cart
19	GASKET Part #: 90430-06014-00 Required per assembly: 1 $8.59 $6.80 - + Add to cart
20	BOLT, SOCKET Part #: 91314-08014-00 Required per assembly: 1 $6.49 $5.26 - + Add to cart
21	WASHER, PLATE Part #: 90201-08087-00 Required per assembly: 1 Note: Sold in multiples of 5 only $3.95 $3.34 - + Add to cart
22	PLUG Part #: 4H7-15189-00-00 Required per assembly: 1 $33.99 $25.37 - + Add to cart
23	O-RING Part #: 93210-20003-00 Required per assembly: 1 $9.49 $6.17 - + Add to cart
24	BOLT, HEXAGON, SOCKET, HEAD Part #: 90110-06300-00 Required per assembly: 8 $3.39 $2.81 - + Add to cart
25	BOLT, HEXAGON, SOCKET, HEAD Part #: 90110-06094-00 Required per assembly: 4 $6.49 $4.45 - + Add to cart
26	BOLT, HEXAGON, SOCKET, HEAD Part #: 90110-06297-00 Required per assembly: 1 $6.49 $4.97 - + Add to cart
27	BOLT, HEXAGON, SOCKET, HEAD Part #: 90110-06296-00 Required per assembly: 4 $6.49 $5.35 - + Add to cart
28	BOLT, HEXAGON, SOCKET, HEAD Part #: 90110-06298-00 Required per assembly: 4 $8.49 $5.70 - + Add to cart
29	BOLT, HEXAGON, SOCKET, HEAD Part #: 90110-08072-00 Required per assembly: 1 $5.99 $4.91 - + Add to cart
30	BOLT, HEXAGON, SOCKET, HEAD Part #: 90110-08073-00 Required per assembly: 2 $8.49 $5.65 - + Add to cart
31	BOLT, SOCKET Part #: 91314-08014-00 Required per assembly: 1 $6.49 $5.26 - + Add to cart
32	WASHER, PLATE Part #: 90201-08087-00 Required per assembly: 1 Note: Sold in multiples of 5 only $3.95 $3.34 - + Add to cart
33	BOLT, HEXAGON, SOCKET, HEAD Part #: 91314-06010-00 Required per assembly: 2 $3.10 $2.57 - + Add to cart
34	GASKET Part #: 90430-06014-00 Required per assembly: 2 $8.59 $6.80 - + Add to cart
