Fuel Tank replacement parts for 2017 Yamaha Stryker

OEM Parts Yamaha 2017 Yamaha Stryker Fuel Tank

FUEL TANK Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	FUEL TANK COMP. Part #: 27D-Y2410-00-W2 Required per assembly: 1 $1,377.03 $1,301.85 - + Add to cart

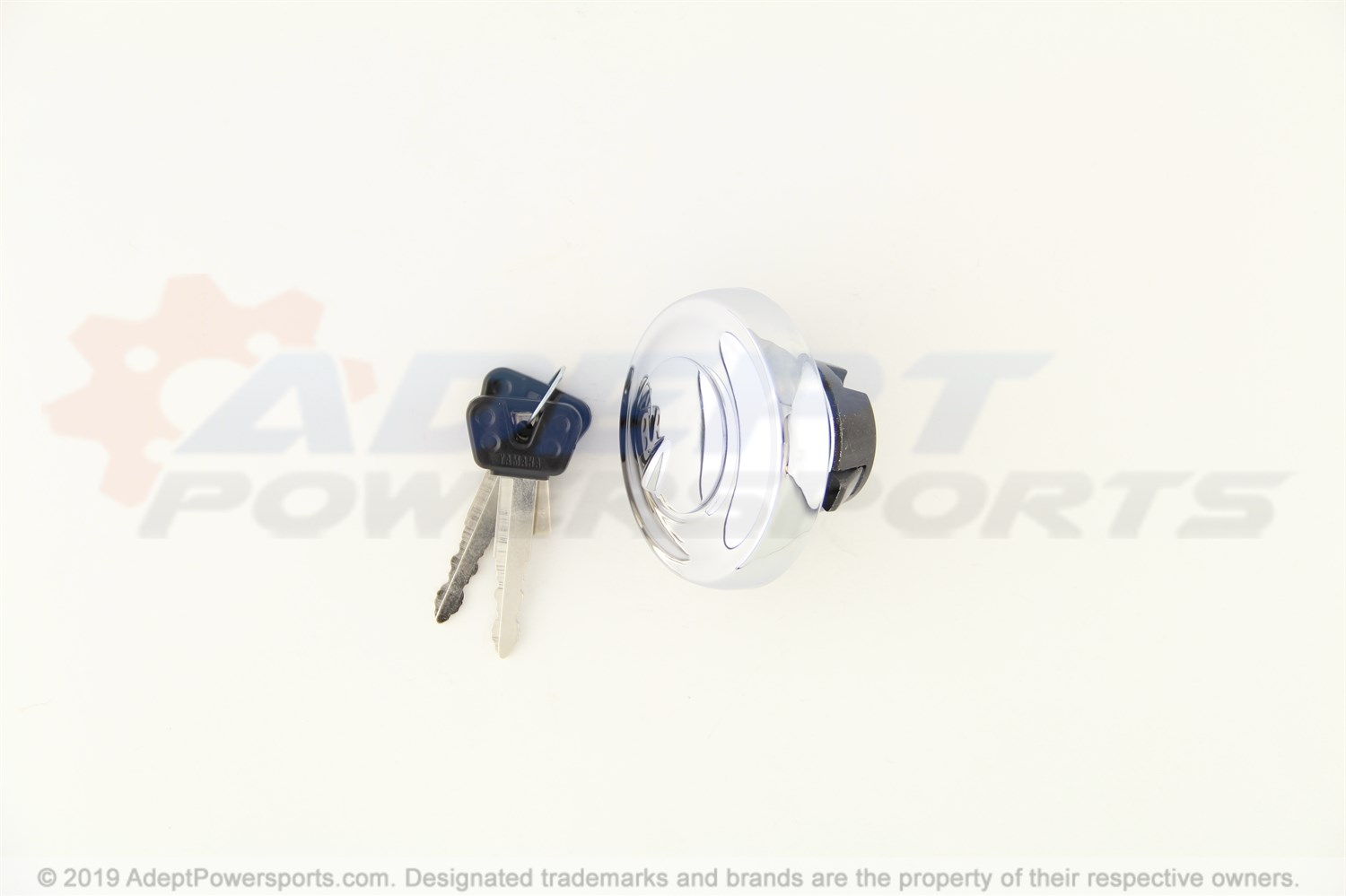

2	CAP ASSEMBLY Part #: 4NK-24602-20-00 Required per assembly: 1 $140.99 $119.71 - + Add to cart
3	FUEL COCK ASSEMBLY 1 Part #: 4JT-24500-20-00 Required per assembly: 1 $117.98 $96.77 - + Add to cart
4	VALVE PACKING Part #: 3AC-24523-00-00 Required per assembly: 1 $14.49 $11.39 - + Add to cart
5	SEAL, COCK Part #: 3AJ-24534-10-00 Required per assembly: 1 $8.49 $6.73 - + Add to cart
6	SCREW, PAN, HEAD, (3AC) Part #: 98517-03008-00 Required per assembly: 2 $3.20 $2.69 - + Add to cart
7	GASKET Part #: 4X8-24512-10-00 Required per assembly: 1 $15.49 $10.77 - + Add to cart
8	SCREW Part #: 90149-06108-00 Required per assembly: 2 $1.10 $0.94 - + Add to cart
9	WASHER, PLATE(3MB) Part #: 90202-05187-00 Required per assembly: 2 $1.70 $1.30 - + Add to cart
10	SENDER, UNIT, ASSEMBLY, FUEL, METER Part #: 27D-85752-11-00 Required per assembly: 1 $133.99 $116.15 - + Add to cart
11	GASKET, SENDER, UNIT Part #: 3D8-85753-00-00 Required per assembly: 1 $34.99 $26.46 - + Add to cart
12	WASHER, PLATE(3MB) Part #: 90202-05187-00 Required per assembly: 2 $1.70 $1.30 - + Add to cart
13	BOLT, FLANGE Part #: 95817-06016-00 Required per assembly: 2 $1.95 $1.47 - + Add to cart
14	DAMPER, LOCATING, 1 Part #: 4H7-24181-00-00 Required per assembly: 2 $7.49 $5.38 - + Add to cart
15	DAMPER, LOCATING, 2 Part #: 1D7-24182-00-00 Required per assembly: 1 $19.98 $16.68 - + Add to cart
16	BRACKET, TANK, FITTING Part #: 27D-2413Y-00-00 Required per assembly: 1 $31.98 $22.39 - + Add to cart
17	DAMPER, LOCATING, 3 Part #: 4TR-24183-00-00 Required per assembly: 1 $7.49 $6.31 - + Add to cart
18	COLLAR Part #: 90387-06177-00 Required per assembly: 1 $10.49 $8.24 - + Add to cart
19	BOLT, FLANGE Part #: 95812-06030-00 Required per assembly: 1 $2.14 $1.63 - + Add to cart
20	BOLT, FLANGE Part #: 95817-08012-00 Required per assembly: 2 $5.49 $3.90 - + Add to cart
21	DAMPER Part #: 2YK-21747-00-00 Required per assembly: 1 $3.95 $3.27 - + Add to cart
22	PUMP CASE COMP. Part #: 3D8-244A0-00-00 Required per assembly: 1 $380.73 - + Add to cart
23	DAMPER, PLATE, 2 Part #: 3D8-2414J-00-00 Required per assembly: 1 $3.95 $2.28 - + Add to cart
24	FUEL PUMP COMP. Part #: 3D8-13907-03-00 Required per assembly: 1 $665.99 $649.39 - + Add to cart
25	BRACKET, FUEL, PUMP Part #: 3D8-24491-10-00 Required per assembly: 1 $55.99 $49.08 - + Add to cart
26	O-RING Part #: 19B-24486-01-00 Required per assembly: 1 $47.99 $36.68 - + Add to cart
27	BOLT, HEXAGON, SOCKET, HEAD Part #: 90110-05028-00 Required per assembly: 6 $9.49 $6.17 - + Add to cart
28	DAMPER, LOCATING, 5 Part #: 3D8-24185-00-00 Required per assembly: 3 $3.64 $3.05 - + Add to cart
29	COLLAR(2TV) Part #: 90387-062U9-00 Required per assembly: 3 $3.70 $3.08 - + Add to cart
30	BOLT, FLANGE Part #: 95817-06025-00 Required per assembly: 3 $1.75 $1.44 - + Add to cart
31	PIPE, FUEL, 1 Part #: 27D-24311-00-00 Required per assembly: 1 $102.98 $84.29 - + Add to cart
32	CLIP Part #: 90467-12004-00 Required per assembly: 1 $8.49 $6.31 - + Add to cart
33	CLIP Part #: 90467-130A1-00 Required per assembly: 1 $8.49 $4.60 - + Add to cart
34	CLAMP Part #: 90464-19001-00 Required per assembly: 1 $2.85 $2.37 - + Add to cart
35	PIPE 2 Part #: 27D-24312-00-00 Required per assembly: 1 $83.98 $70.53 - + Add to cart
36	CLIP Part #: 90467-160A2-00 Required per assembly: 1 $6.49 $4.14 - + Add to cart
37	CLIP Part #: 5PX-2411M-00-00 Required per assembly: 1 $11.99 $8.69 - + Add to cart
38	PIPE, FUEL, 1 Part #: 3D8-13971-00-00 Required per assembly: 1 $144.99 $123.55 - + Add to cart
39	CLIP Part #: 90467-090A5-00 Required per assembly: 1 $2.39 $1.83 - + Add to cart
40	PIPE 13 Part #: 27D-24324-00-00 Required per assembly: 1 $32.99 $25.08 - + Add to cart
41	PIPE 14 Part #: 27D-24325-00-00 Required per assembly: 1 $28.98 $22.35 - + Add to cart
42	PIPE 3 Part #: 27D-2486G-00-00 Required per assembly: 1 $48.99 $42.28 - + Add to cart
43	CLIP Part #: 90467-09001-00 Required per assembly: 2 $2.60 $1.71 - + Add to cart
44	ROLL OVER VALVE ASSEMBLY Part #: 5RB-24180-00-00 Required per assembly: 1 Note: CA $129.99 $112.37 - + Add to cart
45	CLAMP Part #: 90464-15014-00 Required per assembly: 1 $3.64 $1.87 - + Add to cart
46	RIVET Part #: 90269-05005-00 Required per assembly: 1 $3.64 $3.46 - + Add to cart
47	CLAMP Part #: 90464-15192-00 Required per assembly: 2 $9.49 $6.05 - + Add to cart
48	CLAMP Part #: 90464-30252-00 Required per assembly: 1 $3.10 $2.57 - + Add to cart
49	JOINT Part #: 4XY-14568-00-00 Required per assembly: 1 Note: CALIFORNIA $7.49 $6.27 - + Add to cart
50	CLIP Part #: 90467-090A2-00 Required per assembly: 2 $4.75 $2.45 - + Add to cart
51	CLAMP Part #: 90464-10012-00 Required per assembly: 1 Not Available
52	COVER, TANK Part #: 27D-241B1-10-00 Required per assembly: 1 $75.98 $63.97 - + Add to cart
53	SEAL 7 Part #: 27D-241A7-00-00 Required per assembly: 1 $16.48 $10.64 - + Add to cart
54	SEAL Part #: 27D-24329-00-00 Required per assembly: 1 $16.48 $10.96 - + Add to cart
55	SEAL 8 Part #: 27D-241A8-00-00 Required per assembly: 1 $18.98 $13.97 - + Add to cart
56	SEAL 2 Part #: 27D-2414E-00-00 Required per assembly: 1 $18.98 $14.02 - + Add to cart
57	CANISTER ASSEMBLY Part #: 5PX-24170-00-00 Required per assembly: 1 $289.99 $282.53 - + Add to cart
58	WASHER, PLATE, 8221447500 Part #: 90201-06057-00 Required per assembly: 1 $6.49 $3.70 - + Add to cart
59	BOLT, HEXAGON, SOCKET, BUTTON Part #: 90111-06046-00 Required per assembly: 1 $8.49 $5.16 - + Add to cart
60	COLLAR Part #: 90387-062L2-00 Required per assembly: 1 $8.49 $5.58 - + Add to cart
61	GROMMET Part #: 90480-13163-00 Required per assembly: 1 $7.99 $6.27 - + Add to cart
62	PIPE 11 Part #: 27D-24322-00-00 Required per assembly: 1 $2.79 $2.33 - + Add to cart
63	CLIP Part #: 90467-100A1-00 Required per assembly: 1 $8.49 $6.27 - + Add to cart
64	CLIP Part #: 90467-090A2-00 Required per assembly: 1 $4.75 $2.45 - + Add to cart
65	CLIP Part #: 90467-090A2-00 Required per assembly: 1 $4.75 $2.45 - + Add to cart
66	LABEL, CAUTION Part #: 1TP-2118K-A2-00 Required per assembly: 1 $8.49 $5.91 - + Add to cart
	PIPE 1 Part #: 27D-2486A-00-00 Required per assembly: 1 $40.99 $35.09 - + Add to cart
	CLAMP Part #: 90464-20191-00 Required per assembly: 1 $11.49 $7.23 - + Add to cart
