Transmission replacement parts for 2017 Yamaha Bolt R Spec

OEM Parts Yamaha 2017 Yamaha Bolt R Spec Transmission

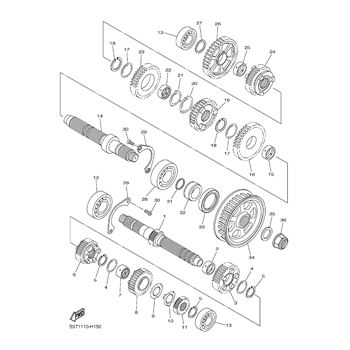

TRANSMISSION Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	AXLE, MAIN, (15T) Part #: 5S7-17411-10-00 Required per assembly: 1 $221.99 $200.04 - + Add to cart
2	COLLAR Part #: 90387-28003-00 Required per assembly: 1 $32.99 $23.48 - + Add to cart
3	GEAR, 5TH, PINION, (24T) Part #: 5S7-17151-00-00 Required per assembly: 1 $97.98 $88.41 - + Add to cart
4	WASHER Part #: 90209-25011-00 Required per assembly: 2 $9.49 $7.09 - + Add to cart
5	CIRCLIP Part #: 93440-28184-00 Required per assembly: 3 $5.49 $3.64 - + Add to cart
6	GEAR, 3RD, PINION, (19T) Part #: 5S7-17131-10-00 Required per assembly: 1 $135.99 $123.36 - + Add to cart
7	COLLAR Part #: 90387-25025-00 Required per assembly: 1 $27.98 $22.77 - + Add to cart
8	GEAR, 4TH, PINION, (27T) Part #: 5S7-17141-10-00 Required per assembly: 1 $94.98 $85.37 - + Add to cart
9	WASHER, CLAW Part #: 90214-25004-00 Required per assembly: 1 $10.49 $7.11 - + Add to cart
10	WASHER, CLAW Part #: 90214-25003-00 Required per assembly: 1 $10.49 $7.12 - + Add to cart
11	GEAR, 2ND, PINION, (16T) Part #: 5S7-17121-00-00 Required per assembly: 1 $40.99 $35.26 - + Add to cart
12	BEARING Part #: 93306-37817-00 Required per assembly: 1 $78.98 $64.53 - + Add to cart
13	BEARING Part #: 93306-37215-00 Required per assembly: 2 $51.99 $44.03 - + Add to cart
14	AXLE, DRIVE Part #: 5S7-17421-00-00 Required per assembly: 1 $292.99 $254.89 - + Add to cart
15	COLLAR Part #: 90387-31003-00 Required per assembly: 1 $23.98 $17.68 - + Add to cart
16	GEAR, 2ND, WHEEL, (33T) Part #: 5S7-17221-00-00 Required per assembly: 1 $109.98 $99.35 - + Add to cart
17	WASHER Part #: 90209-28008-00 Required per assembly: 2 $9.49 $6.11 - + Add to cart
18	CIRCLIP Part #: 93440-31187-00 Required per assembly: 2 $9.49 $6.12 - + Add to cart
19	GEAR, 4TH, WHEEL, (34T) Part #: 5S7-17241-10-00 Required per assembly: 1 $122.98 $111.03 - + Add to cart
20	WASHER, CLAW Part #: 90214-29002-00 Required per assembly: 1 $9.49 $7.20 - + Add to cart
21	WASHER, CLAW Part #: 90214-28002-00 Required per assembly: 1 $9.49 $6.99 - + Add to cart
22	COLLAR Part #: 90387-28004-00 Required per assembly: 1 $36.99 $27.84 - + Add to cart
23	GEAR, 3RD, WHEEL, (30T) Part #: 5S7-17231-00-00 Required per assembly: 1 $99.98 $90.07 - + Add to cart
24	GEAR, 5TH, WHEEL, (25T) Part #: 5S7-17251-00-00 Required per assembly: 1 $133.99 $116.39 - + Add to cart
25	COLLAR Part #: 90387-25008-00 Required per assembly: 1 $33.99 $24.03 - + Add to cart
26	GEAR, 1ST, WHEEL, (46T) Part #: 5S7-17211-00-00 Required per assembly: 1 $166.99 $143.94 - + Add to cart
27	WASHER, PLATE Part #: 90201-224L4-00 Required per assembly: 1 $9.49 $6.67 - + Add to cart
28	BEARING Part #: 93306-30610-00 Required per assembly: 1 $97.98 $80.03 - + Add to cart
29	PLATE, BEARING, COVER Part #: 3D8-15381-00-00 Required per assembly: 2 $20.98 $16.90 - + Add to cart
30	SCREW, COUNTERSUNK Part #: 90151-06023-00 Required per assembly: 4 $9.49 $6.41 - + Add to cart
31	O-RING (50M) Part #: 93210-27672-00 Required per assembly: 1 $5.49 $4.52 - + Add to cart
32	COLLAR Part #: 90387-30010-00 Required per assembly: 1 $41.99 $33.90 - + Add to cart
33	OIL SEAL Part #: 93102-45012-00 Required per assembly: 1 $23.98 $17.63 - + Add to cart
34	PULLEY, BELT Part #: 5S7-17651-00-00 Required per assembly: 1 $292.99 $263.41 - + Add to cart
35	WASHER, CONICAL, SPRING Part #: 90208-22004-00 Required per assembly: 1 $25.98 $20.02 - + Add to cart
36	NUT Part #: 90179-22029-00 Required per assembly: 1 $29.98 $20.88 - + Add to cart
