Headlight replacement parts for 2017 Yamaha Bolt R Spec

OEM Parts Yamaha 2017 Yamaha Bolt R Spec Headlight

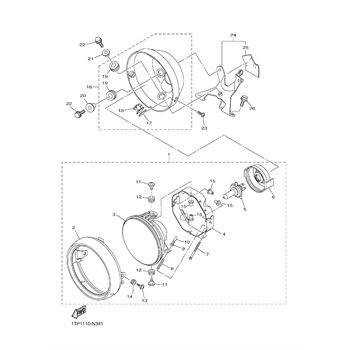

HEADLIGHT Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	HEADLIGHT UNIT ASSEMBLY Part #: 5S7-84310-00-00 Required per assembly: 1 $505.99 $456.68 - + Add to cart
2	RIM, HEADLIGHT Part #: 5S7-84315-00-00 Required per assembly: 1 $103.98 $89.48 - + Add to cart
3	LENS ASSEMBLY Part #: 5PX-84320-00-00 Required per assembly: 1 $201.99 $181.03 - + Add to cart
4	STAY, HEADLIGHT, 1 Part #: 5PX-84318-00-00 Required per assembly: 1 $73.98 $60.51 - + Add to cart
5	BULB, HEADLIGHT, (12V-60/55W) Part #: 8V0-84314-10-00 Required per assembly: 1 $75.98 $71.97 - + Add to cart
6	COVER, SOCKET Part #: 5PX-84397-00-00 Required per assembly: 1 $43.99 $33.45 - + Add to cart
7	SCREW, RIM, ADJUSTING Part #: 5PX-84331-00-00 Required per assembly: 2 $8.49 $6.27 - + Add to cart
8	SPRING, SCREW Part #: 5PX-84332-00-00 Required per assembly: 2 $7.49 $6.27 - + Add to cart
9	NUT, ADJUSTING Part #: 5PX-84334-00-00 Required per assembly: 2 $7.49 $6.27 - + Add to cart
10	CAP, 1 Part #: 5PX-84385-00-00 Required per assembly: 2 $7.49 $6.27 - + Add to cart
11	SCREW, RIM, FITTING Part #: 5PX-84325-00-00 Required per assembly: 2 $8.49 $6.31 - + Add to cart
12	GROMMET Part #: 5PX-84354-00-00 Required per assembly: 2 $7.49 $4.81 - + Add to cart
13	SCREW, RIM, FITTING Part #: 5PX-84125-00-00 Required per assembly: 2 $8.49 $6.31 - + Add to cart
14	GROMMET Part #: 5PX-84352-00-00 Required per assembly: 2 $7.49 $6.27 - + Add to cart
15	NUT Part #: 5PX-84317-00-00 Required per assembly: 4 $11.99 $10.01 - + Add to cart
16	BODY ASSEMBLY Part #: 1TP-84330-00-00 Required per assembly: 1 $72.98 $60.90 - + Add to cart
17	SEAL 1 Part #: 1TP-28428-00-00 Required per assembly: 1 $3.29 $2.69 - + Add to cart
18	CLAMP Part #: 90464-09009-00 Required per assembly: 1 $8.49 $5.99 - + Add to cart
19	DAMPER, HEADLIGHT, 1 Part #: 4WM-84366-00-00 Required per assembly: 3 $14.49 $9.45 - + Add to cart
20	COLLAR (36Y) Part #: 90387-067K8-00 Required per assembly: 2 $8.49 $5.10 - + Add to cart
21	COLLAR Part #: 90387-06040-00 Required per assembly: 1 $12.49 $8.69 - + Add to cart
22	BOLT, FLANGE Part #: 95022-06020-00 Required per assembly: 3 $3.89 $3.27 - + Add to cart
23	SCREW, BIND Part #: 98907-05014-00 Required per assembly: 2 $9.49 $6.41 - + Add to cart
24	HEAD LIGHT STAY ASSEMBLY Part #: 1TP-8411A-00-00 Required per assembly: 1 $56.99 $47.49 - + Add to cart
25	DAMPER, HEADLIGHT, STAY Part #: 1TP-84136-00-00 Required per assembly: 1 $10.99 $8.33 - + Add to cart
26	BOLT, FLANGE Part #: 95027-08035-00 Required per assembly: 2 $9.49 $6.05 - + Add to cart
