Oil Tank replacement parts for 2017 Yamaha YFM70RSSHB

OEM Parts Yamaha 2017 Yamaha YFM70RSSHB Oil Tank

OIL TANK Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	TANK, RECOVERY Part #: 1PE-F1871-00-00 Required per assembly: 1 $44.99 $35.02 - + Add to cart
2	CAP Part #: 1S3-21875-00-00 Required per assembly: 1 $10.99 $8.95 - + Add to cart

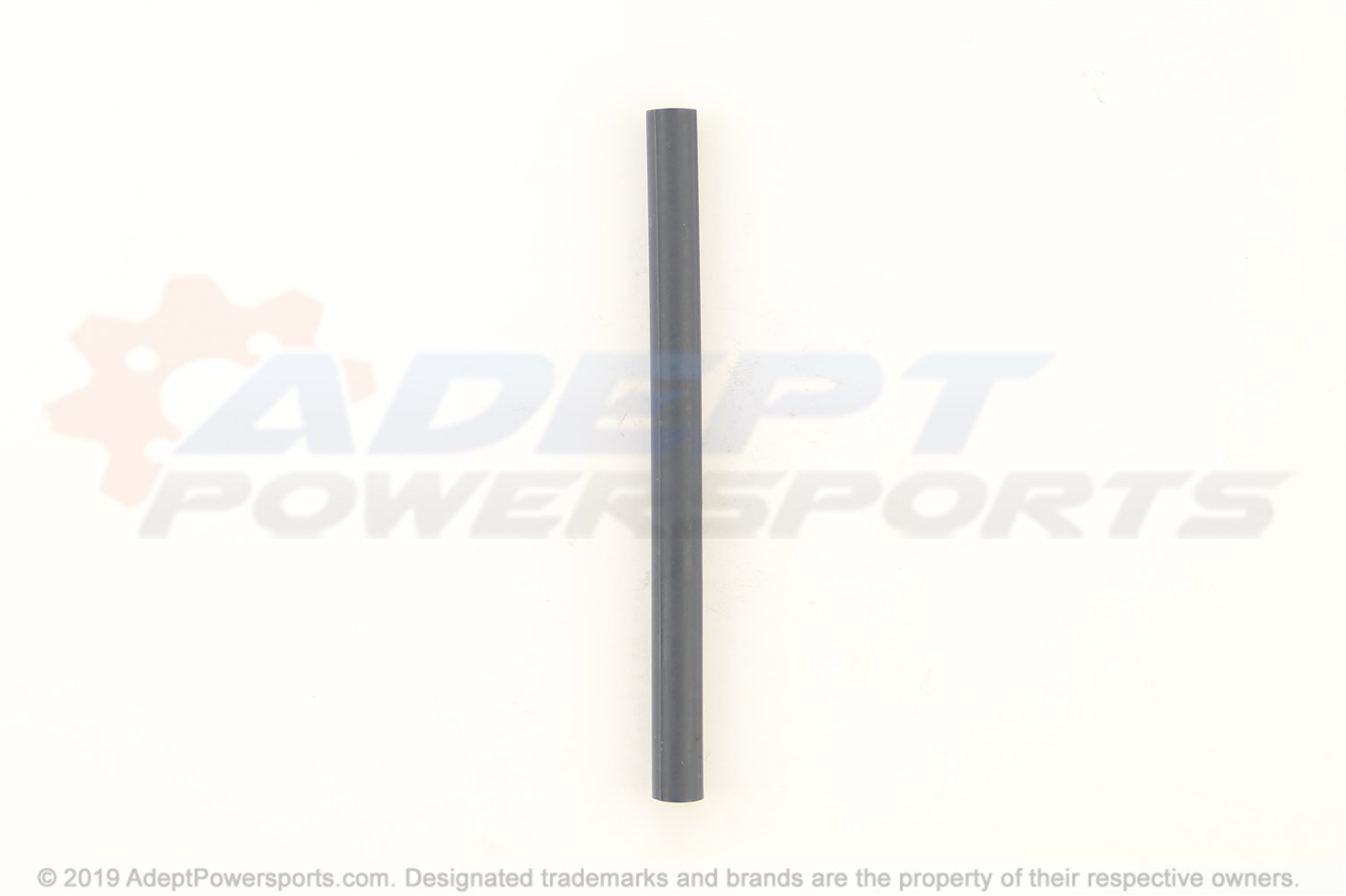

3	HOSE (L630) Part #: 90445-09021-00 Required per assembly: 1 $39.99 $31.07 - + Add to cart
4	HOSE (L420) Part #: 90445-092K1-00 Required per assembly: 1 $12.49 $10.45 - + Add to cart
5	BOLT, WITH, WASHER Part #: 90119-06152-00 Required per assembly: 2 $3.54 $2.69 - + Add to cart
6	CLIP, SCISSOR Part #: 90467-08003-00 Required per assembly: 3 $10.49 $6.19 - + Add to cart
7	CLAMP Part #: 90464-25267-00 Required per assembly: 2 $7.49 $4.68 - + Add to cart
8	OIL TANK ASSEMBLY Part #: 1S3-21750-10-00 Required per assembly: 1 $509.99 $460.49 - + Add to cart
9	GAUGE, LEVEL Part #: 5LP-21761-01-00 Required per assembly: 1 $12.99 $8.75 - + Add to cart
10	O-RING Part #: 93210-21190-00 Required per assembly: 1 $8.49 $5.65 - + Add to cart
11	BOLT, FLANGE, (JN5) Part #: 95817-08016-00 Required per assembly: 1 $5.49 $4.05 - + Add to cart
12	WASHER, PLATE Part #: 90201-082A6-00 Required per assembly: 1 $3.60 $3.01 - + Add to cart
13	GROMMET(1VJ) Part #: 90480-13459-00 Required per assembly: 2 $2.50 $1.66 - + Add to cart
14	COLLAR Part #: 90387-06205-00 Required per assembly: 2 $8.49 $5.16 - + Add to cart
15	BOLT, FLANGE Part #: 95817-06020-00 Required per assembly: 2 $3.50 $2.65 - + Add to cart
16	GROMMET Part #: 90480-24004-00 Required per assembly: 1 $5.49 $3.52 - + Add to cart
17	CLIP Part #: 90467-100A1-00 Required per assembly: 2 $8.49 $6.27 - + Add to cart
18	HOSE (L147) Part #: 90445-11034-00 Required per assembly: 1 $9.49 $7.42 - + Add to cart
19	HOSE, OIL, 2 Part #: 2LS-13465-10-00 Required per assembly: 1 $111.98 $95.63 - + Add to cart
20	O-RING Part #: 93210-10197-00 Required per assembly: 1 $8.49 $5.76 - + Add to cart
21	BOLT, FLANGE Part #: 95022-06016-00 Required per assembly: 1 $3.89 $3.27 - + Add to cart
22	HOSE CLAMP ASSEMBLY (64X) Part #: 90450-22M14-00 Required per assembly: 1 $17.48 $14.35 - + Add to cart
23	HOSE, OIL, 1 Part #: 1S3-13464-11-00 Required per assembly: 1 $159.99 $137.59 - + Add to cart
24	O-RING (26H) Part #: 93210-16629-00 Required per assembly: 1 Note: Sold in multiples of 5 only $8.49 $5.76 - + Add to cart
25	BOLT, HEXAGON, SOCKET, HEAD Part #: 91312-06016-00 Required per assembly: 2 $6.49 $4.81 - + Add to cart
