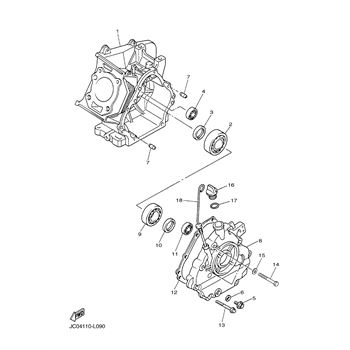

2017 Yamaha YTF1A17ADV - Crankcase

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

CRANKCASE 1

Part #: JC0-15111-02-00 Required per assembly: 1
$693.54
$645.49
-
+
Add to cart
2

BEARING

Part #: 93306-30709-00 Required per assembly: 1
$56.99
$49.94
-
+
Add to cart
3

OIL SEAL

Part #: 93102-35014-00 Required per assembly: 1
$19.94
$18.13
-
+
Add to cart
4

BEARING

Part #: 93306-20211-00 Required per assembly: 1
$28.98
$21.67
-
+
Add to cart
5

PLUG, STRAIGHT, SCREW

Part #: 90340-12097-00 Required per assembly: 1 Note: Sold in multiples of 5 only
$3.35
$2.77
-
+
Add to cart
6

GASKET

Part #: 812-11198-00-00 Required per assembly: 1
$7.49
$6.35
-
+
Add to cart
7

PIN, DOWEL, (3XW)

Part #: 91808-16023-00 Required per assembly: 2
$8.49
$5.54
-
+
Add to cart
8

COVER, CRANKCASE, 1

Part #: JN6-15411-02-00 Required per assembly: 1
$397.49
$361.35
-
+
Add to cart
9

BEARING

Part #: 93306-20716-00 Required per assembly: 1
$90.98
$74.89
-
+
Add to cart
10

OIL SEAL

Part #: 93102-35014-00 Required per assembly: 1
$19.94
$18.13
-
+
Add to cart
11

BEARING

Part #: 93306-20211-00 Required per assembly: 1
$28.98
$21.67
-
+
Add to cart
12

GASKET, CRANKCASE, COVER, 1

Part #: JY2-15451-00-00 Required per assembly: 1
$19.11
$17.37
-
+
Add to cart
13

BOLT, FLANGE

Part #: 95814-08045-00 Required per assembly: 6
$4.75
$3.87
-
+
Add to cart
14

BOLT, HEXAGON

Part #: 97017-10050-00 Required per assembly: 2
Not Available
15

WASHER, PLATE

Part #: 90201-10057-00 Required per assembly: 2
$8.49
$5.50
-
+
Add to cart
16

PLUG, OIL

Part #: 796-15363-01-00 Required per assembly: 1
$8.49
$5.44
-
+
Add to cart
17

O-RING

Part #: 93210-22344-00 Required per assembly: 1
$9.49
$6.55
-
+
Add to cart
18

GAUGE, LEVEL

Part #: J38-15361-00-00 Required per assembly: 1
$25.76
$23.42
-
+
Add to cart
