Radiator replacement parts for 2018 Honda CTX700D

OEM Parts Honda 2018 Honda CTX700D Radiator

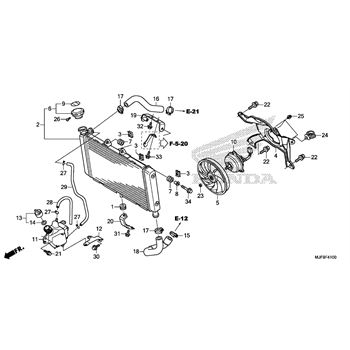

RADIATOR Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

F 41
001	RUBBER, CUSHION Part #: 17622-GB7-900 Required per assembly: 1 $5.74 $5.15 - + Add to cart
002	RADIATOR Part #: 19010-MJF-A01 Required per assembly: 1 $963.40 $787.52 - + Add to cart
003	NUT, SETTING Part #: 19014-KEA-003 Required per assembly: 3 $4.42 $4.02 - + Add to cart
004	SHROUD Part #: 19016-MJF-A01 Required per assembly: 1 $89.62 $72.54 - + Add to cart
005	FAN, COOLING Part #: 19020-MGS-D31 Required per assembly: 1 $45.99 $38.34 - + Add to cart
006	CAP, RADIATOR Part #: 19045-MY3-621 Required per assembly: 1 $46.87 $39.09 - + Add to cart
007	RUBBER Part #: 19051-MGS-D30 Required per assembly: 2 $2.81 $2.61 - + Add to cart
008	COLLAR Part #: 19052-MGH-640 Required per assembly: 1 $3.51 $3.19 - + Add to cart
009	SEAL, RADIATOR, CAP Part #: 19055-MV9-881 Required per assembly: 1 $10.69 $9.16 - + Add to cart
010	MOTOR, ASSEMBLY, FAN Part #: 19080-MGS-D31 Required per assembly: 1 $235.94 $196.72 - + Add to cart
011	TK, RADIETER, RESERVE Part #: 19101-MGS-D30 Required per assembly: 1 $42.45 $34.37 - + Add to cart
012	STAY, RESERVE, TANK Part #: 19104-MGS-D70 Required per assembly: 1 $7.34 $6.69 - + Add to cart
013	CAP, RESERVE, TANK Part #: 19106-GET-000 Required per assembly: 1 $8.29 $7.21 - + Add to cart
014	GASKET, RESERVE, TANK Part #: 19107-GET-000 Required per assembly: 1 $5.10 $4.64 - + Add to cart
015	CLAMP (35MM) Part #: 19504-MGP-000 Required per assembly: 1 $10.30 $8.82 - + Add to cart
016	HOSE, RADIATOR Part #: 19505-MGS-D30 Required per assembly: 1 $16.81 $13.62 - + Add to cart
017	CLAMP, WATER, HOSE Part #: 19505-ML3-770 Required per assembly: 3 $8.51 $7.39 - + Add to cart
018	HOSE, RADIATOR Part #: 19506-MGS-D30 Required per assembly: 1 $24.97 $20.21 - + Add to cart
019	STAY, RADIATOR Part #: 19515-MGS-D30 Required per assembly: 1 $8.85 $7.87 - + Add to cart
020	STAY NH303M (MAT AXIS GRAY METALLIC) Part #: 19516-MGS-D30ZA Required per assembly: 1 $10.50 $9.35 - + Add to cart
021	BOLT, FLANGE, (6MM) Part #: 90111-162-000 Required per assembly: 1 $3.91 $3.55 - + Add to cart
022	BOLT-WASHER (6X12) Part #: 90120-GHB-601 Required per assembly: 3 $2.96 $2.75 - + Add to cart
023	NUT, FLANGE, (3MM) Part #: 90315-MFL-003 Required per assembly: 1 $3.29 $3.06 - + Add to cart
024	HARNESS CLIP Part #: 90683-MGC-920 Required per assembly: 1 $3.76 - + Add to cart
025	SCREW-WASHER (4X6) Part #: 93891-04006-07 Required per assembly: 3 $1.96 $1.81 - + Add to cart
026	SCREW, TAPPING, (3X8) Part #: 93901-22180 Required per assembly: 1 $1.95 $1.80 - + Add to cart
027	CLIP, TUBE, (B10) Part #: 95002-02100 Required per assembly: 3 $2.88 $2.68 - + Add to cart
028	BULK HOSE (5.5X3000) Part #: 95005-55003-20M Required per assembly: 1 $39.52 $35.95 - + Add to cart
029	BULK HOSE (5.5X3000) Part #: 95005-55003-20M Required per assembly: 1 $39.52 $35.95 - + Add to cart
030	BOLT, FLANGE, (6X14) Part #: 95701-06014-00 Required per assembly: 1 $2.04 $1.88 - + Add to cart
031	BOLT, FLANGE, (6X14) Part #: 95701-06014-02 Required per assembly: 1 $2.17 $2.00 - + Add to cart
032	BOLT, FLANGE, (6X14) Part #: 95701-06014-08 Required per assembly: 1 $2.63 $2.44 - + Add to cart
033	BOLT, FLANGE, (6X18) Part #: 95701-06018-08 Required per assembly: 1 $2.63 $2.44 - + Add to cart
034	BOLT, FLANGE, (6X25) Part #: 95701-06025-08 Required per assembly: 1 $2.79 $2.60 - + Add to cart
