Seat Bottom Cover replacement parts for 2018 Honda SXS1000M3

OEM Parts Honda 2018 Honda SXS1000M3 Seat Bottom Cover

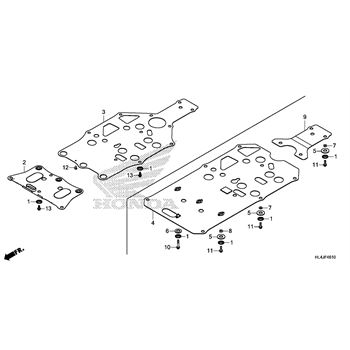

SEAT BOTTOM COVER Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

F 31
001	RUBBER, RR., BATTERY Part #: 50383-HC4-750 Required per assembly: 4 ~~$7.94~~ $6.92 - + Add to cart
002	FENDER, CENTER Part #: 71131-HL4-AK1 Required per assembly: 1 $513.95 - + Add to cart
003	COVER, RR., CENTER Part #: 76500-HL4-MA0 Required per assembly: 1 ~~$294.85~~ $281.03 - + Add to cart
004	MAT, CENTER, COVER Part #: 76502-HL4-MA0 Required per assembly: 2 ~~$11.78~~ $9.90 - + Add to cart
005	RUBBER, SEAT, BELT Part #: 76503-HL4-A00 Required per assembly: 2 $3.32 - + Add to cart
006	RUBBER, A, RR., COVER Part #: 76506-HL4-F01 Required per assembly: 3 ~~$10.73~~ $9.06 - + Add to cart
007	RUBBER, B, RR., COVER Part #: 76507-HL4-MA1 Required per assembly: 1 ~~$9.67~~ $8.65 - + Add to cart
008	PAD, CENTER, COVER Part #: 76508-HL4-MA0 Required per assembly: 1 ~~$147.41~~ $122.92 - + Add to cart
009	SEAL, RR., CENTER, COVER Part #: 76509-HL4-MA0 Required per assembly: 1 ~~$2.83~~ $2.62 - + Add to cart
010	COVER, AIR, CLEANER Part #: 76510-HL4-A00 Required per assembly: 1 $77.83 - + Add to cart
011	MAT Part #: 76512-HL4-A00 Required per assembly: 2 ~~$16.84~~ $13.78 - + Add to cart
012	RUBBER, AIR, CLEANER Part #: 76513-HL4-A00 Required per assembly: 1 $3.41 - + Add to cart
013	RUBBER, SEAT, (LOWER) Part #: 77111-HL4-MA0 Required per assembly: 1 ~~$14.93~~ $12.35 - + Add to cart
014	RUBBER, SEAT-BACK, (LOWER) Part #: 77121-HL4-MA0 Required per assembly: 1 ~~$49.67~~ $41.46 - + Add to cart
015	PLATE, RUBBER, SUPPORT Part #: 77122-HL4-MA0 Required per assembly: 1 $3.54 - + Add to cart
016	RUBBER, R., SEAT, BELT Part #: 77123-HL4-MA0 Required per assembly: 1 $4.31 - + Add to cart
017	RUBBER, L., SEAT, BELT Part #: 77124-HL4-MA0 Required per assembly: 1 $4.31 - + Add to cart
018	RUBBER, R., SEAT, (LOWER) Part #: 77130-HL4-MA0 Required per assembly: 1 ~~$21.44~~ $17.79 - + Add to cart
019	GROMMET, SIDE, COVER Part #: 83551-MA6-000 Required per assembly: 1 ~~$4.68~~ $4.25 - + Add to cart
020	SCREW, PAN, (6X14) Part #: 90106-KBV-000 Required per assembly: 2 ~~$5.28~~ $4.80 - + Add to cart
021	CLIP, SPLASH, GUARD, (EACH) Part #: 90653-HC4-900 Required per assembly: 47 ~~$1.67~~ $1.52 - + Add to cart
022	CLIP, COWL, TOP Part #: 91505-SL0-003 Required per assembly: 4 ~~$3.69~~ $3.35 - + Add to cart
023	WASHER, PLAIN, (8MM) Part #: 94101-08800 Required per assembly: 2 ~~$2.92~~ $2.71 - + Add to cart
