2018 Honda TRX250TM FourTrax Recon - Headlight

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
F 01
001

HEADLIGHT, UNIT, R.

Part #: 33110-HM8-B00 Required per assembly: 1
$144.40
$120.96
002

SOCKET, HEADLIGHT

Part #: 33130-HM8-B00 Required per assembly: 1
$50.05
$39.92
003

HEADLIGHT, UNIT, L.

Part #: 33160-HM8-B00 Required per assembly: 1
$122.18
$115.16
004

BULB (12V 30/30W)

Part #: 34901-HP0-A01 Required per assembly: 2
$40.67
$32.44
005

RUBBER

Part #: 80219-HC4-000 Required per assembly: 4
$4.43
$4.03
006

GROMMET A

Part #: 83601-MB0-000 Required per assembly: 2
$5.44
$4.89
007

CLIP (4X60)

Part #: 91410-KT7-000 Required per assembly: 1
$5.50
$4.95
008

SCREW, TAP, (5X12)

Part #: 93903-25220 Required per assembly: 1
$1.83
$1.66

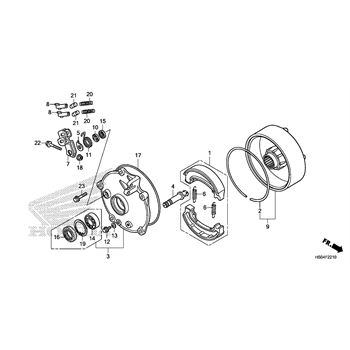

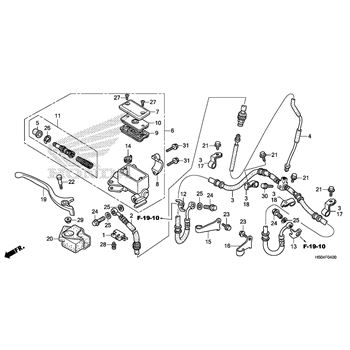

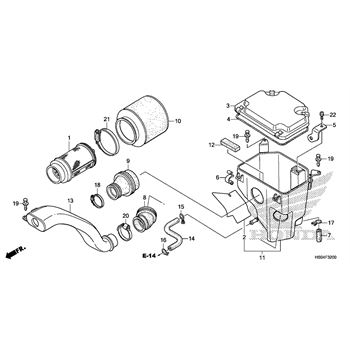

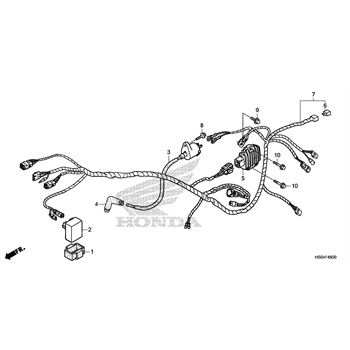

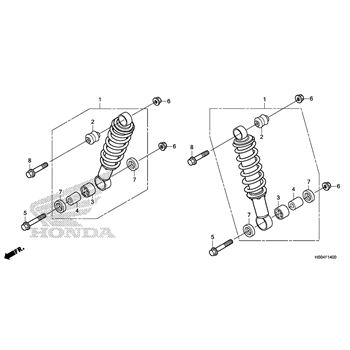

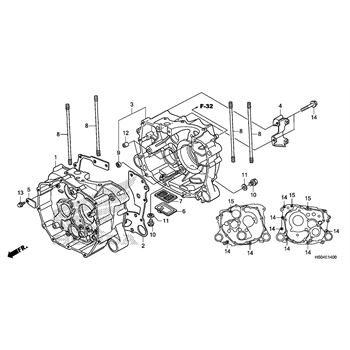

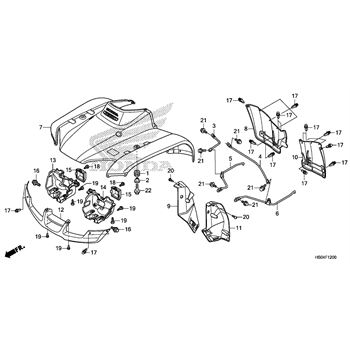

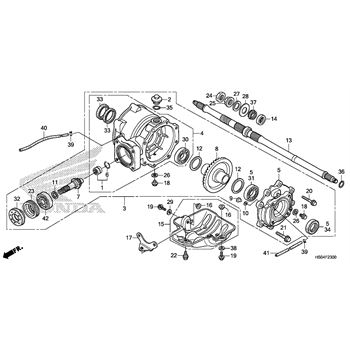

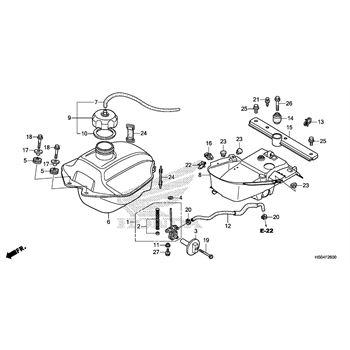

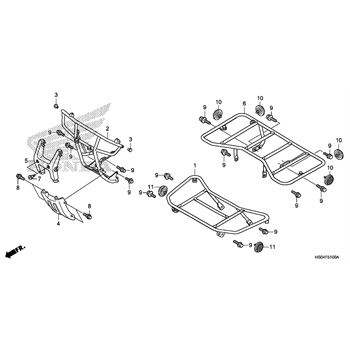

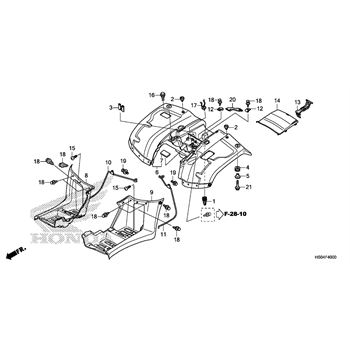

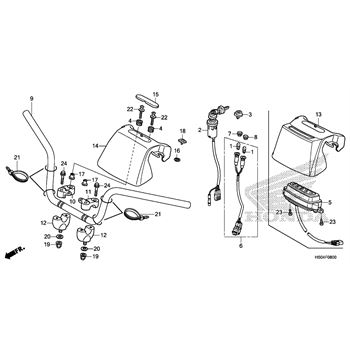

Other assembly diagrams for this model
