OEM Parts Honda 2018 Honda TRX420FE1 Crankshaft - Piston

2018 Honda TRX420FE1 FourTrax Rancher 4x4 ES - Crankshaft - Piston

CRANKSHAFT - PISTON Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
E 15
001

CRANKSHAFT

Part #: 13000-HR5-CC0 Required per assembly: 1
$758.68
$647.50
-
+
Add to cart
003

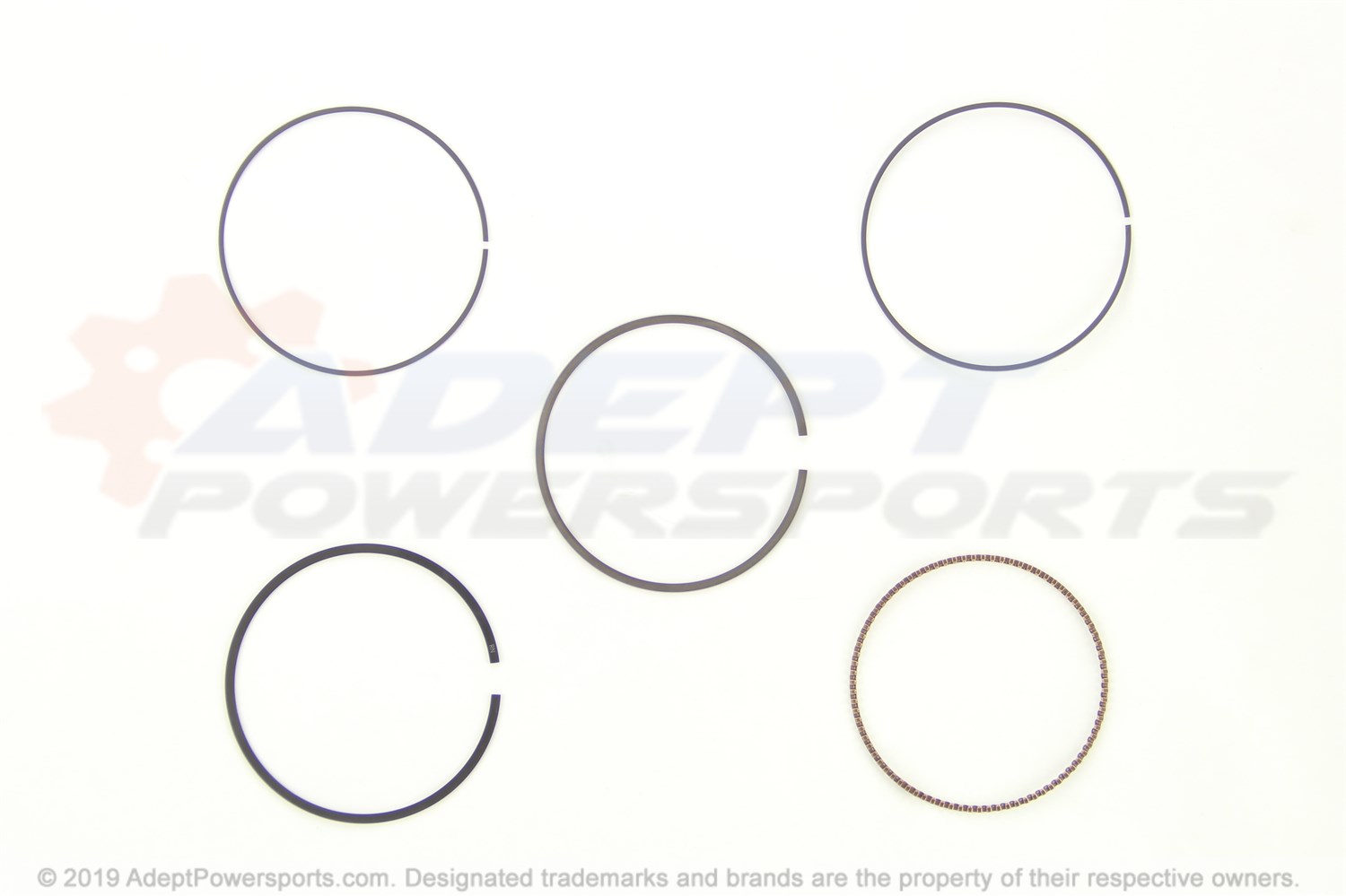

RING SET (STD)

Part #: 13010-HP5-600 Required per assembly: 1
$49.13
$47.65
-
+
Add to cart
003

RING SET (0.25)

Part #: 13011-HP5-600 Required per assembly: -1
$114.57
$95.51
-
+
Add to cart
003

RING SET (0.50)

Part #: 13012-HP5-600 Required per assembly: -1
$98.49
$95.51
-
+
Add to cart
004

PISTON (0.50)

Part #: 13103-HP5-600 Required per assembly: -1
$82.40
$69.59
-
+
Add to cart
004

PISTON (STD)

Part #: 13101-HP5-600 Required per assembly: 1
$126.09
$112.64
-
+
Add to cart
004

PISTON (0.25)

Part #: 13102-HP5-600 Required per assembly: -1
$82.40
$69.59
-
+
Add to cart
005

PIN, PISTON

Part #: 13111-HP5-600 Required per assembly: 1
$22.50
$21.82
-
+
Add to cart
006

CLIP (19MM)

Part #: 13112-MAT-000 Required per assembly: 2
$3.09
$2.87
-
+
Add to cart
007

SHAFT (32T)

Part #: 13420-HP5-600 Required per assembly: 1
$274.88
$222.50
-
+
Add to cart
008

KEY (25X18)

Part #: 90741-ZE2-000 Required per assembly: 1
$3.73
-
+
Add to cart
009

BEARING, RADIAL, BALL

Part #: 91001-HM7-008 Required per assembly: 1
$56.38
$54.68
-
+
Add to cart
010

BEARING (40X85X18)

Part #: 91002-HP5-601 Required per assembly: 1
$53.09
$44.27
-
+
Add to cart
011

BEARING (6203)

Part #: 96100-62033-00 Required per assembly: 2
$11.59
$9.88
-
+
Add to cart
