Radiator replacement parts for 2018 Honda TRX500FA5

OEM Parts Honda 2018 Honda TRX500FA5 Radiator

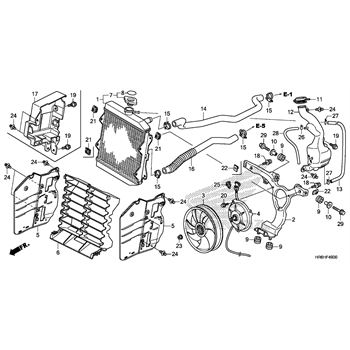

RADIATOR Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

F 49
001	RADIATOR Part #: 19010-HR3-A21 Required per assembly: 1 $232.32 - + Add to cart
002	STAY, COOLING, FAN Part #: 19015-HR3-A20 Required per assembly: 1 $32.42 - + Add to cart
003	FAN, COOLING Part #: 19020-HN2-003 Required per assembly: 1 $79.78 $66.53 - + Add to cart
004	MOTOR, ASSEMBLY, FAN Part #: 19030-HR3-A21 Required per assembly: 1 $85.21 $84.30 - + Add to cart
005	CVR, RADIATOR, GRILLE Part #: 19033-HR3-A20 Required per assembly: 2 $13.40 - + Add to cart
006	COVER Part #: 19034-HR3-A20 Required per assembly: 1 $45.58 $45.27 - + Add to cart
007	CAP, RADIATOR Part #: 19037-GEE-710 Required per assembly: 1 $35.08 $29.26 - + Add to cart
008	LABEL, RADIATOR, CAP Part #: 19046-PAA-A00 Required per assembly: 1 $4.36 $3.96 - + Add to cart
009	RUBBER Part #: 19051-KA3-830 Required per assembly: 4 $4.64 $4.22 - + Add to cart
010	COLLAR Part #: 19052-MGH-640 Required per assembly: 2 $3.51 $3.19 - + Add to cart
011	CAP, RESERVE, TANK Part #: 19104-MB0-700 Required per assembly: 1 $14.10 $11.75 - + Add to cart
012	TK, RADIATOR, RESERVE Part #: 19110-HR3-A20 Required per assembly: 1 $52.00 $44.01 - + Add to cart
013	TUBE Part #: 19111-HR3-A20 Required per assembly: 1 $15.73 $12.96 - + Add to cart
014	HOSE, WATER, (UPPER) Part #: 19501-HR3-A20 Required per assembly: 1 $11.06 $9.79 - + Add to cart
015	BAND (27MM) Part #: 19503-HN2-A60 Required per assembly: 4 $5.22 $5.17 - + Add to cart
016	HOSE, WATER, (LOWER) Part #: 19503-HR3-A70 Required per assembly: 1 $18.22 $14.91 - + Add to cart
018	BOLT-WASHER (6X15) Part #: 90107-HN8-003 Required per assembly: 2 $2.96 $2.75 - + Add to cart
019	BOLT, FLANGE, (6MM) Part #: 90111-162-000 Required per assembly: 1 $3.91 $3.55 - + Add to cart
020	BOLT, FLANGE, (5MM) Part #: 90196-MBB-003 Required per assembly: 3 $3.69 $3.35 - + Add to cart
021	NUT, CLIP, (6MM) Part #: 90201-KPR-901 Required per assembly: 2 $2.86 $2.65 - + Add to cart
022	NUT, SPECIAL, (6X7) Part #: 90303-HA0-680 Required per assembly: 1 $5.58 $5.07 - + Add to cart
023	NUT, SERRATE, (5MM) Part #: 90315-MK3-003 Required per assembly: 1 $3.29 $3.06 - + Add to cart
024	CLIP, SPLASH, GUARD, (EACH) Part #: 90653-HC4-900 Required per assembly: 8 $1.67 $1.52 - + Add to cart
025	CLIP, CONNECTOR Part #: 91535-STK-003 Required per assembly: 1 $7.36 $7.01 - + Add to cart
026	CLIP, TUBE, (B8) Part #: 95002-02080 Required per assembly: 1 $2.79 $2.60 - + Add to cart
027	CLIP, TUBE, (B10) Part #: 95002-02100 Required per assembly: 2 $2.88 $2.68 - + Add to cart
028	TUBE (5X8X230) Part #: 95003-10023-10 Required per assembly: 1 $18.38 $15.30 - + Add to cart
029	BOLT, FLANGE, (6X22) Part #: 95701-06022-08 Required per assembly: 2 $2.79 $2.60 - + Add to cart
