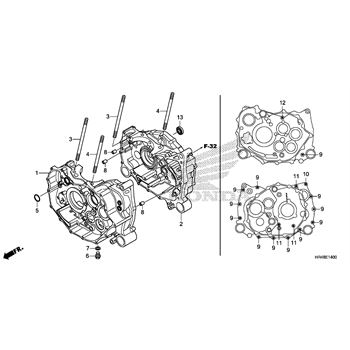

2018 Honda TRX500FE2 FourTrax Foreman 4x4 ES - Crankcase

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
E 14
001

CRANKCASE, FR.

Part #: 11100-HR0-F01 Required per assembly: 1
$430.78
$363.70
-
+
Add to cart
002

CRANKCASE, RR.

Part #: 11200-HR0-F01 Required per assembly: 1
$461.11
$388.24
-
+
Add to cart
003

BOLT, STUD, (10X177)

Part #: 90013-HR0-F00 Required per assembly: 2
$14.28
$11.57
-
+
Add to cart
004

BOLT, STUD, (10X147)

Part #: 90014-HR0-F00 Required per assembly: 2
$12.97
$10.83
-
+
Add to cart
005

O-RING (20.6X1.9)

Part #: 91304-HP5-601 Required per assembly: 1
$4.26
$3.87
-
+
Add to cart
006

BOLT, DRAIN, (12MM)

Part #: 92800-12000 Required per assembly: 1
$4.86
$4.42
-
+
Add to cart
007

WASHER, DRAIN, (12MM)

Part #: 94109-12000 Required per assembly: 1
$2.17
$1.97
-
+
Add to cart
008

PIN, DOWEL, (8X14)

Part #: 94301-08140 Required per assembly: 3
$3.21
$2.99
-
+
Add to cart
009

BOLT, FLANGE, (6X40)

Part #: 95701-06040-00 Required per assembly: 12
$2.87
$2.67
-
+
Add to cart
010

BOLT, FLANGE, (6X60)

Part #: 95701-06060-00 Required per assembly: 1
$1.41
$1.29
-
+
Add to cart
011

BOLT, FLANGE, (6X70)

Part #: 95701-06070-00 Required per assembly: 3
$3.26
$3.03
-
+
Add to cart
012

BOLT, FLANGE, (6X85)

Part #: 95701-06085-00 Required per assembly: 1
$2.72
$2.52
-
+
Add to cart
013

BEARING (6000)

Part #: 96100-60000-00 Required per assembly: 1
$9.76
$8.40
-
+
Add to cart
