Fuel Tank replacement parts for 2018 Honda TRX680FA

OEM Parts Honda 2018 Honda TRX680FA Fuel Tank

FUEL TANK Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

F 21
001	COVER, THROTTLE, BODY Part #: 16721-HN8-A60 Required per assembly: 1 $12.87 $11.50 - + Add to cart
002	JOINT, ASSEMBLY, FUEL Part #: 16958-HN8-A61 Required per assembly: 1 $12.24 $10.21 - + Add to cart
003	O-RING (11.8X3.55) Part #: 16997-467-000 Required per assembly: 1 $3.18 $2.96 - + Add to cart
004	TRAY, FUEL, TANK Part #: 17507-HN8-A60 Required per assembly: 1 $13.21 $10.70 - + Add to cart
005	RUB, TANK, MOUNTING Part #: 17508-GBF-830 Required per assembly: 2 $6.86 $6.24 - + Add to cart
006	COLLAR, TANK, SETTING Part #: 17509-KS6-700 Required per assembly: 2 $10.57 $9.07 - + Add to cart
007	TANK, FUEL Part #: 17510-HN8-B40 Required per assembly: 1 $492.47 $463.85 - + Add to cart
008	PLATE, UNIT, SET Part #: 17515-GBL-760 Required per assembly: 1 $5.41 $4.86 - + Add to cart
009	PROTECTOR, TANK, HEAT Part #: 17515-HN8-A60 Required per assembly: 1 $20.37 - + Add to cart
010	RUB, HEAT, PROTECTOR Part #: 17516-HN8-A60 Required per assembly: 1 $10.71 $9.40 - + Add to cart
011	BAND, TANK Part #: 17517-HN8-000 Required per assembly: 2 $5.60 $5.09 - + Add to cart
012	RUB, RR., (PROTECT0R) Part #: 17518-HN8-A60 Required per assembly: 1 $3.25 - + Add to cart
013	TUBE Part #: 17521-HA2-670 Required per assembly: 1 $8.40 $7.30 - + Add to cart
014	CAP, ASSEMBLY, FUEL, TANK Part #: 17620-HF7-000 Required per assembly: 1 $63.95 $53.32 - + Add to cart
015	GASKET, FUEL, CAP Part #: 17624-HF7-000 Required per assembly: 1 $9.37 $8.10 - + Add to cart
016	BRAKET, FR., FUEL, TANK Part #: 17634-KZ3-860 Required per assembly: 2 $16.67 $14.04 - + Add to cart

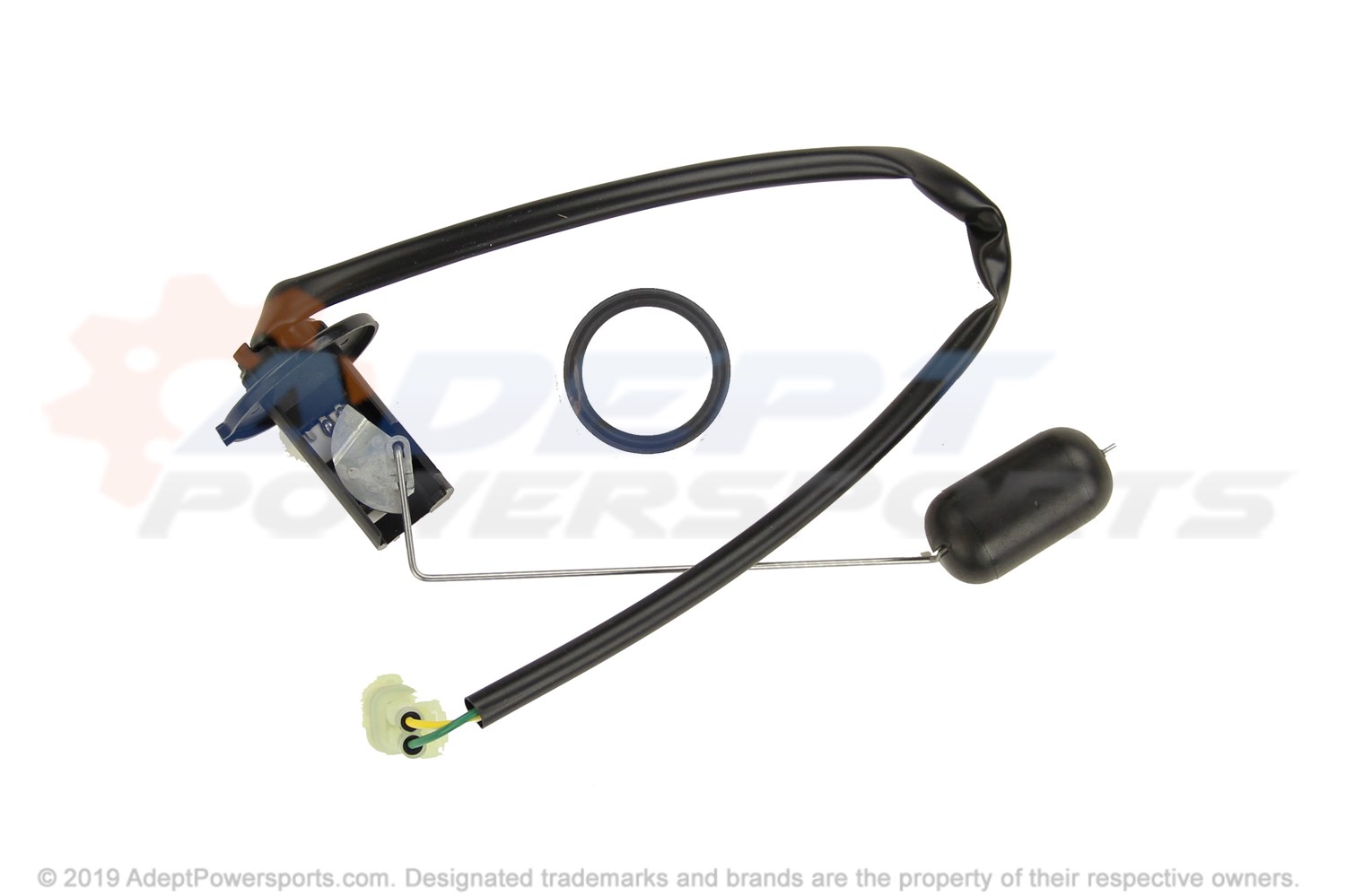

017	FUEL UNIT SET Part #: 37080-HN8-000 Required per assembly: 1 $66.64 $55.55 - + Add to cart
018	GASKET, BASE Part #: 37801-GA7-700 Required per assembly: 1 $6.22 $5.53 - + Add to cart
019	CLAMP, A, CHOKE, CABLE Part #: 50173-MAH-A00 Required per assembly: 2 $8.02 $7.07 - + Add to cart
020	RUBBER, CUSHION, PAD Part #: 64207-MAM-A00 Required per assembly: 1 $5.04 $5.02 - + Add to cart
021	COLLAR Part #: 84706-415-000 Required per assembly: 4 $3.38 $3.07 - + Add to cart
022	BOLT, FLANGE, (6X40) Part #: 90137-KA3-830 Required per assembly: 2 $3.93 $3.57 - + Add to cart
023	CLIP, SPLASH, GUARD, (EACH) Part #: 90653-HC4-900 Required per assembly: 1 $1.67 $1.52 - + Add to cart
024	CLIP, WASHER, MOUTH Part #: 91504-SD5-901 Required per assembly: 1 $5.26 $5.15 - + Add to cart
025	SCREW, TAP, (5X12) Part #: 93913-25210 Required per assembly: 2 $1.60 $1.46 - + Add to cart
026	RUBBER C Part #: 95011-63000 Required per assembly: 2 $5.28 $4.80 - + Add to cart
027	BOLT, FLANGE, (6X10) Part #: 96001-06010-00 Required per assembly: 3 $2.63 $2.44 - + Add to cart
028	BOLT, FLANGE, (6X14) Part #: 96001-06014-00 Required per assembly: 2 $2.79 $2.60 - + Add to cart
029	BOLT, FLANGE, (6X16) Part #: 96001-06016-00 Required per assembly: 4 $2.09 $1.93 - + Add to cart
