OEM Parts Kawasaki 2018 Kawasaki Teryx Engine Mount

2018 Kawasaki Teryx KRF800-FJF - Engine Mount

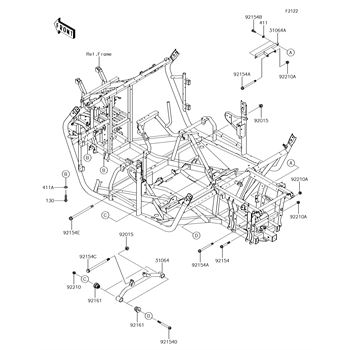

Engine Mount Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
130

BOLT-FLANGED, 10X40

Part #: 130BA1040 Required per assembly: 4
$2.09
$1.54
-
+
Add to cart
411

WASHER-PLAIN

Part #: 411AA0800 Required per assembly: 2 Note: Sold in multiples of 10 only
$1.02
$0.85
-
+
Add to cart
411A

WASHER-PLAIN, 10MM

Part #: 411AA1000 Required per assembly: 4 Note: Sold in multiples of 10 only
$1.02
$0.85
-
+
Add to cart
31064

PIPE-COMP, RR, FRAME

Part #: 31064-0621 Required per assembly: 1
$90.18
$82.44
-
+
Add to cart
31064A

PIPE-COMP, RR, GEARCASE, MOUNT

Part #: 31064-0660 Required per assembly: 1
$51.32
$46.74
-
+
Add to cart
92015

NUT, FLANGED, 12MM

Part #: 92015-1433 Required per assembly: 2
$9.10
$7.83
-
+
Add to cart
92154

BOLT, FLANGED, 10X70

Part #: 92154-0894 Required per assembly: 1
$6.14
$4.76
-
+
Add to cart
92154A

BOLT, FLANGED, 10X120

Part #: 92154-0895 Required per assembly: 2
$12.05
$10.22
-
+
Add to cart
92154B

BOLT, FLANGED, 8X20

Part #: 92154-1130 Required per assembly: 2
$3.98
$3.17
-
+
Add to cart
92154C

BOLT, FLANGED, 12X190

Part #: 92154-1131 Required per assembly: 1
$20.76
$17.39
-
+
Add to cart
92154D

BOLT, FLANGED, 10X105

Part #: 92154-1132 Required per assembly: 2
$7.83
$6.79
-
+
Add to cart
92154E

BOLT, FLANGED, 12X200

Part #: 92154-1133 Required per assembly: 1
$28.22
$23.62
-
+
Add to cart
92161

DAMPER

Part #: 92161-0423 Required per assembly: 4
$14.17
$11.90
-
+
Add to cart
92210

NUT, LOCK, FLANGED, 10MM

Part #: 92210-0276 Required per assembly: 2 Note: Sold in multiples of 5 only
$2.70
$1.95
-
+
Add to cart
92210A

NUT, LOCK, FLANGED, 10MM

Part #: 92210-1080 Required per assembly: 3
$10.56
$9.00
-
+
Add to cart
