Floor And Rocker Panels - A18daa57f5 (49Atvfloor14325) replacement parts for 2018 Polaris ACE 570 EFI Euro (R03)

OEM Parts Polaris 2018 Polaris ACE 570 EFI Euro (R03) Floor And Rocker Panels - A18daa57f5 (49Atvfloor14325)

FLOOR AND ROCKER PANELS - A18DAA57F5 (49ATVFLOOR14325) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ROCKER-LH, BLK Part #: 5451170-070 Required per assembly: 1 Currently Not Available
2	ROCKER-RH, BLK Part #: 5450069-070 Required per assembly: 1 Currently Not Available

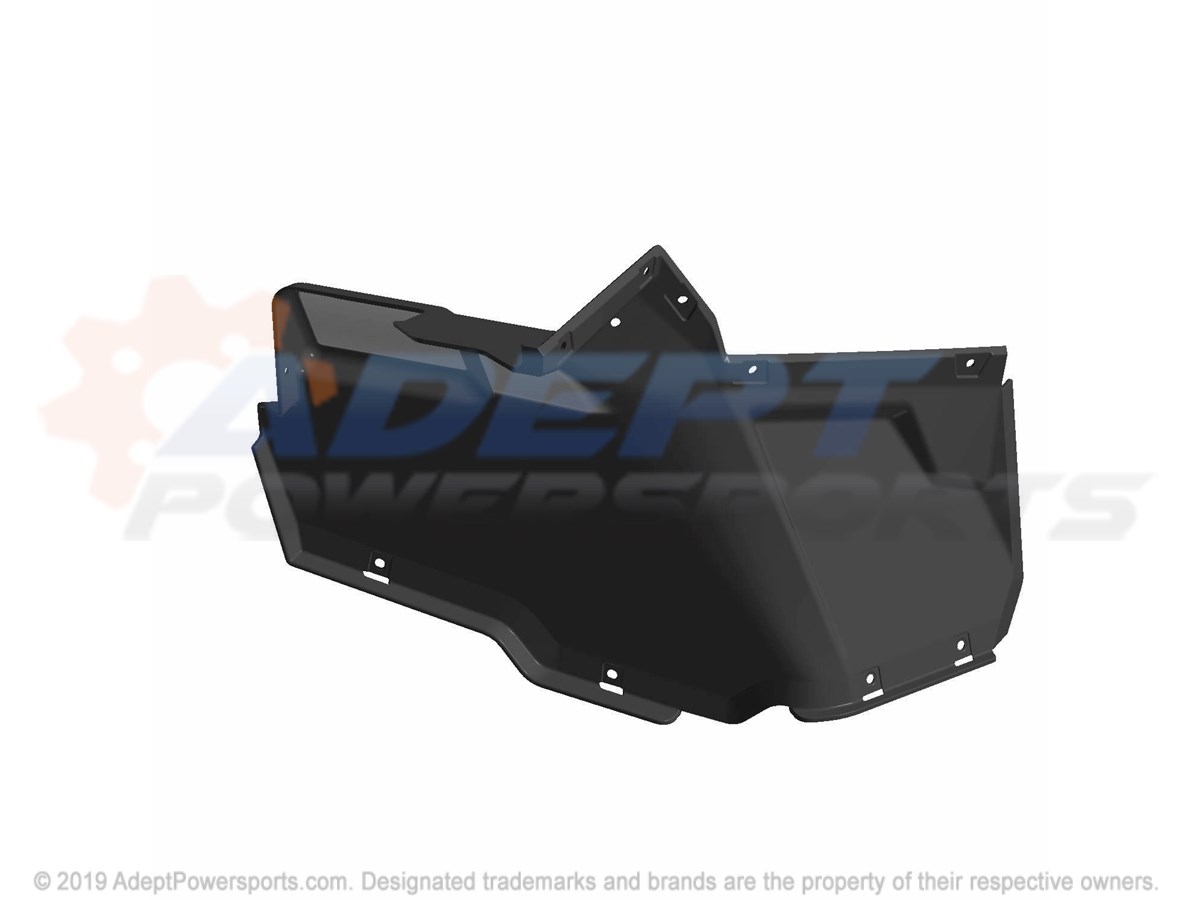

3	FLOOR-MAIN, BLK Part #: 5450071-070 Required per assembly: 1 Currently Not Available

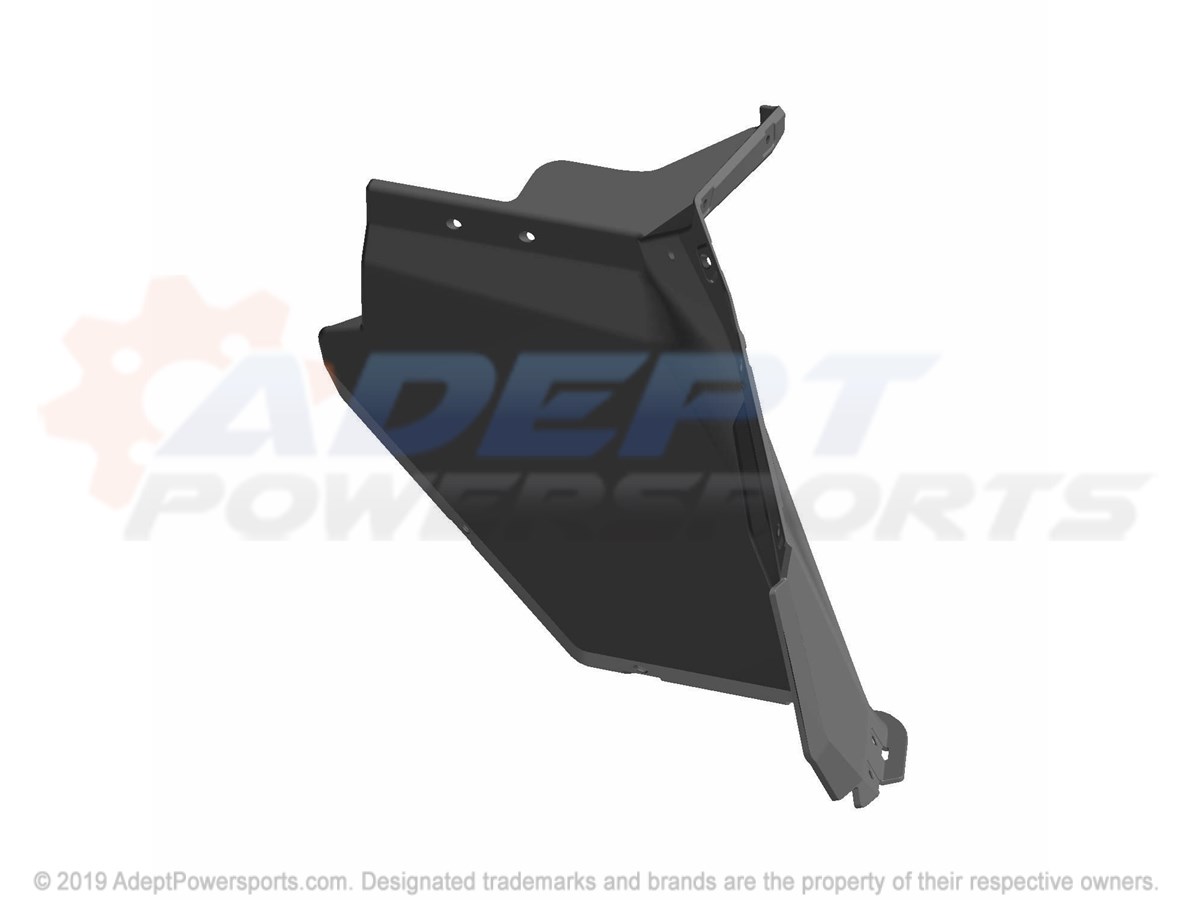

4	PANEL-FLOOR, LH, BLK Part #: 5452507-070 Required per assembly: 1 Currently Not Available
5	PANEL-FLOOR, RH, BLK Part #: 5452372-070 Required per assembly: 1 Currently Not Available
6	RIVET Part #: 7661855 Required per assembly: 31 ~~$2.99~~ $1.73 - + Add to cart
6	RIVET Part #: 7661855 Required per assembly: 31 ~~$2.99~~ $1.73 - + Add to cart
6	RIVET Part #: 7661855 Required per assembly: 31 ~~$2.99~~ $1.73 - + Add to cart
7	SCREW Part #: 7519650 Required per assembly: 19 Currently Not Available
7	SCREW Part #: 7519650 Required per assembly: 19 Currently Not Available
7	SCREW Part #: 7519650 Required per assembly: 19 Currently Not Available
7	SCREW Part #: 7519650 Required per assembly: 19 Currently Not Available
7	SCREW Part #: 7519650 Required per assembly: 19 Currently Not Available
7	SCREW Part #: 7519650 Required per assembly: 19 Currently Not Available
7	SCREW Part #: 7519650 Required per assembly: 19 Currently Not Available
7	SCREW Part #: 7519650 Required per assembly: 19 Currently Not Available
8	NUT, U-TYPE Part #: 7547674 Required per assembly: 6 ~~$2.99~~ $1.73 - + Add to cart
8	NUT, U-TYPE Part #: 7547674 Required per assembly: 6 ~~$2.99~~ $1.73 - + Add to cart
8	NUT, U-TYPE Part #: 7547674 Required per assembly: 6 ~~$2.99~~ $1.73 - + Add to cart
