Mud Guard - A18dae57n5 (C101375) replacement parts for 2018 Polaris ACE 570 EFI PS HD (R03)

OEM Parts Polaris 2018 Polaris ACE 570 EFI PS HD (R03) Mud Guard - A18dae57n5 (C101375)

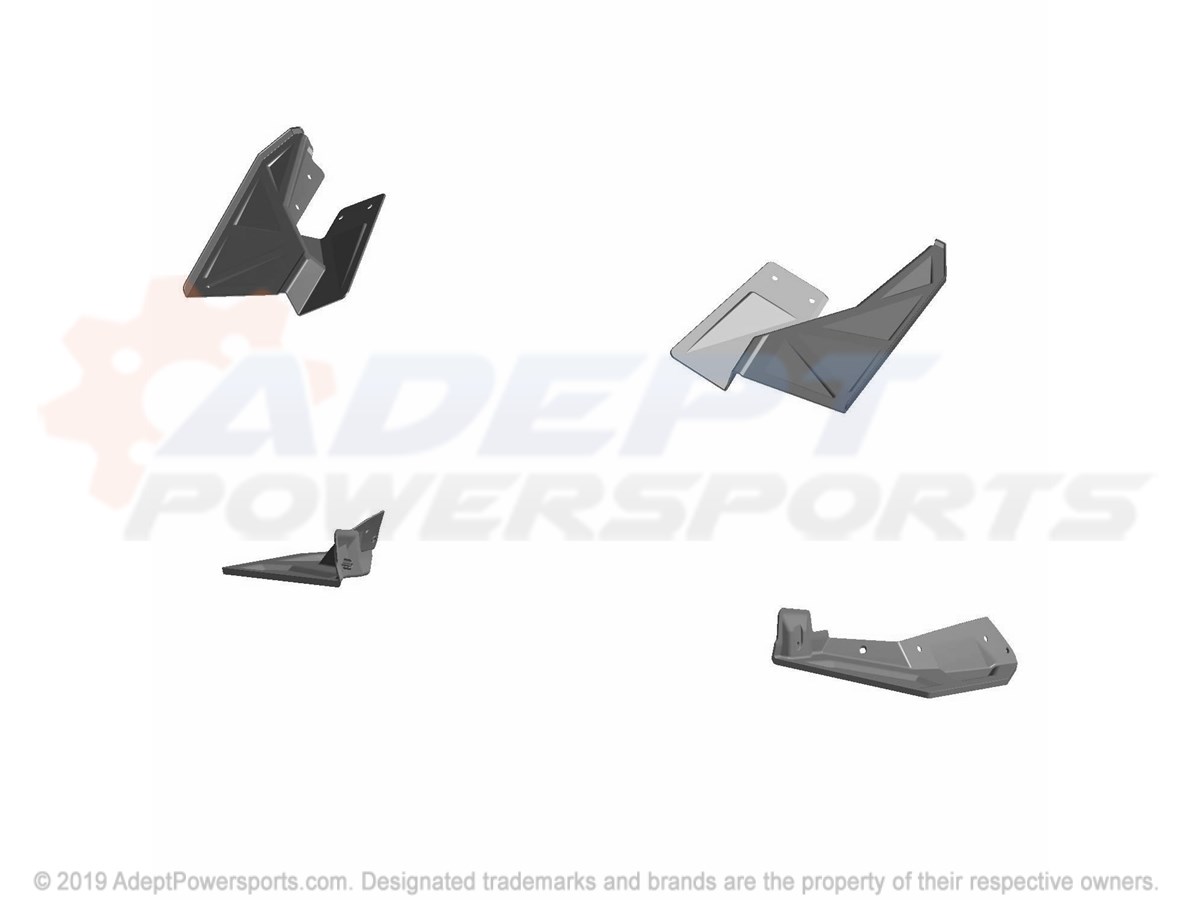

MUD GUARD - A18DAE57N5 (C101375) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	K-MUD, GUARDS, ACE Part #: 2883435 Required per assembly: 1 Note: INCL. 1-4 Currently Not Available

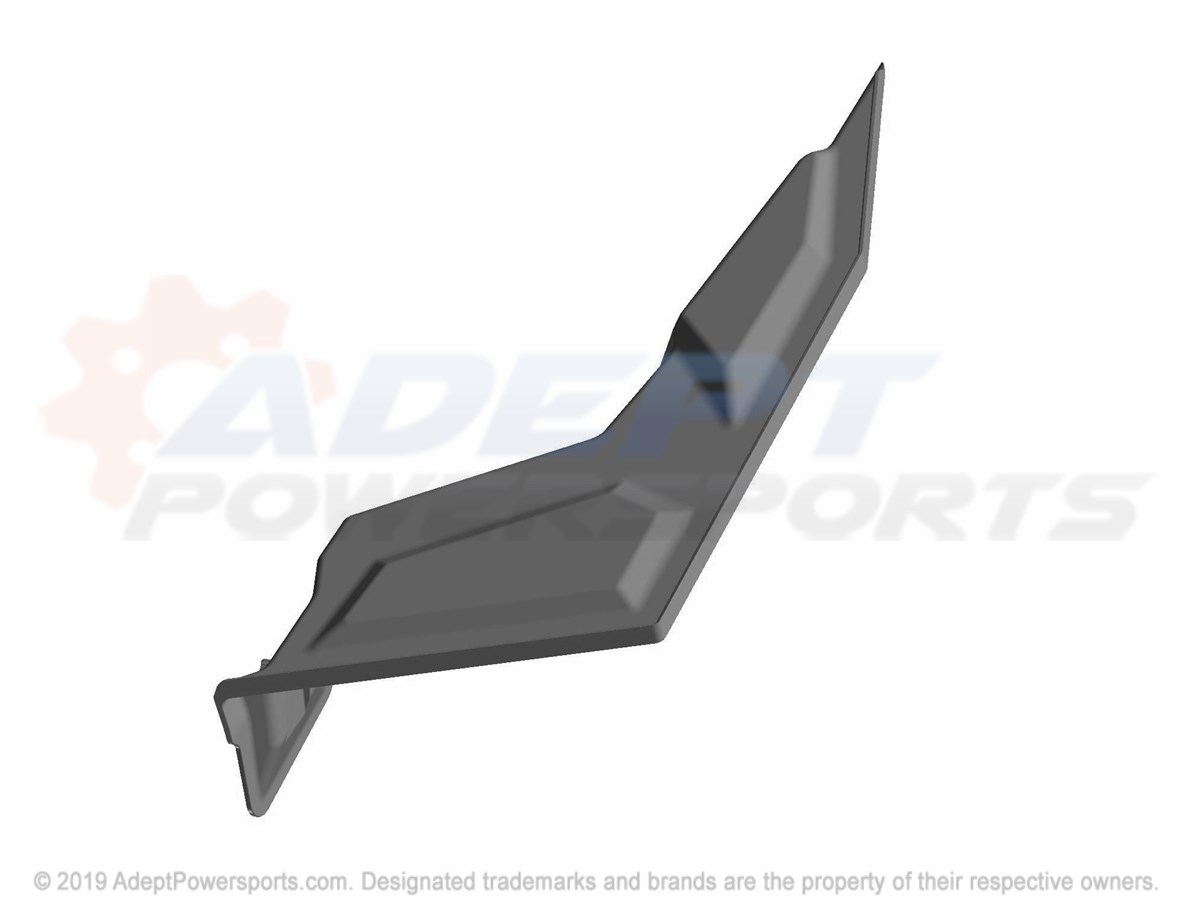

1	FENDER-FLARE, FRONT, LH, BLK Part #: 5454699-070 Required per assembly: 1 Currently Not Available

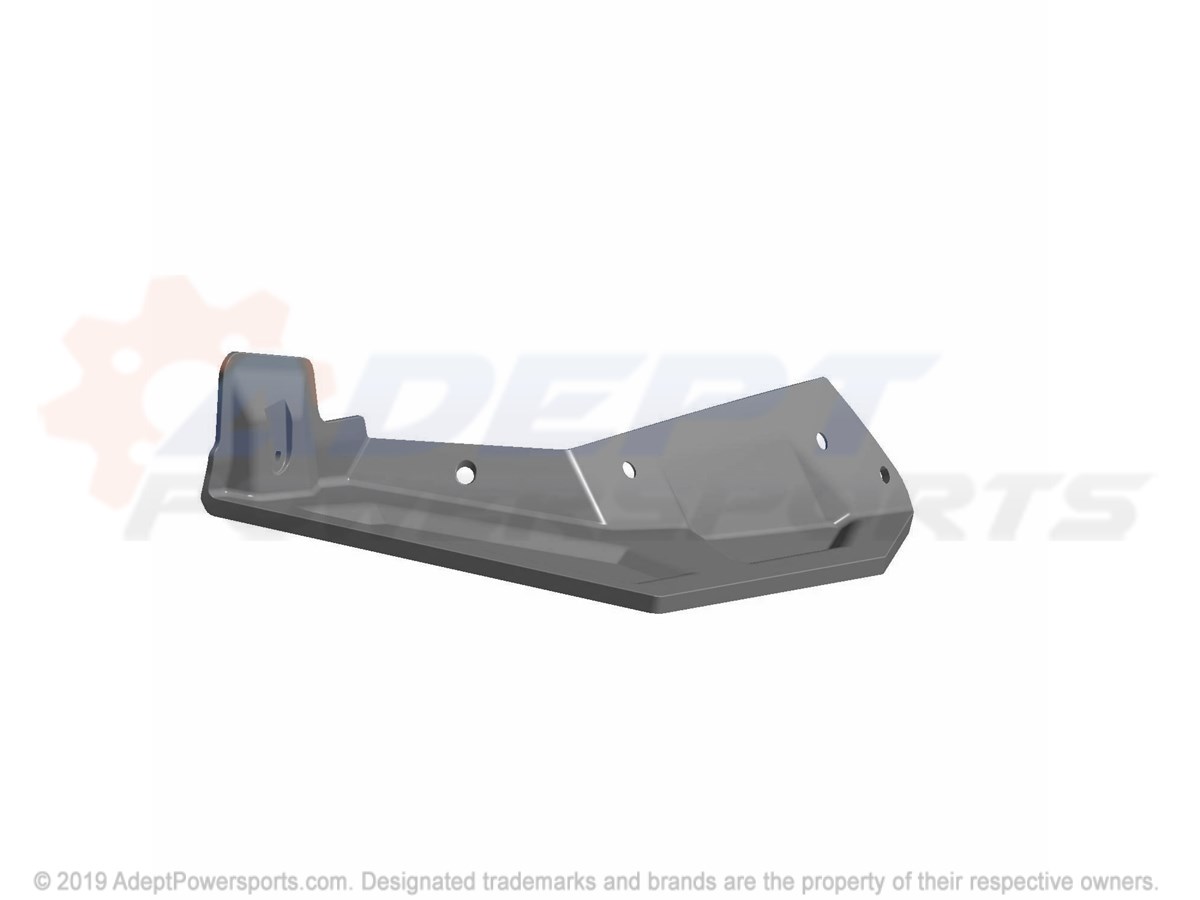

2	FENDER-FLARE, FRONT, RH, BLK Part #: 5454700-070 Required per assembly: 1 Currently Not Available

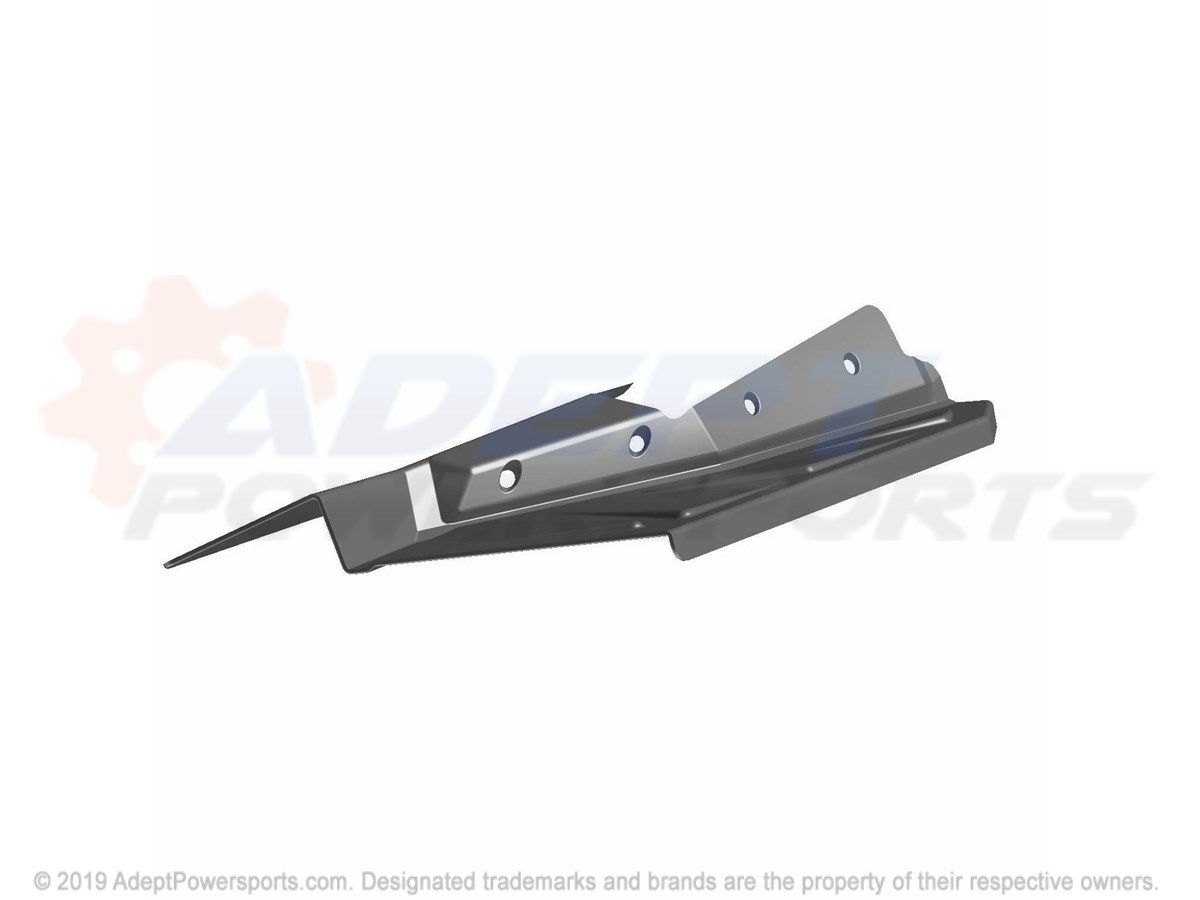

3	FENDER-FLARE, REAR, LH, BLK Part #: 5454701-070 Required per assembly: 1 Currently Not Available

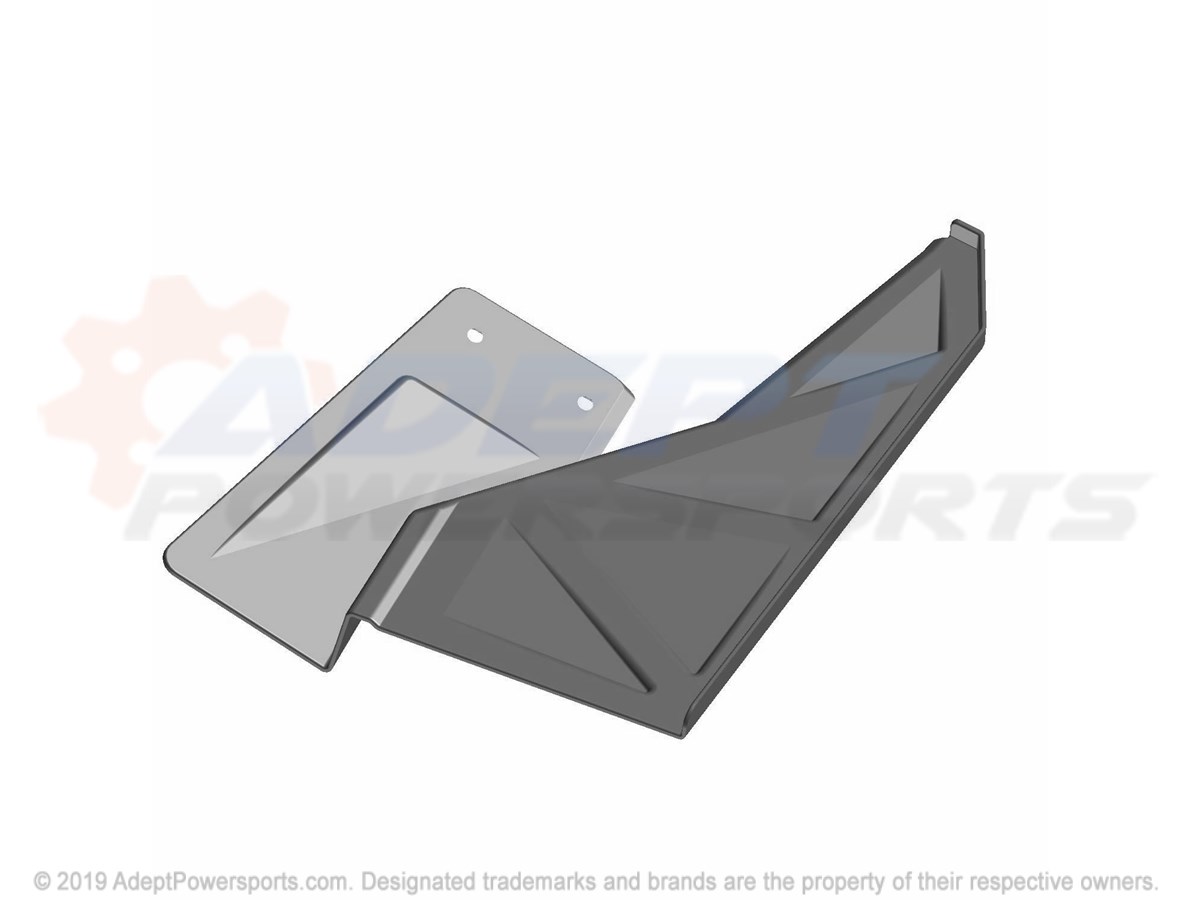

4	FENDER-FLARE, REAR, RH, BLK Part #: 5454702-070 Required per assembly: 1 Currently Not Available
5	K-HDWR, MUD, GUARDS Part #: 2207539 Required per assembly: 1 Note: INCL. 5-9 Currently Not Available
5	SCREW Part #: 7519650 Required per assembly: 2 Currently Not Available
6	SCREW Part #: 7519722 Required per assembly: 2 Currently Not Available
7	NUT, U-TYPE Part #: 7547674 Required per assembly: 2 ~~$2.99~~ $1.73 - + Add to cart
8	SHIM Part #: 7556145 Required per assembly: 12 Currently Not Available
9	RIVET Part #: 7661855 Required per assembly: 16 ~~$2.99~~ $1.73 - + Add to cart
