Seat - A18sda57b7/L7/E57b5 (100503) replacement parts for 2018 Polaris Sportsman Touring 570 EFI/EPS (R05)

OEM Parts Polaris 2018 Polaris Sportsman Touring 570 EFI/EPS (R05) Seat - A18sda57b7/L7/E57b5 (100503)

SEAT - A18SDA57B7/L7/E57B5 (100503) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

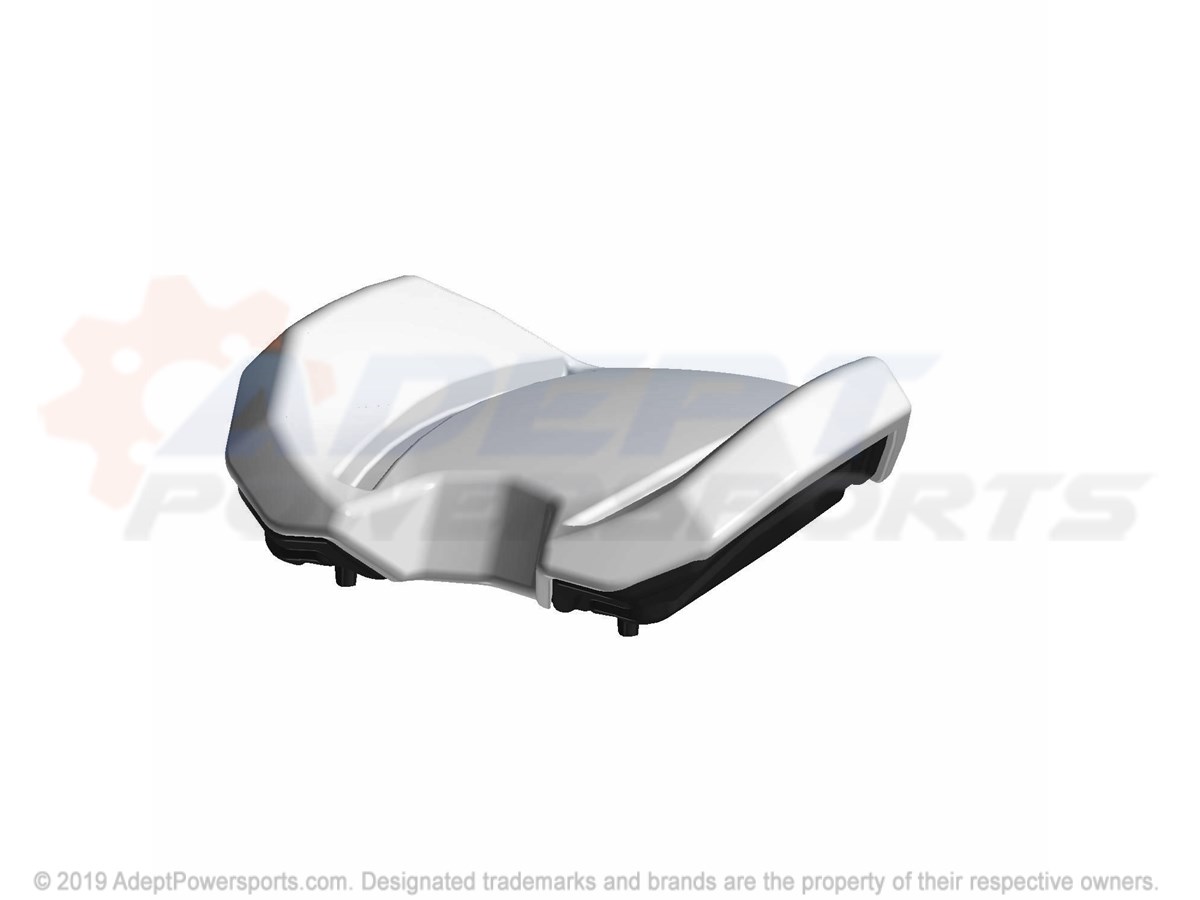

1	ASM-SEAT, OPERATOR, NYL, TOURING Part #: 2688301 Required per assembly: 1 Note: INCL. 1-3 Currently Not Available
2	BUMPER-RUBBER Part #: 5412067 Required per assembly: 4 Note: Bumper, Rubber Currently Not Available

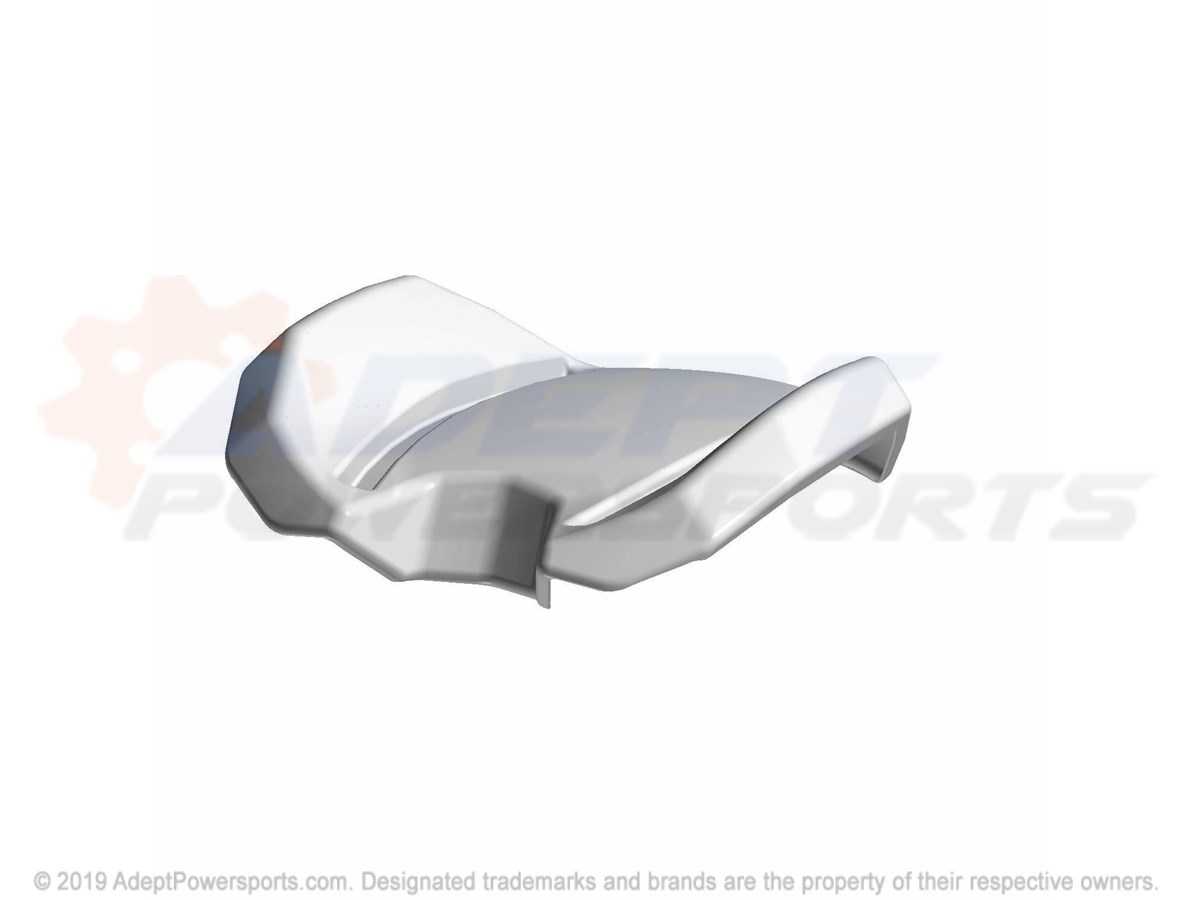

3	ASM-COVER, SEAT, TRG, WHITE, DECAL Part #: 2687958 Required per assembly: 1 Currently Not Available
4	GROMMET-SEAT LATCH Part #: 5415539 Required per assembly: 2 Currently Not Available
5	SUPPORT, SEAT, BACK, BLACK Part #: 1020037-067 Required per assembly: 1 Note: B7 Currently Not Available
5	WELD-SEAT, BACK, SUPPORT, M.BLK Part #: 1020037-458 Required per assembly: 1 Note: L7 Currently Not Available
6	ASM-SEAT, BACK, CUSHION, TOUR Part #: 2687328 Required per assembly: 1 Note: INCL. 6,7 Currently Not Available
7	ASM-SEAT, BACK, COVER, TOUR Part #: 2687329 Required per assembly: 1 Currently Not Available
8	WELD-TUBE, SEAT, BACK, TOUR, BLK Part #: 1022582-329 Required per assembly: 1 Currently Not Available
9	BUMPER-RUBBER Part #: 5412067 Required per assembly: 2 Note: Bumper, Rubber Currently Not Available
10	BOLT Part #: 7512193 Required per assembly: 4 Currently Not Available
11	SCREW Part #: 7519045 Required per assembly: 5 Currently Not Available
12	NUT Part #: 7542153 Required per assembly: 4 Note: Nut, Flanged, Nylok ~~$3.47~~ $2.30 - + Add to cart
13	COVER-SEAT, BACK, HDPE Part #: 5453291 Required per assembly: 1 Currently Not Available
14	SCREW Part #: 7518280 Required per assembly: 4 Currently Not Available
