OEM Parts Polaris 2018 Polaris Scrambler XP 1000 (R03) Rear Cab And Heat Shields - A18sve95br

2018 Polaris Scrambler XP 1000 (R03) A18SVE95BR - Rear Cab And Heat Shields - A18sve95br

REAR CAB AND HEAT SHIELDS - A18SVE95BR Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

SHIELD-HEAT, DUCT

Part #: 5259371 Required per assembly: 1
Currently Not Available
2

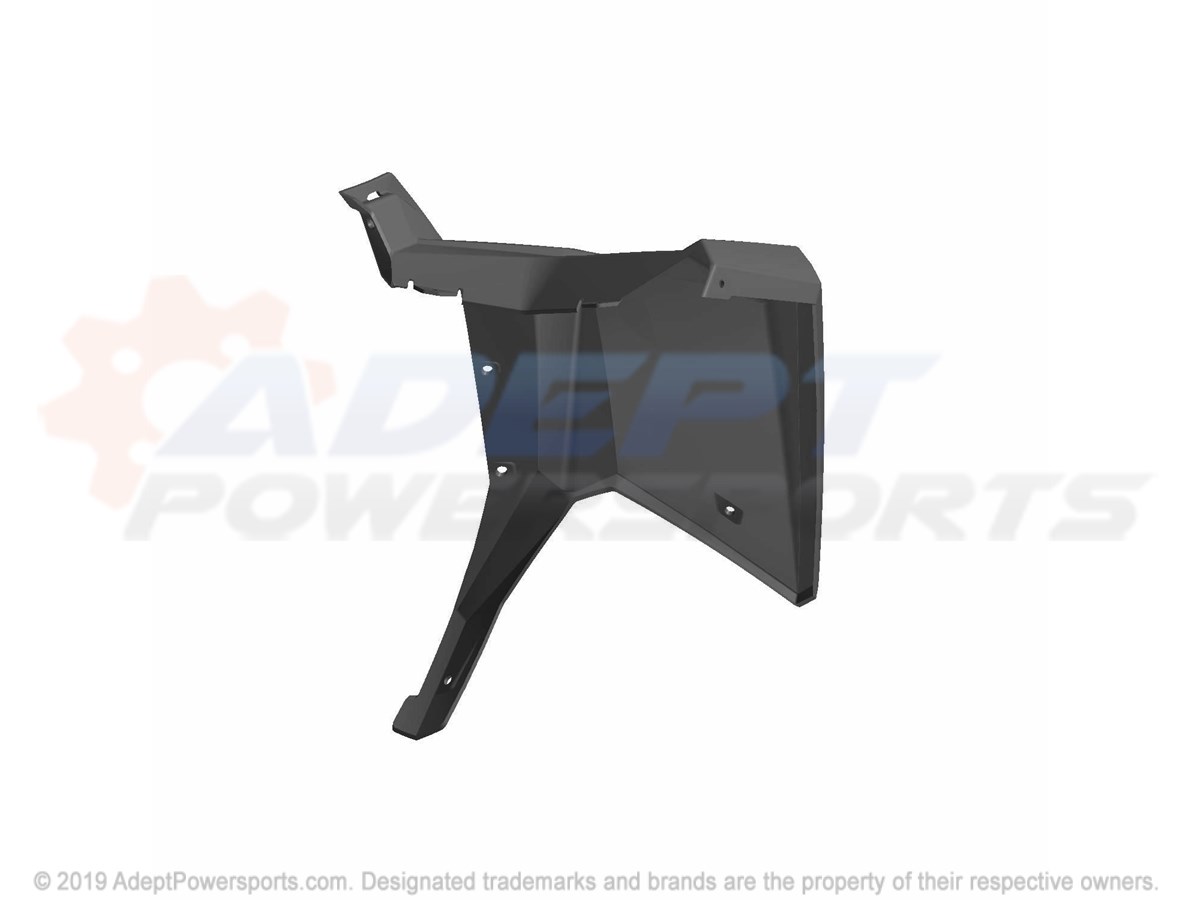

Polaris 2635065-649 Asm-Rr, Cab, Lh, Scr, Pntd, Hav, Red

ASM-RR, CAB, LH, SCR, PNTD, HAV, RED

Part #: 2635065-649 Required per assembly: 1 Note: INCL. WARNING DECALS
Currently Not Available
3
Polaris 5439706-649 Cab-Rr, Rh, Scr, 850, Pntd, Hav, Red

CAB-RR, RH, SCR, 850, PNTD, HAV, RED

Part #: 5439706-649 Required per assembly: 1
Currently Not Available
4
Polaris 5813924 Foil, Fiber, Box, Rear

FOIL, FIBER, BOX, REAR

Part #: 5813924 Required per assembly: 1
Currently Not Available
5
Polaris 7661855 Rivet

RIVET

Part #: 7661855 Required per assembly: 15
$2.99
$1.73
-
+
Add to cart
5
Polaris 7661855 Rivet

RIVET

Part #: 7661855 Required per assembly: 15
$2.99
$1.73
-
+
Add to cart
6

SHIELD-HEAT, EXHAUST, CROSSTUBE

Part #: 5260679 Required per assembly: 1
Currently Not Available
7
Polaris 7661637 Rivet, Interlock, Z

RIVET, INTERLOCK, Z

Part #: 7661637 Required per assembly: 3 Note: Sold in multiples of 50 only
Currently Not Available
