Rear Cab And Heat Shields - A18svs95cr/Er replacement parts for 2018 Polaris Scrambler 1000 Tractor (R02)

OEM Parts Polaris 2018 Polaris Scrambler 1000 Tractor (R02) Rear Cab And Heat Shields - A18svs95cr/Er

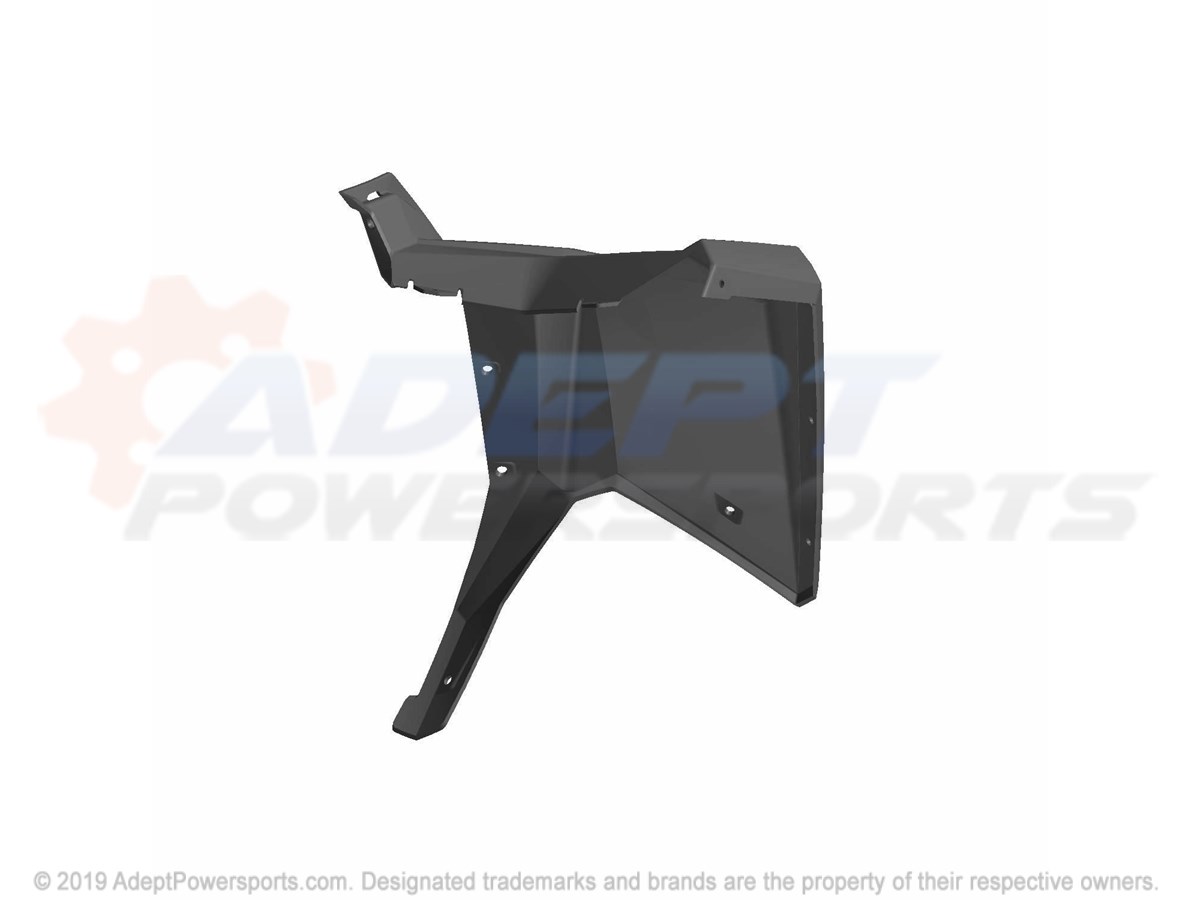

REAR CAB AND HEAT SHIELDS - A18SVS95CR/ER Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SHIELD-HEAT, REAR, CAB, CVT, CUT Part #: 5262800 Required per assembly: 1 Currently Not Available
2	ASM-RR, CAB, LH, SCRM, TRC, PNT, RED Part #: 2636201-649 Required per assembly: 1 Note: INCL. WARNING DECAL Currently Not Available
3	CAB-RR, RH, SCRAM, PNTD, HAV.RED Part #: 5453217-649 Required per assembly: 1 Currently Not Available
4	FOIL, FIBER, BOX, REAR Part #: 5813924 Required per assembly: 1 Currently Not Available
5	RIVET Part #: 7661855 Required per assembly: 15 ~~$2.99~~ $1.73 - + Add to cart
5	RIVET Part #: 7661855 Required per assembly: 15 ~~$2.99~~ $1.73 - + Add to cart
5	RIVET Part #: 7661855 Required per assembly: 15 ~~$2.99~~ $1.73 - + Add to cart
5	RIVET Part #: 7661855 Required per assembly: 15 ~~$2.99~~ $1.73 - + Add to cart
6	SHIELD, HEAT, FOIL, FRAME Part #: 5814113 Required per assembly: 1 Currently Not Available
7	SHIELD, HEAT, FOIL, STORAGE, LH Part #: 5814111 Required per assembly: 1 Currently Not Available
8	SHIELD, HEAT, FOIL, STORAGE, RH Part #: 5814112 Required per assembly: 1 Currently Not Available
