Throttle Body - A18svs95fr replacement parts for 2018 Polaris Scrambler 1000 XP ZUG (R02)

OEM Parts Polaris 2018 Polaris Scrambler 1000 XP ZUG (R02) Throttle Body - A18svs95fr

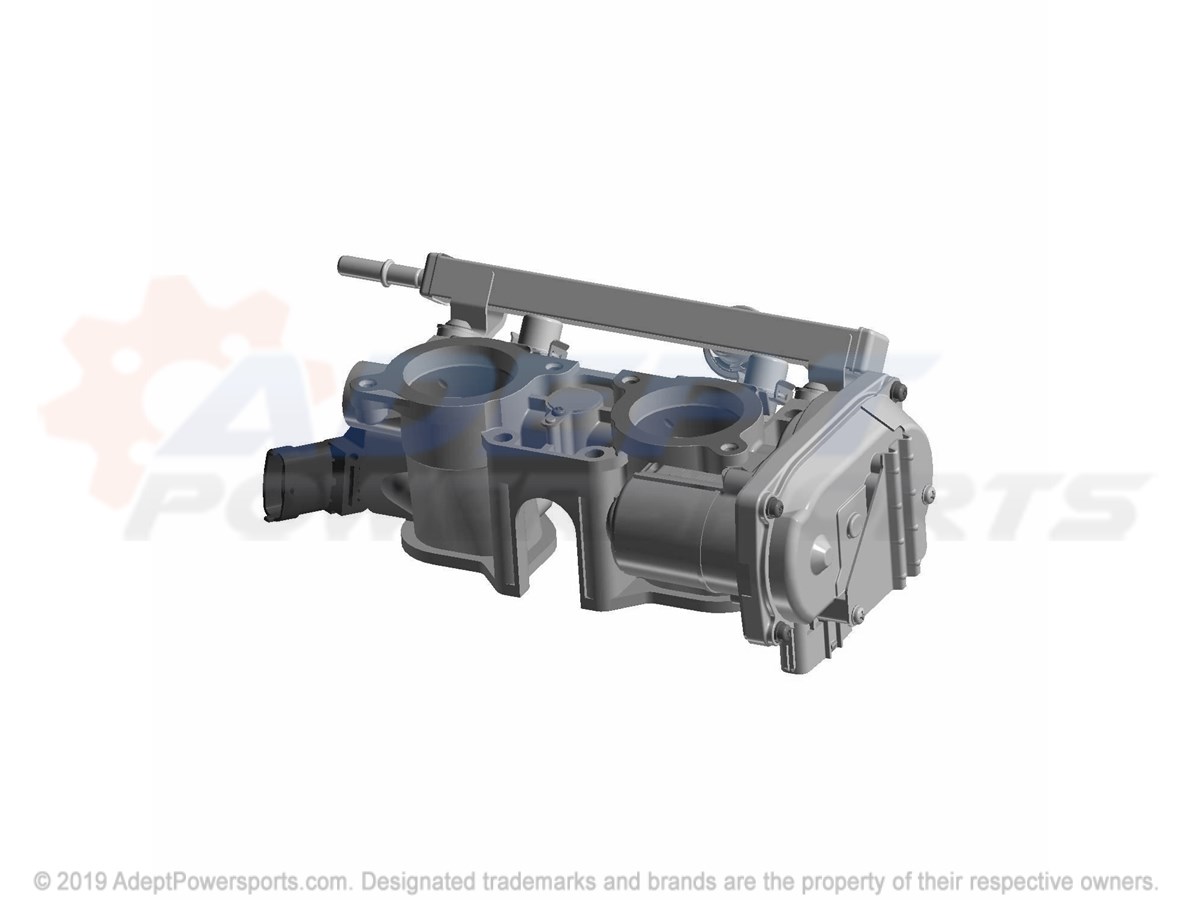

THROTTLE BODY - A18SVS95FR Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASM-THROTTLE, BODY, Q, ETC Part #: 1205520 Required per assembly: 1 Note: INCL. 1-5, SENSORS Currently Not Available
3	CLIP, INJECTOR Part #: 3131725 Required per assembly: 2 Currently Not Available
4	INJECTOR Part #: 1203568 Required per assembly: 2 Currently Not Available
6	GASKET-ITB Part #: 5814296 Required per assembly: 2 Currently Not Available
7	SCR-SHSEMS-M6X1.0X80 8.8 ZOD Part #: 5137620 Required per assembly: 4 Currently Not Available
