OEM Parts Polaris 2018 Polaris General 1000 EPS (R07) Front Shock Mounting - R18rge99bb/B7/Ub9/Ubg (701086)

2018 Polaris General 1000 EPS (R07) R18RGE99BM/BB/B7/KBS/UB9/BG - Front Shock Mounting - R18rge99bb/B7/Ub9/Ubg (701086)

FRONT SHOCK MOUNTING - R18RGE99BB/B7/UB9/UBG (701086) Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 5262756 Retainer-Spring, Steel

RETAINER-SPRING, STEEL

Part #: 5262756 Required per assembly: 2
Currently Not Available
2

CAM-ADJUSTER, ALUMN, 2.30

Part #: 5639455 Required per assembly: 2
Currently Not Available
3

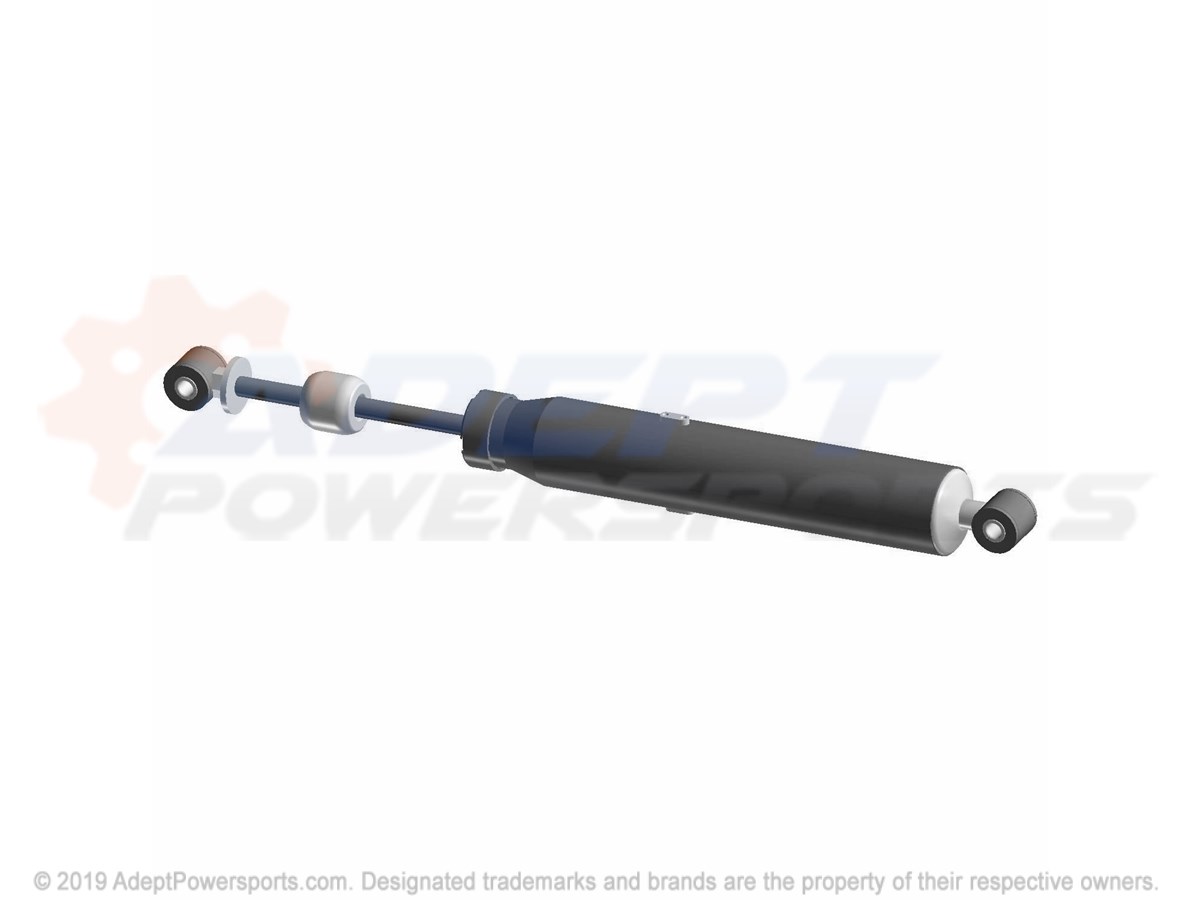

Polaris 7044629 Shock-Front

SHOCK-FRONT

Part #: 7044629 Required per assembly: 2
Currently Not Available
4

SPR-170#, 11.87FL, 2.3-2.3ID.BLK

Part #: 7044779-458 Required per assembly: 2 Note: B7
Currently Not Available
4

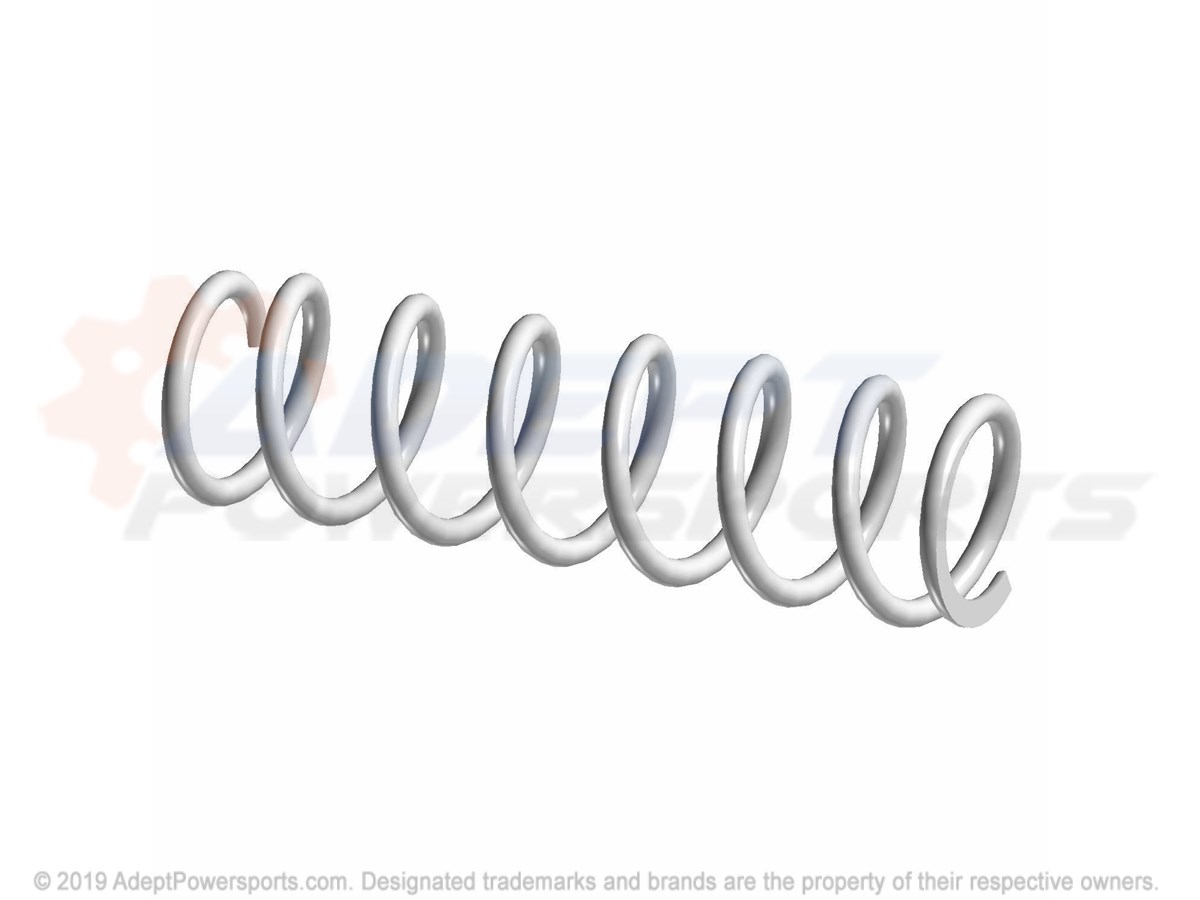

Polaris 7044581-385 Spr-170#, 12.5Fl, 2.3-2.3Id, Slvr

SPR-170#, 12.5FL, 2.3-2.3ID, SLVR

Part #: 7044581-385 Required per assembly: 2 Note: BB
Currently Not Available
5
Polaris 7519306 Scr-Hxfl-M10x1.25X60 10.9 Zod

SCR-HXFL-M10X1.25X60 10.9 ZOD

Part #: 7519306 Required per assembly: 4
Currently Not Available
6
Polaris 7547333 Nut, Flange

NUT, FLANGE

Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25
$3.74
$2.23
-
+
Add to cart
7
Polaris 7556153 Washer, Flat

WASHER, FLAT

Part #: 7556153 Required per assembly: 4 Note: Washer
$3.99
$2.30
-
+
Add to cart
