OEM Parts Polaris 2018 Polaris General 1000 PS MD (R04) Rear Wheel - R18rge99fm/Efb/Scm/Scb/Sfm/Ccm (701377)

2018 Polaris General 1000 PS MD (R04) R18RGE99FM/EFB/SCM/SCB/SFM/CCM - Rear Wheel - R18rge99fm/Efb/Scm/Scb/Sfm/Ccm (701377)

REAR WHEEL - R18RGE99FM/EFB/SCM/SCB/SFM/CCM (701377) Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 1522496-458 Rim-Rear, 14X8, Cast, 50.1Mm, Mblk

RIM-REAR, 14X8, CAST, 50.1MM, MBLK

Part #: 1522496-458 Required per assembly: 2
Currently Not Available
2
Polaris 1522498 Cap-Rim

CAP-RIM

Part #: 1522498 Required per assembly: 2
Currently Not Available
3
Polaris 1525017 Valve, Rim

VALVE, RIM

Part #: 1525017 Required per assembly: 2
Currently Not Available
4

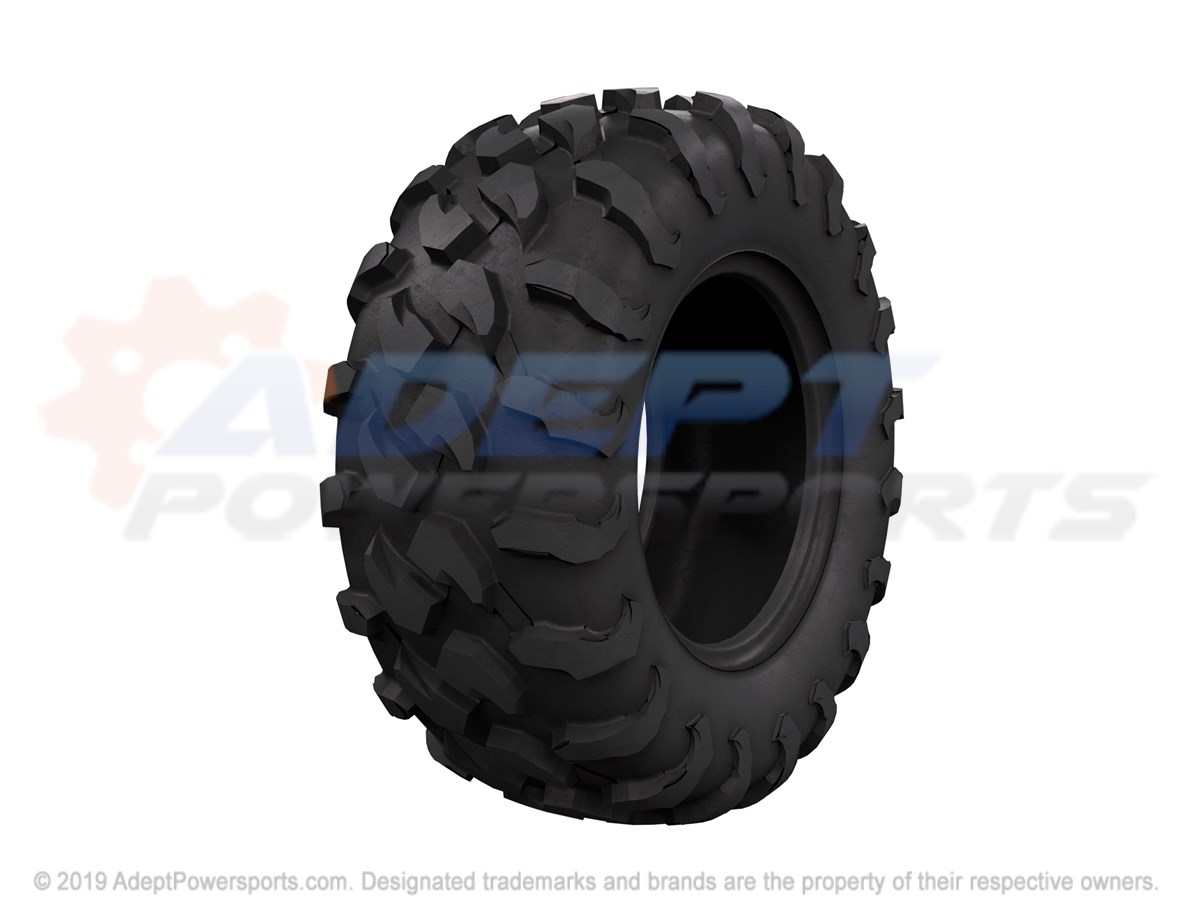

Polaris 5416009 Tire-Rear, 27X11, R14

TIRE-REAR, 27X11, R14

Part #: 5416009 Required per assembly: 2 Note: EFB
Currently Not Available
4
Polaris 5416339 Tire-Rear, 27X11, R14, E-Mark, [Sfm][Ccm]

TIRE-REAR, 27X11, R14, E-MARK, [SFM][CCM]

Part #: 5416339 Required per assembly: 2 Note: EFM
Currently Not Available
5
Polaris 7547489 Nut, Wheel

NUT, WHEEL

Part #: 7547489 Required per assembly: 8
Currently Not Available
