Doors, Front - R18rhe99nk (702228) replacement parts for 2018 Polaris General 1000 4P MD (R05)

OEM Parts Polaris 2018 Polaris General 1000 4P MD (R05) Doors, Front - R18rhe99nk (702228)

DOORS, FRONT - R18RHE99NK (702228) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	PANEL-DOOR, OUT, FRT, LH, PRL, BLK Part #: 5454342-666 Required per assembly: 1 Currently Not Available
2	PANEL-DOOR, OUT, FRT, RH, PRL, BLK Part #: 5454343-666 Required per assembly: 1 Currently Not Available
3	ASM-HANDLE, DOOR, ALUM, LH, OUT Part #: 7082353 Required per assembly: 1 Currently Not Available
3	ASM-HANDLE, DOOR, ALUM, LH, OUT Part #: 7082353 Required per assembly: 1 Currently Not Available
3	ASM-HANDLE, DOOR, ALUM, RH, OUT Part #: 7082354 Required per assembly: 1 Currently Not Available
3	ASM-HANDLE, DOOR, ALUM, RH, OUT Part #: 7082354 Required per assembly: 1 Currently Not Available
4	SCREW Part #: 7512026 Required per assembly: 2 Note: Screw Currently Not Available
5	NUT, U-TYPE Part #: 7547674 Required per assembly: 13 ~~$2.99~~ $1.73 - + Add to cart
6	FRAME-DOOR, CAST, RH Part #: 5639250 Required per assembly: 1 Currently Not Available
6	FRAME-DOOR, CAST, LH Part #: 5639249 Required per assembly: 1 Currently Not Available
7	SCR-TXTH-M6X1.0X20 T40 ZPB Part #: 7519112 Required per assembly: 11 Currently Not Available
8	BRKT-DOOR, LATCH, MNT, RH Part #: 5261426 Required per assembly: 1 Currently Not Available
8	BRKT-DOOR, LATCH, MNT, RH Part #: 5261426 Required per assembly: 1 Currently Not Available
8	BRKT-DOOR, LATCH, MNT, LH Part #: 5261425 Required per assembly: 1 Currently Not Available
8	BRKT-DOOR, LATCH, MNT, LH Part #: 5261425 Required per assembly: 1 Currently Not Available
9	ROD-LATCH, LH, FRT, OUT, DR, HNDL Part #: 5340555 Required per assembly: 1 Currently Not Available
9	ROD-LATCH, RH, FRT, OUT, DR, HNDL Part #: 5340556 Required per assembly: 1 Currently Not Available

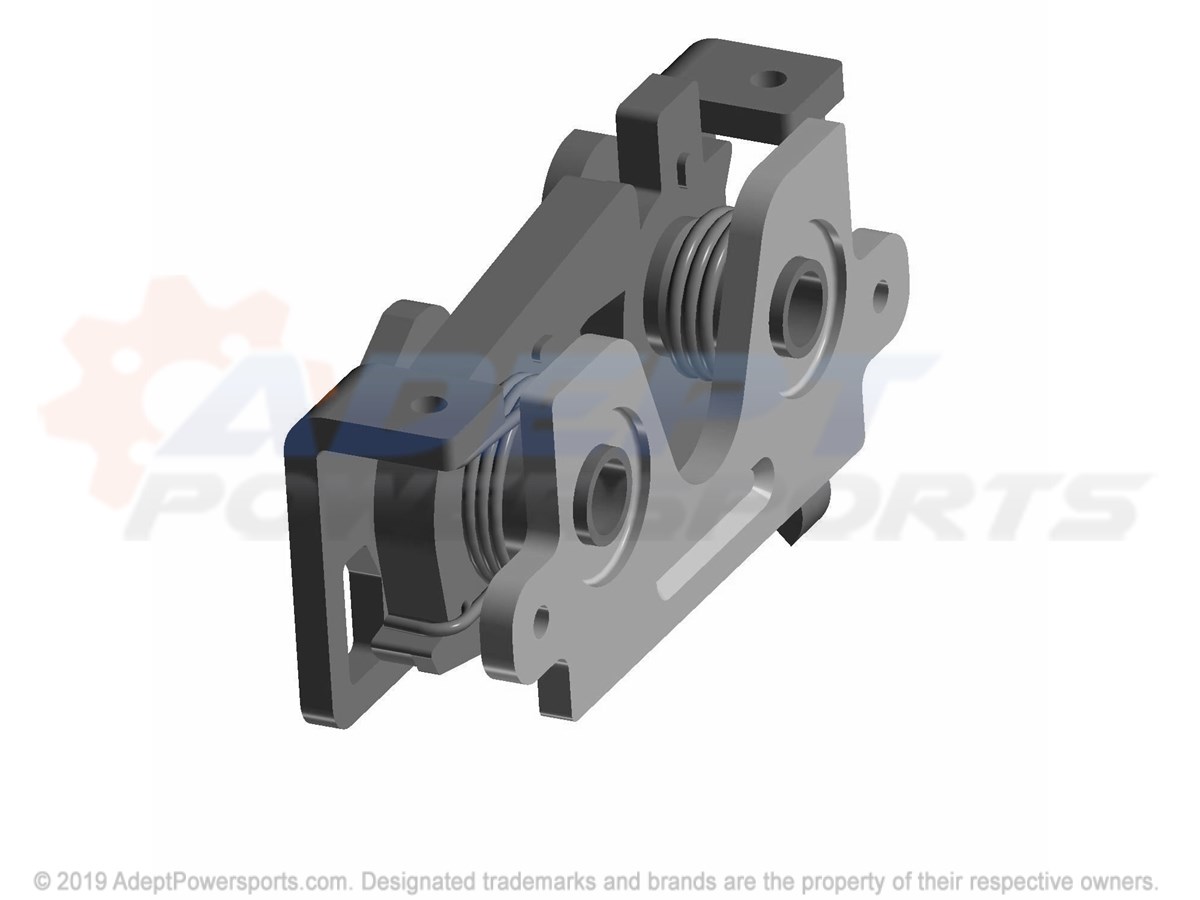

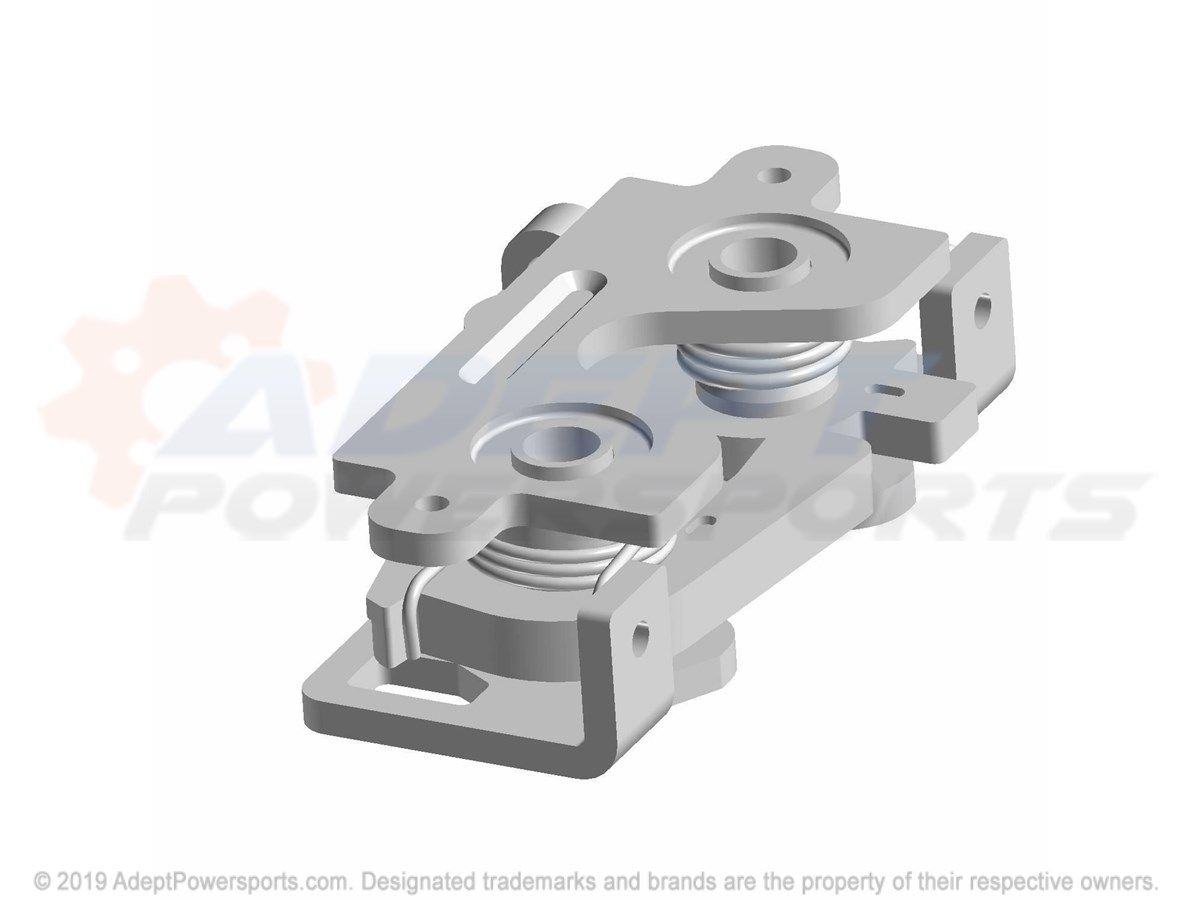

10	ASM-LATCH, RTRY, 2, STAGE, RR, LH Part #: 7082333 Required per assembly: 1 Currently Not Available
10	ASM-LATCH, RTRY, 2, STAGE, RR, RH Part #: 7082334 Required per assembly: 1 Currently Not Available
11	SCREW Part #: 7518533 Required per assembly: 10 Note: Screw, Flange Currently Not Available
12	NUT, FLANGE Part #: 7547453 Required per assembly: 8 Currently Not Available
13	ROD-LATCH, LH, FRT, DR, HNDL Part #: 5340557 Required per assembly: 1 Currently Not Available
13	ROD-LATCH, RH, FRT, DR, HNDL Part #: 5340558 Required per assembly: 1 Currently Not Available
14	ASM-HANDLE, DOOR, INNER Part #: 7082216 Required per assembly: 2 Currently Not Available
15	PANEL-DOOR, INNER, FRONT, LH, BLK Part #: 5454346-070 Required per assembly: 1 Currently Not Available
16	PANEL-DOOR, INNER, FRONT, RH, BLK Part #: 5454347-070 Required per assembly: 1 Currently Not Available
17	SCREW Part #: 7519045 Required per assembly: 12 Currently Not Available
18	COVER-DOOR, HINGE, MOUNT, BLK Part #: 5452517-070 Required per assembly: 4 Currently Not Available
19	HINGE-DOOR, CAST, BLK Part #: 5633642-329 Required per assembly: 2 Currently Not Available
20	SCREW Part #: 7518514 Required per assembly: 8 Note: Bolt Currently Not Available
21	SCREW Part #: 7518613 Required per assembly: 2 Note: Bolt, Flange ~~$2.99~~ $1.73 - + Add to cart
22	SEAL-DOOR, FRT Part #: 5454527 Required per assembly: 2 Currently Not Available
23	HANDLE-GRAB, PASSENGER, BLK Part #: 5452903-070 Required per assembly: 1 Currently Not Available
24	SCREW Part #: 7518656 Required per assembly: 2 Note: Bolt Currently Not Available
25	BRKT-DOOR, CLAMP, E-COAT Part #: 5262743-329 Required per assembly: 4 Currently Not Available
26	U-TYPE, SPEED, NUT Part #: 7081305 Required per assembly: 2 Note: Clip, U Speed Nut [Built 12/07/09 and Before] Currently Not Available
27	SCREW Part #: 7519297 Required per assembly: 2 Currently Not Available
28	SCREW Part #: 7512026 Required per assembly: 2 Note: Screw Currently Not Available
29	GUIDE, DOOR, LATCH Part #: 5454783 Required per assembly: 2 Currently Not Available
30	TRIM-DOOR, INNER, LH, BLK Part #: 5452290-070 Required per assembly: 1 Currently Not Available
31	TRIM-DOOR, INNER, RH, BLK Part #: 5452291-070 Required per assembly: 1 Currently Not Available
32	NUT Part #: 7547274 Required per assembly: 2 Note: Nut, Flange Currently Not Available
33	NUT, METRIC Part #: 7546703 Required per assembly: 2 ~~$1.99~~ $1.15 - + Add to cart
34	ASM-HANDLE, DOOR, ALUM, LH, OUT Part #: 7082353 Required per assembly: 1 Currently Not Available
35	CLIP-REAR DOOR Part #: 5454637 Required per assembly: 2 Currently Not Available
36	SCR-TXTH-M6X1.0X20 T40 ZPB Part #: 7519112 Required per assembly: 5 Currently Not Available
37	DOOR-GRAB, HANDLE, RH, BLK Part #: 5452904-070 Required per assembly: 1 Currently Not Available
38	SCR-SH-M6X1.0X50 8.8 RIE Part #: 7520482 Required per assembly: 2 Currently Not Available
