Throttle Pedal/Cable - R18rtad1b1/Ed1n1 (700361) replacement parts for 2018 Polaris Ranger 1000 Diesel (R05)

OEM Parts Polaris 2018 Polaris Ranger 1000 Diesel (R05) Throttle Pedal/Cable - R18rtad1b1/Ed1n1 (700361)

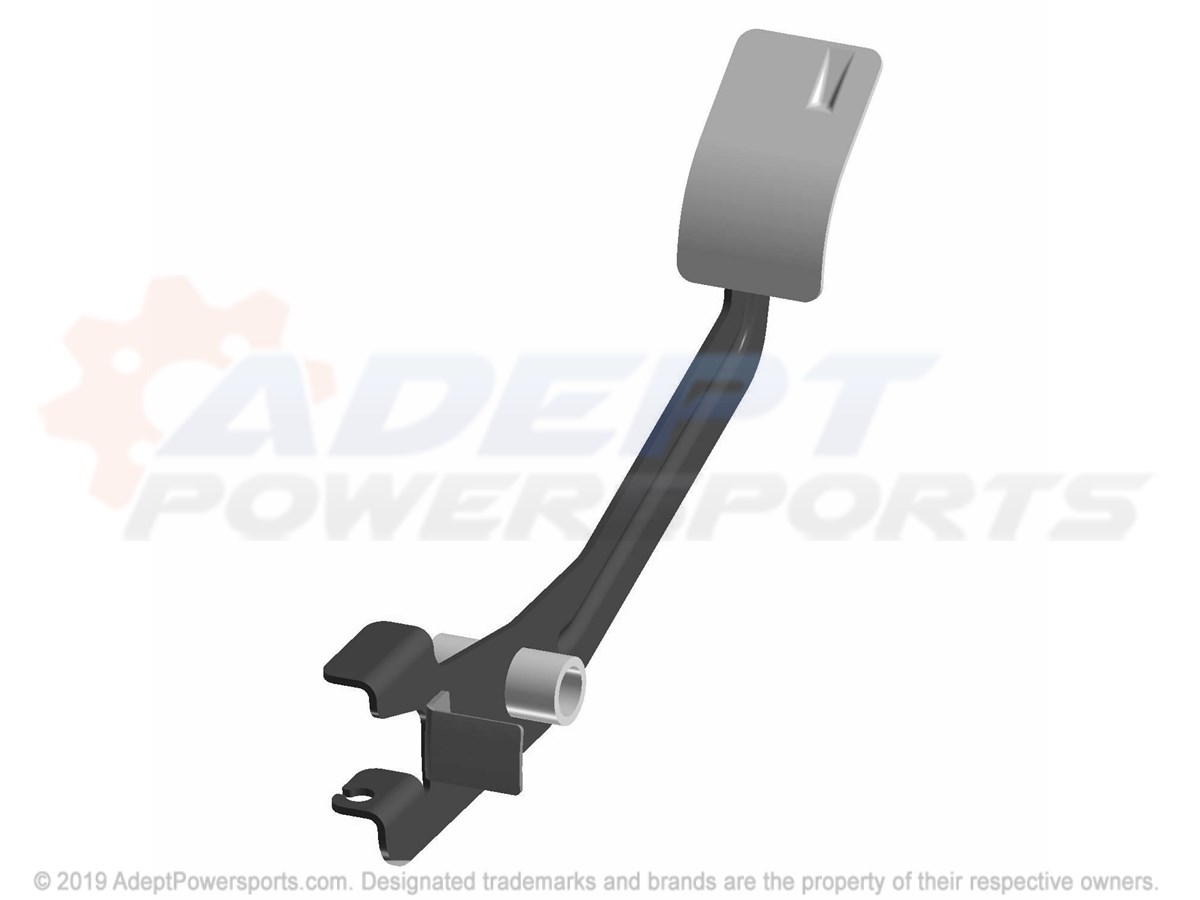

THROTTLE PEDAL/CABLE - R18RTAD1B1/ED1N1 (700361) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	WELD-THROTTLE, PEDAL, BLK Part #: 1020390-458 Required per assembly: 2 Note: B1 Currently Not Available
1	WELD-THROTTLE, PEDAL, TRS, BLK Part #: 1021271-458 Required per assembly: 1 Note: N1 Currently Not Available
2	SPRING, ACCELERATOR Part #: 7043418 Required per assembly: 2 Currently Not Available
3	BUSHING, PEDAL, PIVOT Part #: 5439274 Required per assembly: 2 Currently Not Available
4	RING, RETAINING Part #: 7710901 Required per assembly: 1 Currently Not Available
5	BRKT-THROTTLE, ENGINE Part #: 5260150 Required per assembly: 1 Currently Not Available
6	HAIRPIN-COTTER 3/16-1/4 Part #: 7661124 Required per assembly: 1 Currently Not Available
7	CABLE-THROTTLE, DSL Part #: 7082337 Required per assembly: 1 Note: N1 Currently Not Available
7	CABLE-THROTTLE, DSL Part #: 7082337 Required per assembly: 1 Note: B1 Currently Not Available
8	SCREW Part #: 7517704 Required per assembly: 2 Currently Not Available
9	PIN, CLEVIS Part #: 7661014 Required per assembly: 1 Currently Not Available
