Transmission - T18aapf/Aarf/Aasf All Options (500055) replacement parts for 2018 Polaris Slingshot All Options (R01)

OEM Parts Polaris 2018 Polaris Slingshot All Options (R01) Transmission - T18aapf/Aarf/Aasf All Options (500055)

TRANSMISSION - T18AAPF/AARF/AASF ALL OPTIONS (500055) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	TRANSMISSION-AISIN Part #: 1333076 Required per assembly: 1 Currently Not Available
2	SCR-HXFL-M12X1.75X50, GM Part #: 11516331 Required per assembly: 9 Currently Not Available
2	SCR-HXFL-M12X1.75X50, GM Part #: 11516331 Required per assembly: 9 Currently Not Available
3	NUT-HXFL-M10X1.5, SPC, GM Part #: 11516754 Required per assembly: 2 Currently Not Available
4	SCR-HXFL-M10X1.5X40 10.9ZODP80 Part #: 7519216 Required per assembly: 2 Currently Not Available
5	MOUNT-TRANSMISSION, GM Part #: 15287646 Required per assembly: 1 Currently Not Available
6	SCR-HXFL-M10X1.5X30, SPC, GM Part #: 11516328 Required per assembly: 4 Currently Not Available
7	MOUNT-TRANSMISSION, VBLOCK Part #: 5139347 Required per assembly: 1 Currently Not Available
8	NUT Part #: 7547017 Required per assembly: 2 Currently Not Available
9	BOOT-SHIFTER, SLR Part #: 5455842 Required per assembly: 1 Note: SLR, AARF MODELS ONLY Currently Not Available
10	LEVER, SHIFT, INNER, NO.2 Part #: 3235665 Required per assembly: 1 Currently Not Available

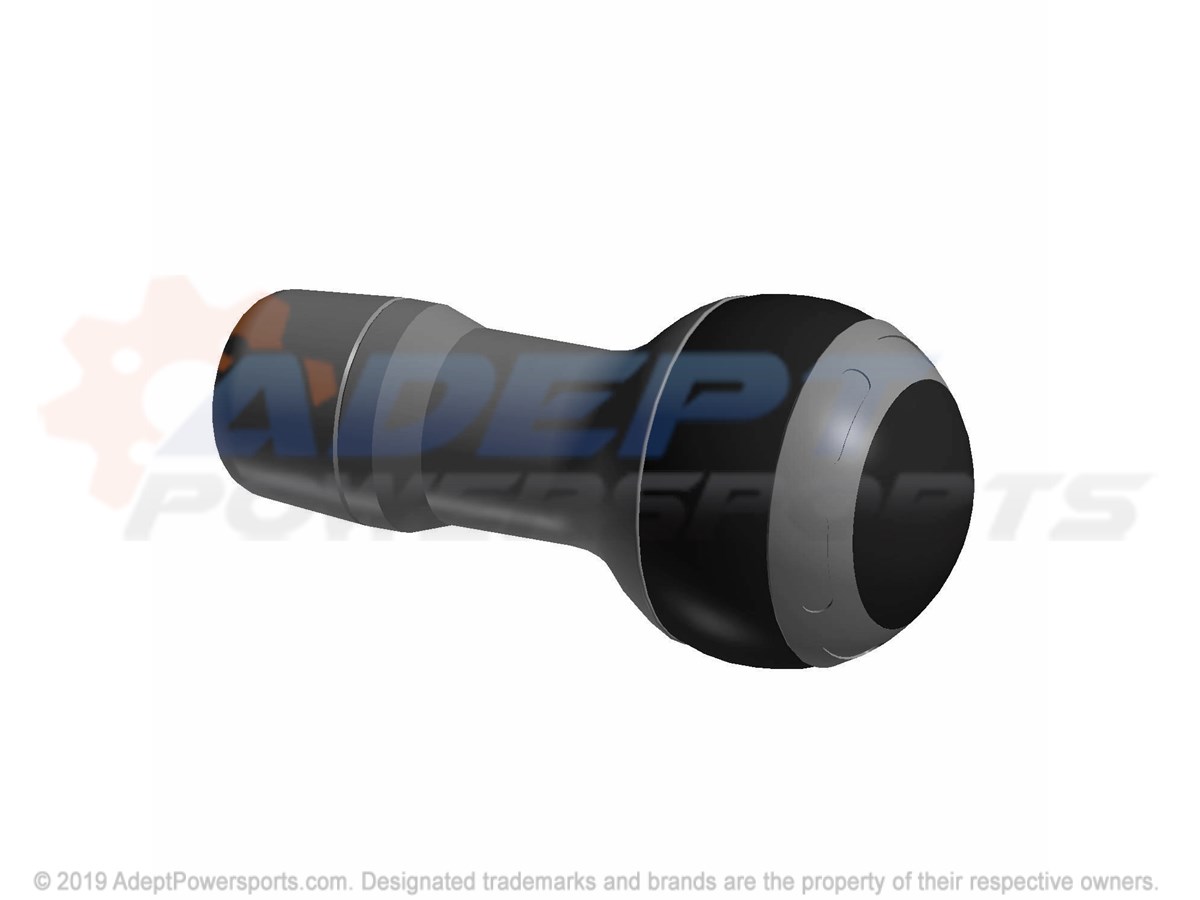

11	KNOB-SHIFTER, SLR Part #: 5634036 Required per assembly: 1 Note: SLR, AARF MODELS ONLY Currently Not Available
12	INSERT-SHIFTER, R Part #: 5456700 Required per assembly: 1 Note: SLR, AARF MODELS ONLY ~~$29.99~~ $20.69 - + Add to cart

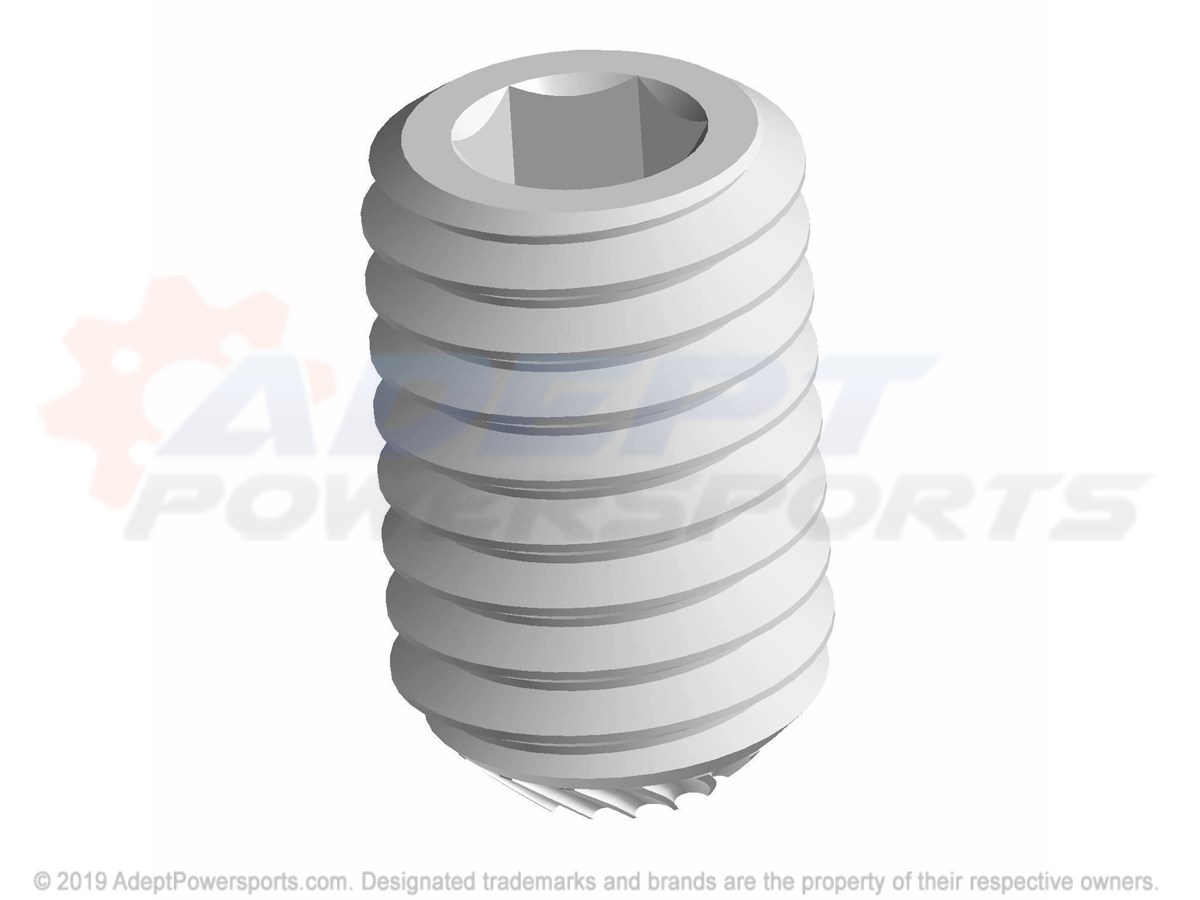

13	SCR-SHSET-M5X0.8X8-KNURL CUP Part #: 7520587 Required per assembly: 3 Note: SLR Currently Not Available
14	CLAMP Part #: 3235651 Required per assembly: 1 Currently Not Available
15	RETAINER, ASM, CONTROL, SHFT, LEVR Part #: 3235674 Required per assembly: 1 Currently Not Available
16	KNOB-SHIFTER Part #: 5633187 Required per assembly: 1 Note: SL Currently Not Available
16	SCREW Part #: 7517781 Required per assembly: 1 Currently Not Available
17	SCR-SHSET, M10X1.0X12, ZPB, D202 Part #: 7520131 Required per assembly: 1 Currently Not Available
17	SCR-SHSET, M10X1.0X12, ZPB, D202 Part #: 7520131 Required per assembly: 1 Currently Not Available
18	BOOT-SHIFTER Part #: 5455841 Required per assembly: 1 Note: SL Currently Not Available
19	ROD-SHIFTER Part #: 5139470 Required per assembly: 1 Note: SL Currently Not Available
20	ROD-SHIFTER, SLR Part #: 5263222 Required per assembly: 1 Note: SLR Currently Not Available
