Rear Shock - Z18vaa87b2/E87bm/Bw (49Rgrshockrr7044132) replacement parts for 2018 Polaris RZR 900 50 Inch (R02)

OEM Parts Polaris 2018 Polaris RZR 900 50 Inch (R02) Rear Shock - Z18vaa87b2/E87bm/Bw (49Rgrshockrr7044132)

REAR SHOCK - Z18VAA87B2/E87BM/BW (49RGRSHOCKRR7044132) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	RETAINER, SPRING Part #: 5251753 Required per assembly: 2 Currently Not Available
2	CAM-ADJUSTING SPRING STEEL Part #: 5253768 Required per assembly: 2 Currently Not Available
3	SPACER-SPRING NYLON 2" Part #: 5438839 Required per assembly: 2 Currently Not Available
4	SHOCK-REAR Part #: 7044132 Required per assembly: 2 Currently Not Available

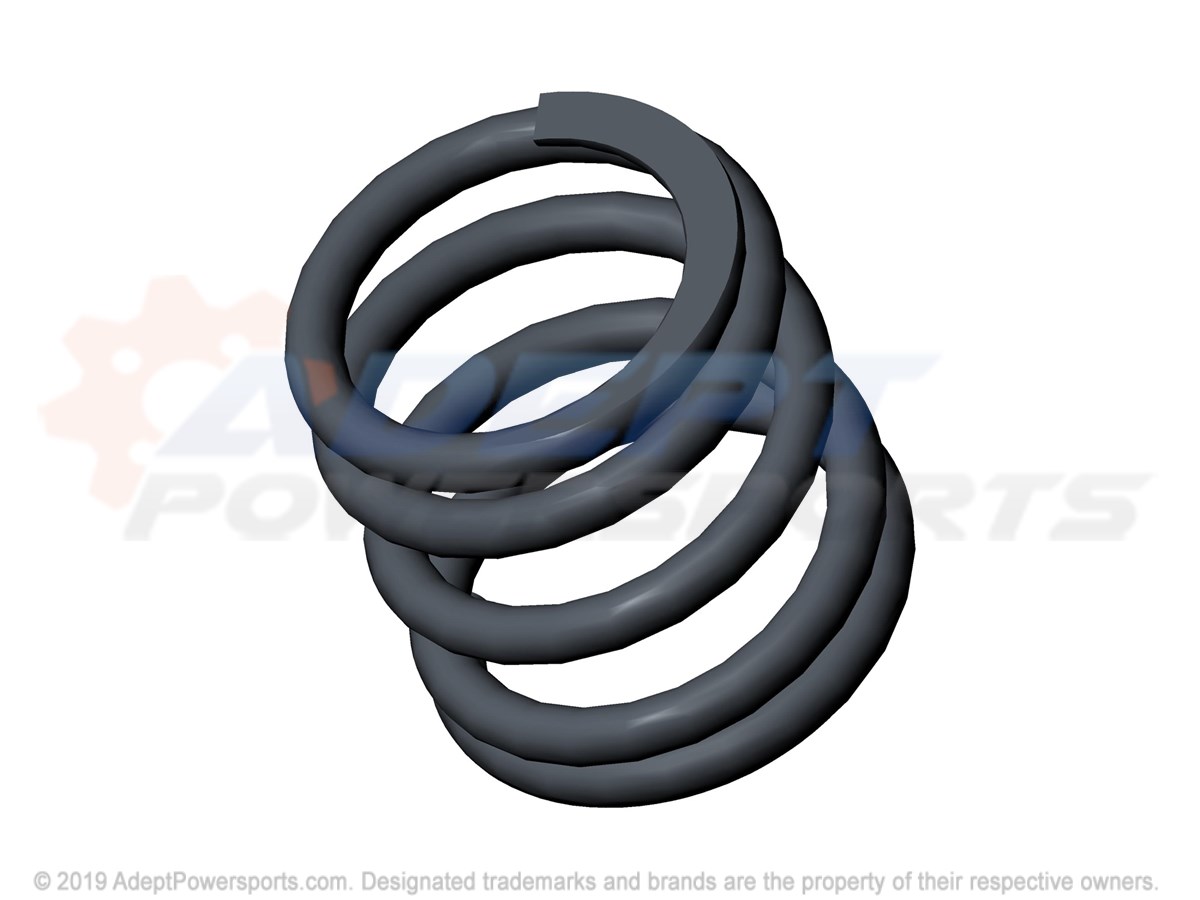

5	SPR-360#, 3.1FL, 2.06-2.31ID, BLK Part #: 7044218-458 Required per assembly: 2 Note: B2 Currently Not Available
5	SPR-360#, 3.1FL, 2.06-2.31ID, RED Part #: 7044218-293 Required per assembly: 2 Note: BW Currently Not Available
5	SPR-360#, 3.1FL, 2.06-2.31ID, GLD Part #: 7044218-703 Required per assembly: 2 Note: BM Currently Not Available

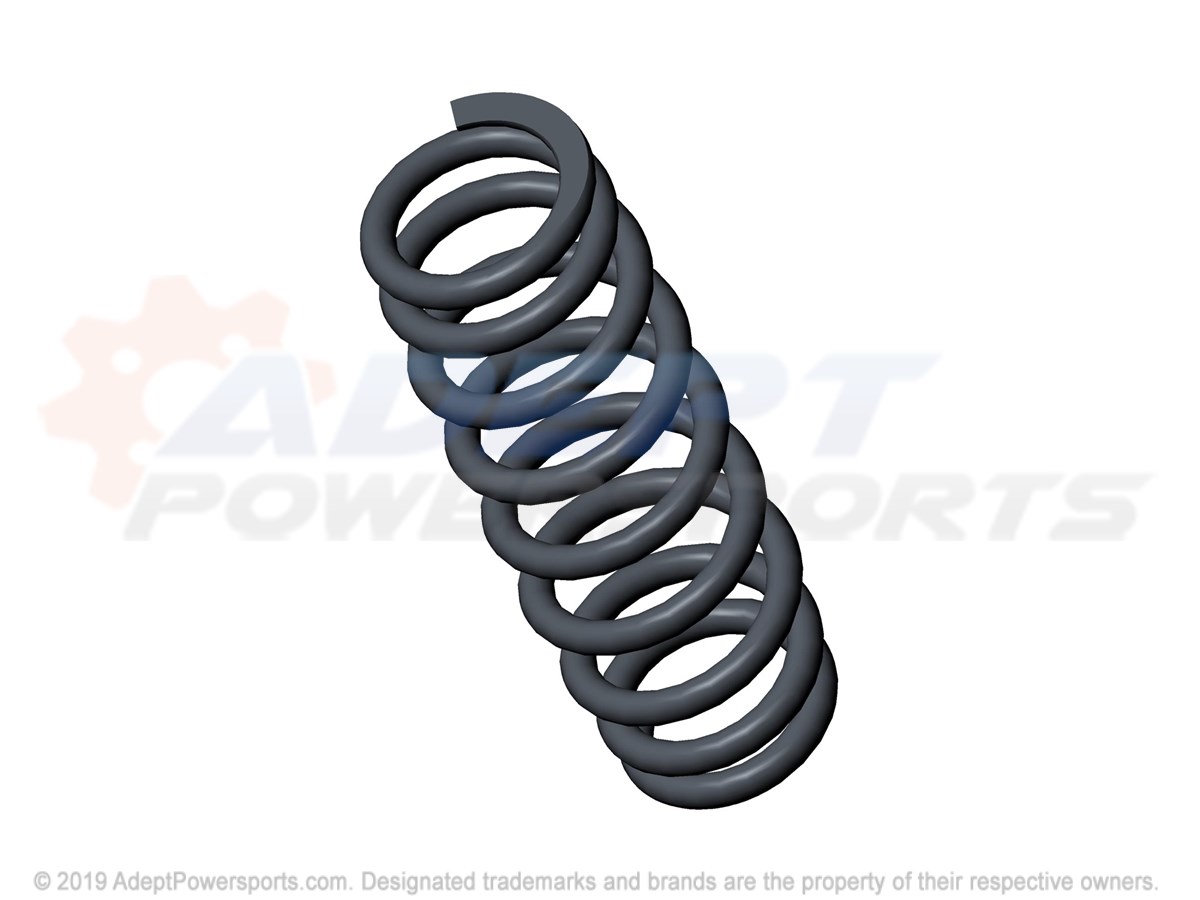

6	SPR-305#, 10.7FL, 2.06-2.31ID, RD Part #: 7044329-293 Required per assembly: 2 Note: BW Currently Not Available
6	SPR-305#, 10.7FL, 2.06-2.31ID, BK Part #: 7044329-458 Required per assembly: 2 Note: B2 Currently Not Available
6	SPR-305#, 10.7FL, 2.06-2.31ID, GD Part #: 7044329-703 Required per assembly: 2 Note: BM Currently Not Available
7	SCR-HXFL-M10X1.25X60 10.9 ZOD Part #: 7519306 Required per assembly: 4 Currently Not Available
7	SCR-HXFL-M10X1.25X60 10.9 ZOD Part #: 7519306 Required per assembly: 4 Currently Not Available
8	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
8	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
