Rear Wheel - Z18vas87cm (701141) replacement parts for 2018 Polaris RZR 900 50 Inch EU/Tractor (R01)

OEM Parts Polaris 2018 Polaris RZR 900 50 Inch EU/Tractor (R01) Rear Wheel - Z18vas87cm (701141)

REAR WHEEL - Z18VAS87CM (701141) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	VALVE, RIM Part #: 1525017 Required per assembly: 2 Currently Not Available
2	NUT, WHEEL Part #: 7547489 Required per assembly: 8 Currently Not Available
3	CAP-RIM, BLK Part #: 1523993-655 Required per assembly: 2 Currently Not Available
4	RIM-FRT, 12X6, CAST, 26.2, OFST, FB Part #: 1522230-655 Required per assembly: 2 Currently Not Available

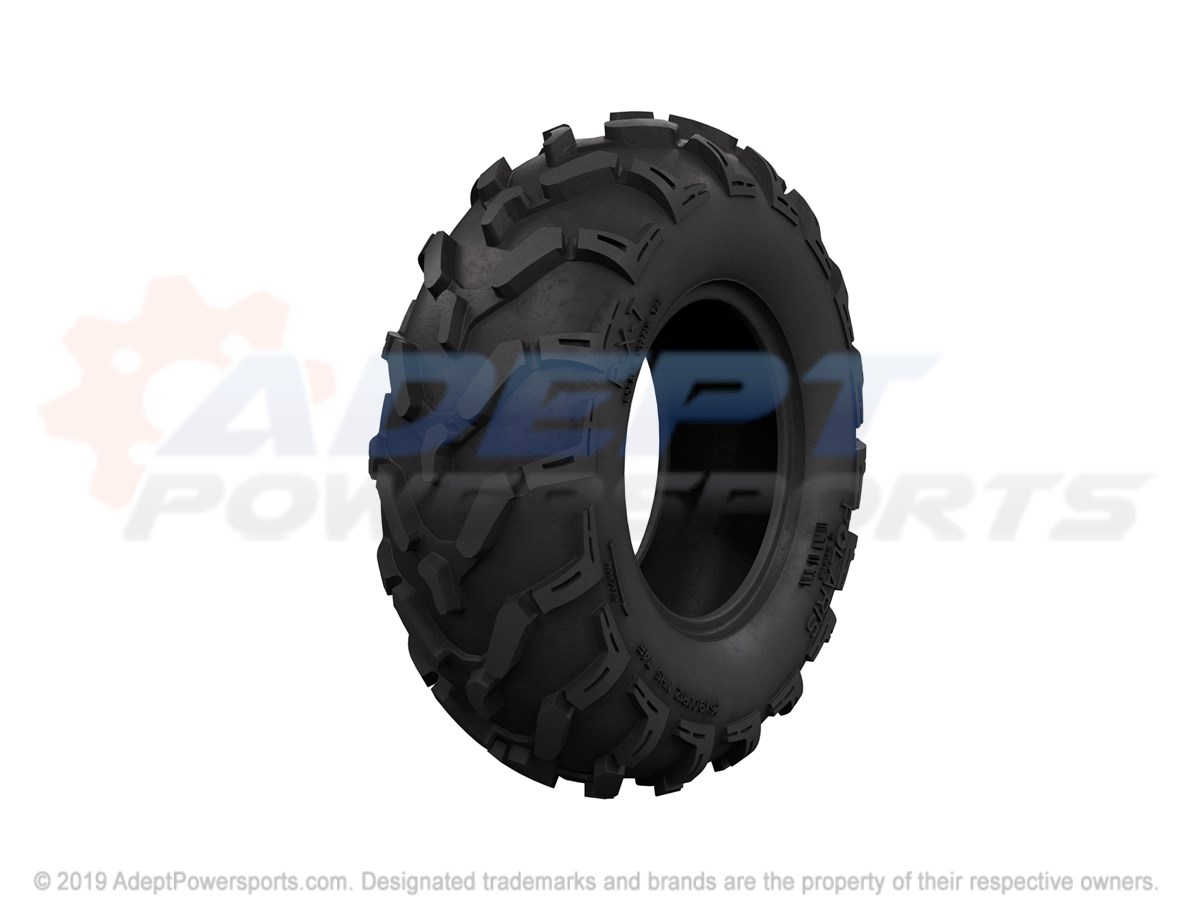

5	TIRE-RR, 26X9R12, PXT, E-MARK Part #: 5416410 Required per assembly: 2 Currently Not Available
