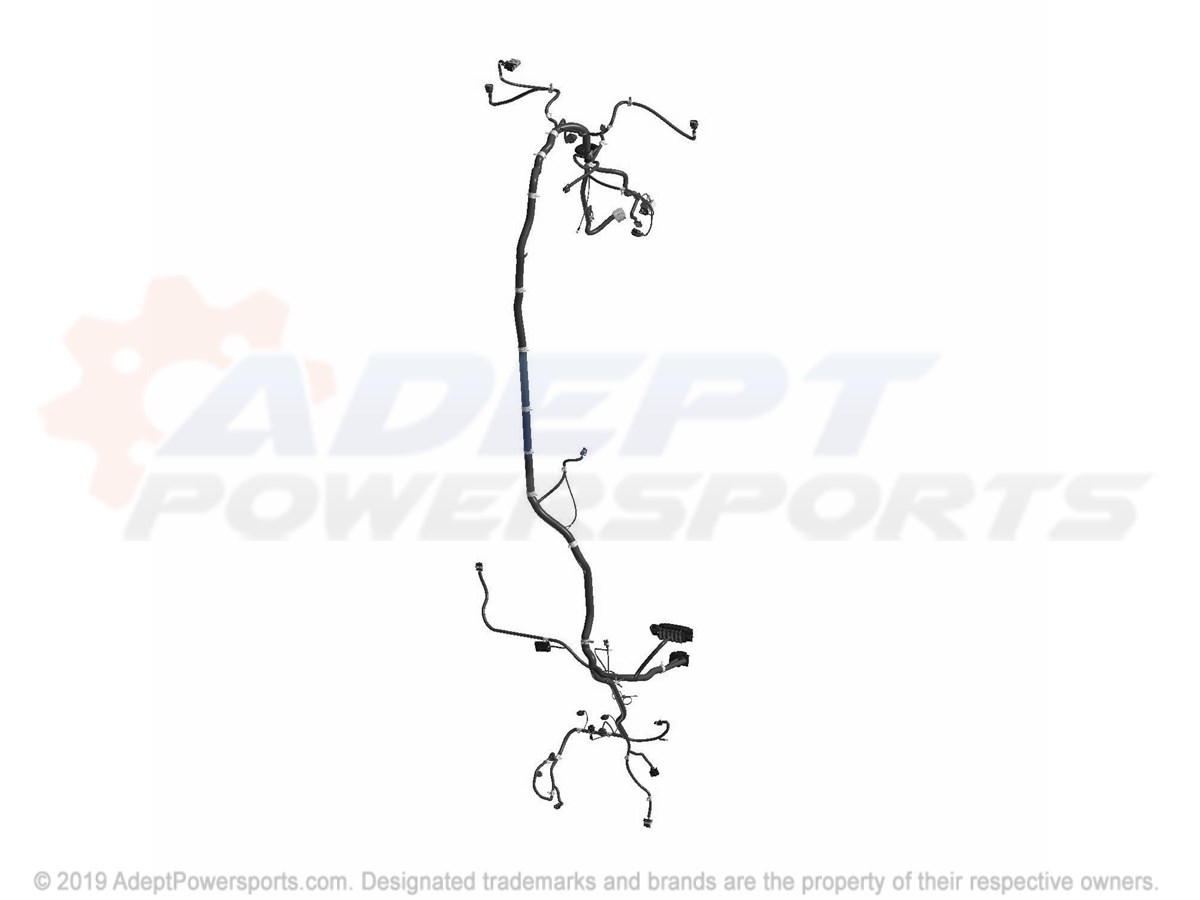

WIRE HARNESS - Z18VCE87BK/BU (701159) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	HARNESS-CHASSIS, RZR, 900MP, EPS Part #: 2414028 Required per assembly: 1 Note: INCL. 2-13 Currently Not Available
2	STRAP, PANDUIT, DOUBLE, LOOP Part #: 7081916 Required per assembly: 4 Currently Not Available
3	LABEL-FUSE, BOX, RZN Part #: 7186514 Required per assembly: 1 Currently Not Available
4	CLIP-ROUTING, DIN, BOX Part #: 7082020 Required per assembly: 1 Currently Not Available
5	CLIP-ROUTING Part #: 7081496 Currently Not Available
6	GROMMET-65MM, BLK Part #: 5813954 Required per assembly: 1 Currently Not Available
7	BREAKER, CIRCUIT, 20, AMP Part #: 4011372 Required per assembly: 1 Currently Not Available
8	COVER, DIAGNOSTIC, W/CLIP Part #: 4012170 Required per assembly: 1 Currently Not Available
9	FUSE, 25, AMP Part #: 4011653 Required per assembly: 2 Currently Not Available
10	RELAY-SPST, 12V, 20A, EPXY, HFA Part #: 4016819 Required per assembly: 7 Currently Not Available
11	FUSE, 10AMP Part #: 2434016 Required per assembly: 7 Note: Fuse, 10 AMP, Ignition Sold in multiples of 10 only Currently Not Available
12	LED-PANEL, MNT, 12V, BLUE Part #: 2413217 Required per assembly: 1 Currently Not Available
13	FUSE, MINI, BLADE, 15, AMP. Part #: 4010859 Required per assembly: 3 Currently Not Available
14	HARNESS-BOX, RZR Part #: 2412287 Required per assembly: 1 Currently Not Available
15	REGULATOR-3PH, 50A, SERIES, HISPD Part #: 4016868 Required per assembly: 1 Currently Not Available
16	GROMMET, ELECTRICAL Part #: 5414440 Required per assembly: 1 Currently Not Available
17	SCREW Part #: 7518533 Required per assembly: 2 Note: Screw, Flange Currently Not Available
18	ECM Part #: 4014125 Required per assembly: 1 Currently Not Available
19	SCREW Part #: 7519091 Required per assembly: 4 Currently Not Available
20	BRKT-MOUNT, REGULATOR, ECOAT Part #: 5264572-329 Required per assembly: 1 Currently Not Available
21	STRAP, PANDUIT, 14" Part #: 7080761 Required per assembly: 2 Note: Cable Tie Currently Not Available
22	SCREW Part #: 7518529 Required per assembly: 2 ~~$2.99~~ $1.73 - + Add to cart
23	SCR-TFHFL-M6X1.0X25 ZOD Part #: 7519342 Required per assembly: 2 ~~$4.04~~ $2.91 - + Add to cart
