Wire Harness - Z18vdl92bk (701917) replacement parts for 2018 Polaris RZR XP Turbo (R01)

OEM Parts Polaris 2018 Polaris RZR XP Turbo (R01) Wire Harness - Z18vdl92bk (701917)

WIRE HARNESS - Z18VDL92BK (701917) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	STRAP PANDUIT Part #: 7080138 Required per assembly: 3 ~~$1.99~~ $1.15 - + Add to cart
2	HARNESS-BOX, RZR, 64, CAMERA Part #: 2413608 Required per assembly: 1 Note: INCL 3-5 Currently Not Available
3	CLIP-EDGE, HARNESS Part #: 7081890 Required per assembly: 2 Currently Not Available
4	STRAP-CABLE TIE W/EDGE CLIP Part #: 7081808 Required per assembly: 1 Currently Not Available
5	CLIP-ROUTING Part #: 7081496 Required per assembly: 1 Currently Not Available
6	HARNESS-CHASSIS, RZR, 64, LV Part #: 2413839 Required per assembly: 1 Note: INCL 7-31 Currently Not Available
7	STRAP, PANDUIT, DOUBLE, LOOP Part #: 7081916 Required per assembly: 4 Currently Not Available
8	LABEL-FUSE BOX Part #: 7186206 Required per assembly: 1 Currently Not Available
9	CLIP-ROUTING Part #: 7082068 Required per assembly: 1 Currently Not Available
10	CLIP-ROUTING, DIN, BOX Part #: 7082020 Required per assembly: 1 Currently Not Available
11	CABLE TIE-FIR TREE Part #: 7082003 Required per assembly: 4 Currently Not Available
12	STRAP, PANDUIT, DOUBLE, LOOP Part #: 7081916 Required per assembly: 1 Currently Not Available
13	CLIP-EDGE, HARNESS Part #: 7081890 Required per assembly: 4 Currently Not Available
14	CLIP-EDGE, SIDE, W/STRAP Part #: 7081876 Required per assembly: 1 Currently Not Available
15	STRAP-CABLE TIE W/EDGE CLIP Part #: 7081808 Required per assembly: 2 Currently Not Available
16	CLIP-ROUTING Part #: 7081496 Required per assembly: 31 Currently Not Available
17	GROMMET-65MM, BLK Part #: 5813954 Required per assembly: 1 Currently Not Available
18	CAP-VINYL, 500X1000, BLK Part #: 5438233 Required per assembly: 3 Currently Not Available
19	CAP-VINYL, 125X375, BLACK Part #: 5438230 Required per assembly: 1 Currently Not Available
20	GROMMET-DASH, FUSE, CTR, RZR Part #: 5416469 Required per assembly: 1 Currently Not Available
21	BOOT-TMAP Part #: 4016101 Required per assembly: 1 Currently Not Available
22	COVER, DIAGNOSTIC, W/CLIP Part #: 4012170 Required per assembly: 1 Currently Not Available
23	FUSE, 25, AMP Part #: 4011653 Required per assembly: 2 Currently Not Available
24	RELAY-SPST, 12V, 20A, EPXY, HFA Part #: 4016819 Required per assembly: 9 Currently Not Available
25	FUSE, 7.5, AMP Part #: 4011068 Required per assembly: 10 Currently Not Available
26	FUSE, 10AMP Part #: 2434016 Required per assembly: 4 Note: Fuse, 10 AMP, Ignition Sold in multiples of 10 only Currently Not Available
27	FUSE, MAIN, 30, AMP Part #: 2434015 Required per assembly: 2 Note: Fuse, 30 AMP, Main Sold in multiples of 10 only Currently Not Available

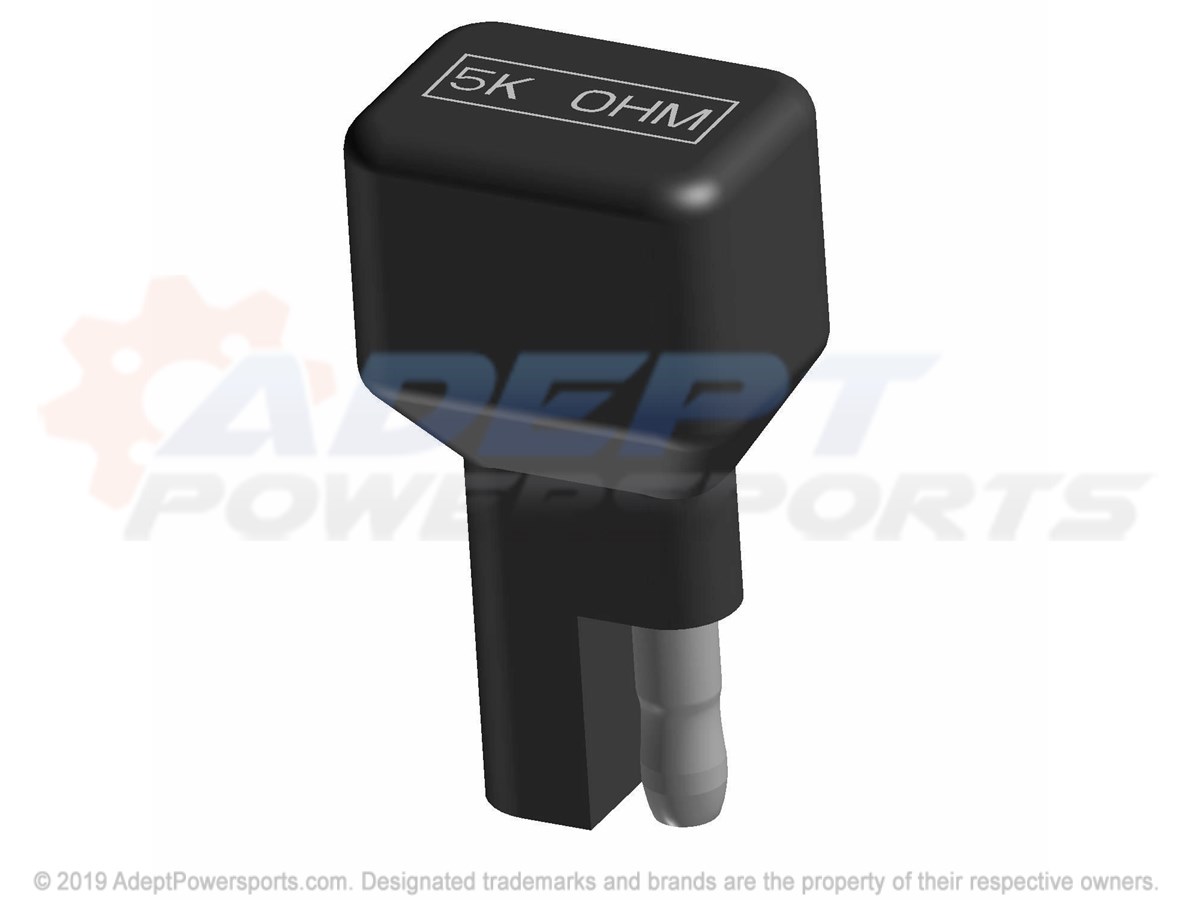

28	RESISTOR-5K OHM Part #: 2413793 Required per assembly: 1 Currently Not Available

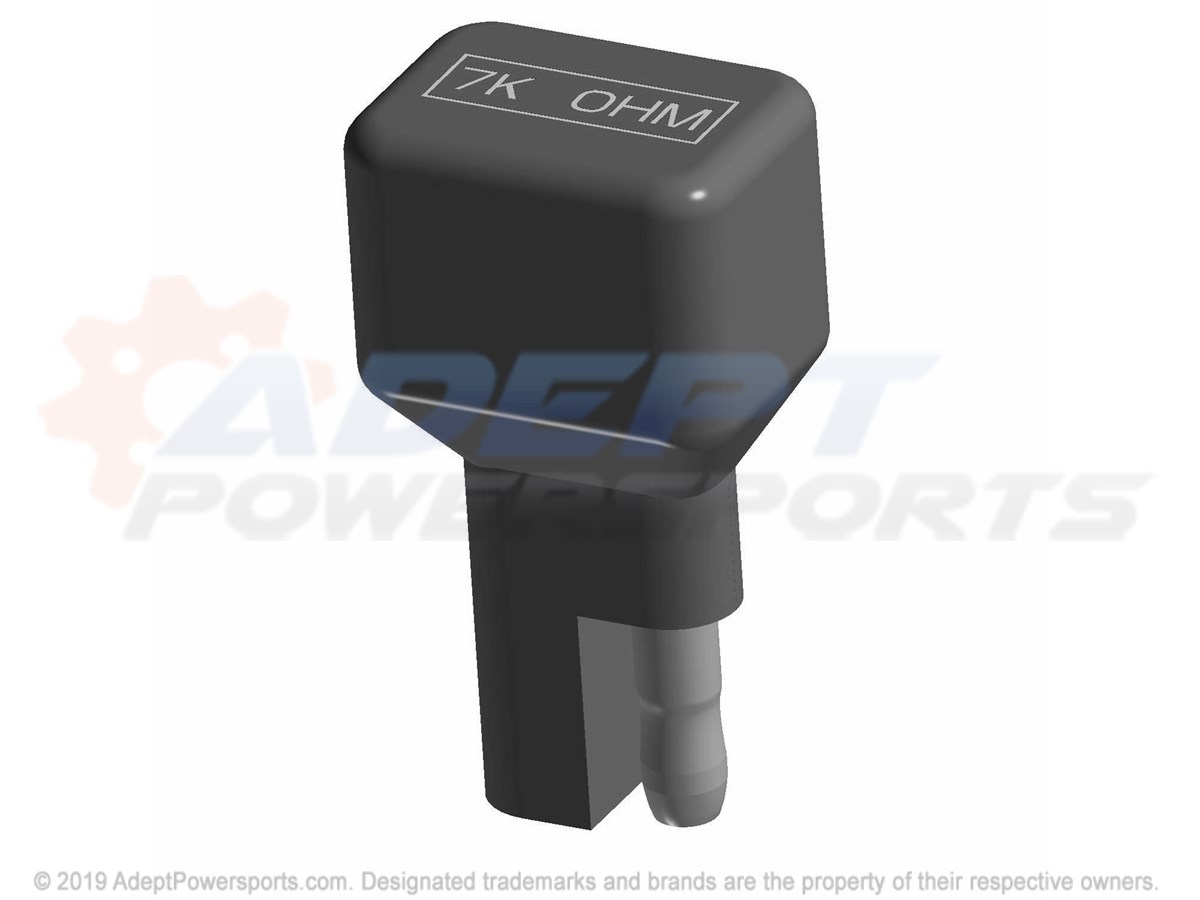

29	RESISTOR-7K OHM Part #: 2413792 Required per assembly: 1 Currently Not Available
30	LED-PANEL, MNT, 12V, BLUE Part #: 2413217 Required per assembly: 1 Currently Not Available
31	DIODE, 6, AMP Part #: 2411035 Required per assembly: 1 Currently Not Available
