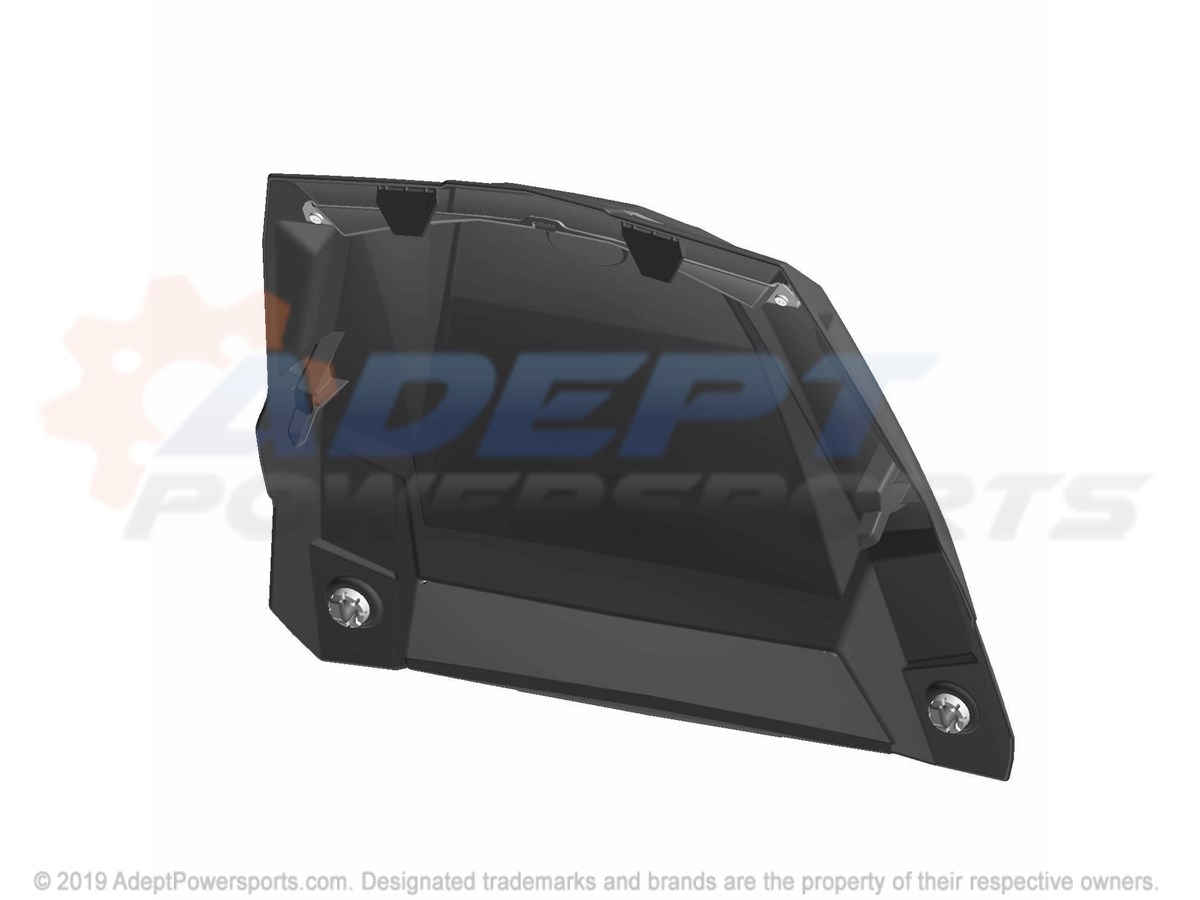

HOOD AND FRONT BODY WORK - Z18VDE92NB/NU (700437) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	FENDER, FRONT, FLAIR, LH, BLACK Part #: 5439760-070 Required per assembly: 1 Currently Not Available
2	FENDER, FRONT, FLAIR, RH, BLACK Part #: 5439761-070 Required per assembly: 1 Currently Not Available
3	FENDER-FR, PNTD, LH, VL, BLU Part #: 5450717-689 Required per assembly: 1 Note: NB Currently Not Available
3	FENDER-FR, PNTD, LH, GH.GRAY Part #: 5450717-728 Required per assembly: 1 Note: NU Currently Not Available
4	FENDER-FR, PNTD, RH, GH.GRAY Part #: 5450718-728 Required per assembly: 1 Note: NU Currently Not Available
4	FENDER-FR, PNTD, RH, VL, BLU Part #: 5450718-689 Required per assembly: 1 Note: NB Currently Not Available
5	SCREW Part #: 7519650 Currently Not Available
5	SCREW Part #: 7519650 Currently Not Available
6	SCREW Part #: 7519840 Required per assembly: 2 Currently Not Available
7	SCREW Part #: 7519841 Required per assembly: 2 Currently Not Available
8	NUT, U-TYPE Part #: 7547674 ~~$2.99~~ $1.73 - + Add to cart
9	GROMMET, LATCH Part #: 5413428 Required per assembly: 2 Currently Not Available
10	HOOD-CENTER, PNT, SP, ORG Part #: 5452494-697 Required per assembly: 1 Note: NU Currently Not Available
10	ASM-HOOD, CENTER, PNT, CR.BLACK Part #: 2635941-266 Required per assembly: 1 Note: NB Currently Not Available
11	LATCH-1/4 TURN Part #: 5439798 Required per assembly: 2 Currently Not Available
12	WASHER Part #: 7555919 Required per assembly: 2 Note: Washer Currently Not Available
13	SCREW Part #: 7518238 Required per assembly: 2 ~~$3.79~~ $1.73 - + Add to cart
14	PALNUT, 7/16-20, STEEL Part #: 7710849 Required per assembly: 1 Currently Not Available
15	GRILLE-CENTER, HOOD, BLK Part #: 5452038-070 Required per assembly: 1 Currently Not Available
