Front Shock Mounting - Z18vfe99ak/Aw/Bk/Bw/Lw/K99ak/Bk/M99al (702034) replacement parts for 2018 Polaris RZR XP 4 1000 (R01)

OEM Parts Polaris 2018 Polaris RZR XP 4 1000 (R01) Front Shock Mounting - Z18vfe99ak/Aw/Bk/Bw/Lw/K99ak/Bk/M99al (702034)

FRONT SHOCK MOUNTING - Z18VFE99AK/AW/BK/BW/LW/K99AK/BK/M99AL (702034) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
1	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
2	WASHER, FLAT Part #: 7556153 Required per assembly: 4 Note: Washer ~~$3.99~~ $2.30 - + Add to cart
2	WASHER, FLAT Part #: 7556153 Required per assembly: 4 Note: Washer ~~$3.99~~ $2.30 - + Add to cart
3	SPACER, SPRING Part #: 5450644 Required per assembly: 2 Currently Not Available
4	RETAINER-SPRING, CAST Part #: 5634606 Required per assembly: 2 Currently Not Available
5	SHOCK-FRT, RZRXP, PIGGYBK, MP, RH Part #: 7044892 Required per assembly: 2 Currently Not Available
5	SHOCK-FRT, RZRXP4, HC, PIGGYBK, LH Part #: 7044897 Required per assembly: 1 Note: M99AL Currently Not Available
5	SHOCK-FRT, RZRXP, PIGGYBK, MP, LH Part #: 7044891 Required per assembly: 2 Currently Not Available
5	SHOCK-FRT, RZRXP4, HC, PIGGYBK, RH Part #: 7044898 Required per assembly: 1 Note: M99AL Currently Not Available
6	SPR-325, 13.25FL, 3.04-3.04ID, OM Part #: 7044600-647 Required per assembly: 2 Note: M99AL Currently Not Available

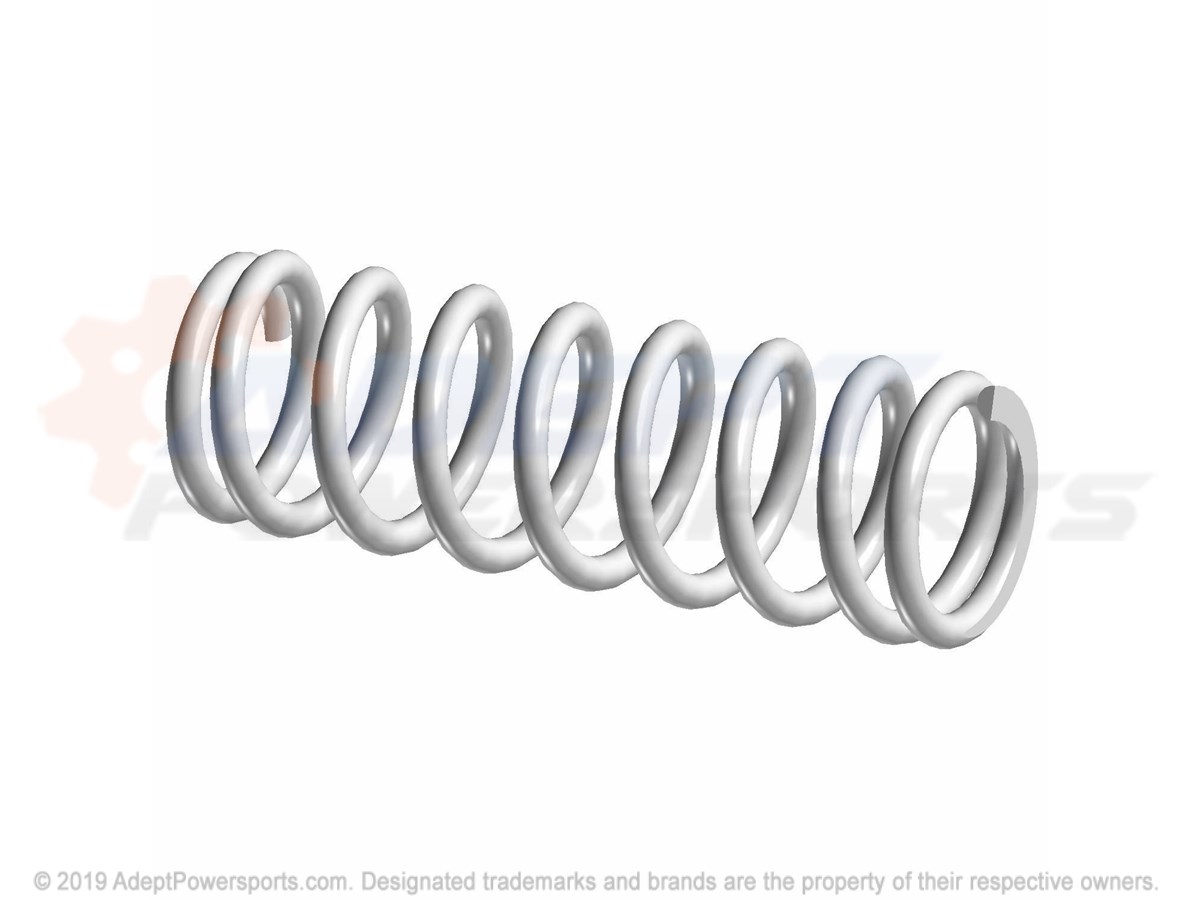

6	SPRING, BRIGHT, WHITE Part #: 7044114-133 Required per assembly: 2 Note: E99AW Currently Not Available
6	SPR-335#, 10.25FL, 3.04-3.04ID, R Part #: 7044114-293 Required per assembly: 2 Note: E99AK Currently Not Available
7	SPR-280#, 6.1FL, 3.04-3.04ID, RED Part #: 7044115-293 Required per assembly: 2 Note: E99AK ~~$129.17~~ $80.96 - + Add to cart
7	SPG-350#, 3.38FL, 3.04-3.04ID, OR Part #: 7044286-647 Required per assembly: 2 Note: M99AL Currently Not Available
7	SPRING, BRIGHT, WHITE Part #: 7044115-133 Required per assembly: 2 Note: E99AW Currently Not Available
8	SCR-HXFL-M10X1.25X55 10.9 ZOD Part #: 7519285 Required per assembly: 4 Currently Not Available
8	SCR-HXFL-M10X1.25X55 10.9 ZOD Part #: 7519285 Required per assembly: 4 Currently Not Available
