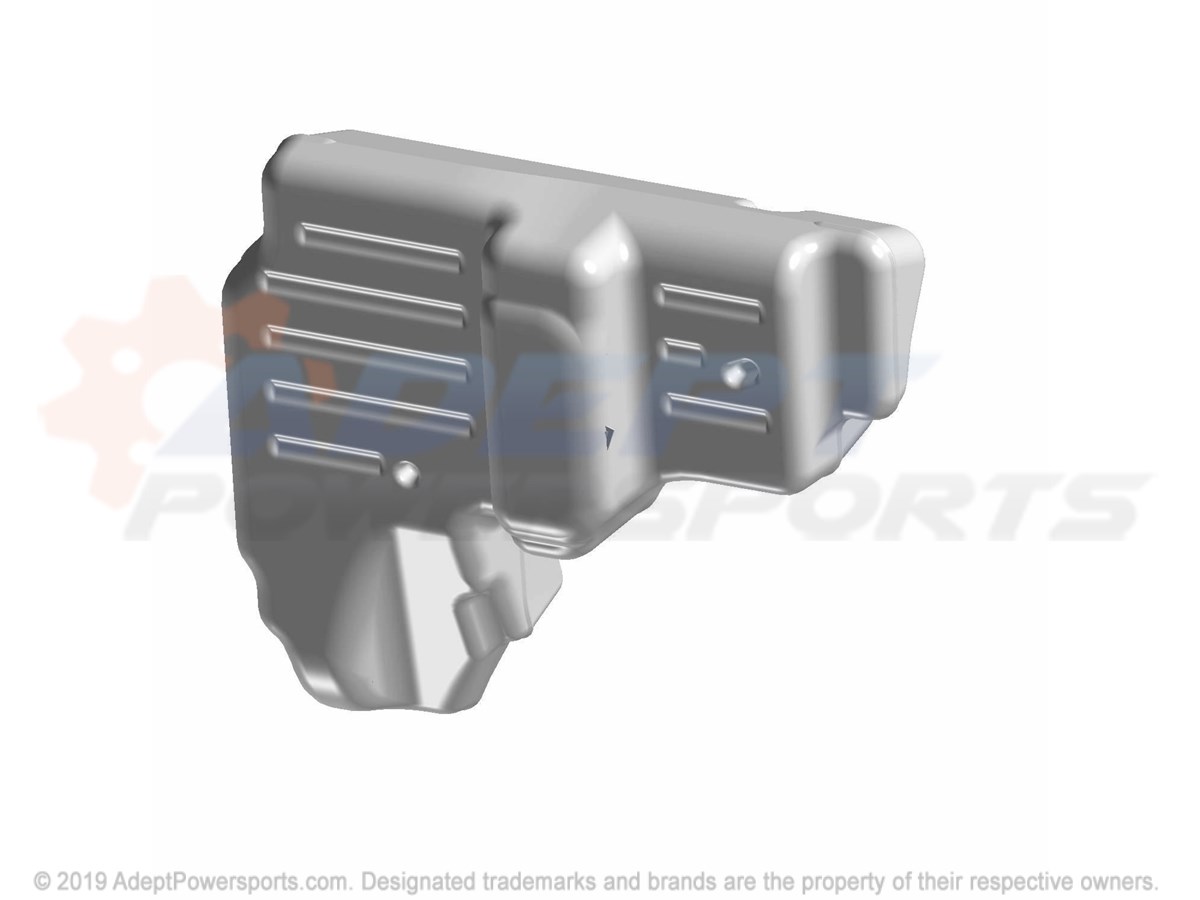

FUEL TANK - Z18VHA57B2 (701894) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASM-FUEL TANK Part #: 2521703 Required per assembly: 1 Note: INCL. PUMP Currently Not Available
3	PAD, BATTERY Part #: 5810290 Required per assembly: 3 Currently Not Available
4	BRACKET, TANK, REAR Part #: 5253844 Required per assembly: 1 Currently Not Available
5	CLIP-ROUTING Part #: 7670109 Required per assembly: 1 Note: Clip, Routing Currently Not Available
6	BRACKET, TANK, FRONT Part #: 5258646 Required per assembly: 1 Currently Not Available
7	ASM-FUEL LINE Part #: 2521272 Required per assembly: 1 Currently Not Available
8	T-CLIP T15 Part #: 7081689 Required per assembly: 2 Currently Not Available
9	CLIP, LINE Part #: 7081807 Required per assembly: 1 Currently Not Available
10	CAP-GAS TANK Part #: 2521934 Required per assembly: 1 Currently Not Available
11	SCREW Part #: 7518529 Required per assembly: 2 ~~$2.99~~ $1.73 - + Add to cart
12	FITTING-VENT LINE Part #: 5453465 Required per assembly: 1 Currently Not Available
13	CLIP, PLASTIC Part #: 4020139 Required per assembly: 1 Note: Clip, Rosebud Currently Not Available
14	SCREW Part #: 7512025 Required per assembly: 2 Currently Not Available
15	FUEL LINE-72 CENTIMETERS Part #: 8450040-72 Required per assembly: 1 Currently Not Available
