Rear Shock Mounting - Z18vhe57bv (49Rgrshockmtgrr14rzr570) replacement parts for 2018 Polaris RZR 570 PS (R01)

OEM Parts Polaris 2018 Polaris RZR 570 PS (R01) Rear Shock Mounting - Z18vhe57bv (49Rgrshockmtgrr14rzr570)

REAR SHOCK MOUNTING - Z18VHE57BV (49RGRSHOCKMTGRR14RZR570) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
1	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
2	RETAINER, SPRING Part #: 5251753 Required per assembly: 2 Currently Not Available
3	SCR-HXFL-M10X1.25X55 10.9 ZOD Part #: 7519285 Required per assembly: 2 Currently Not Available

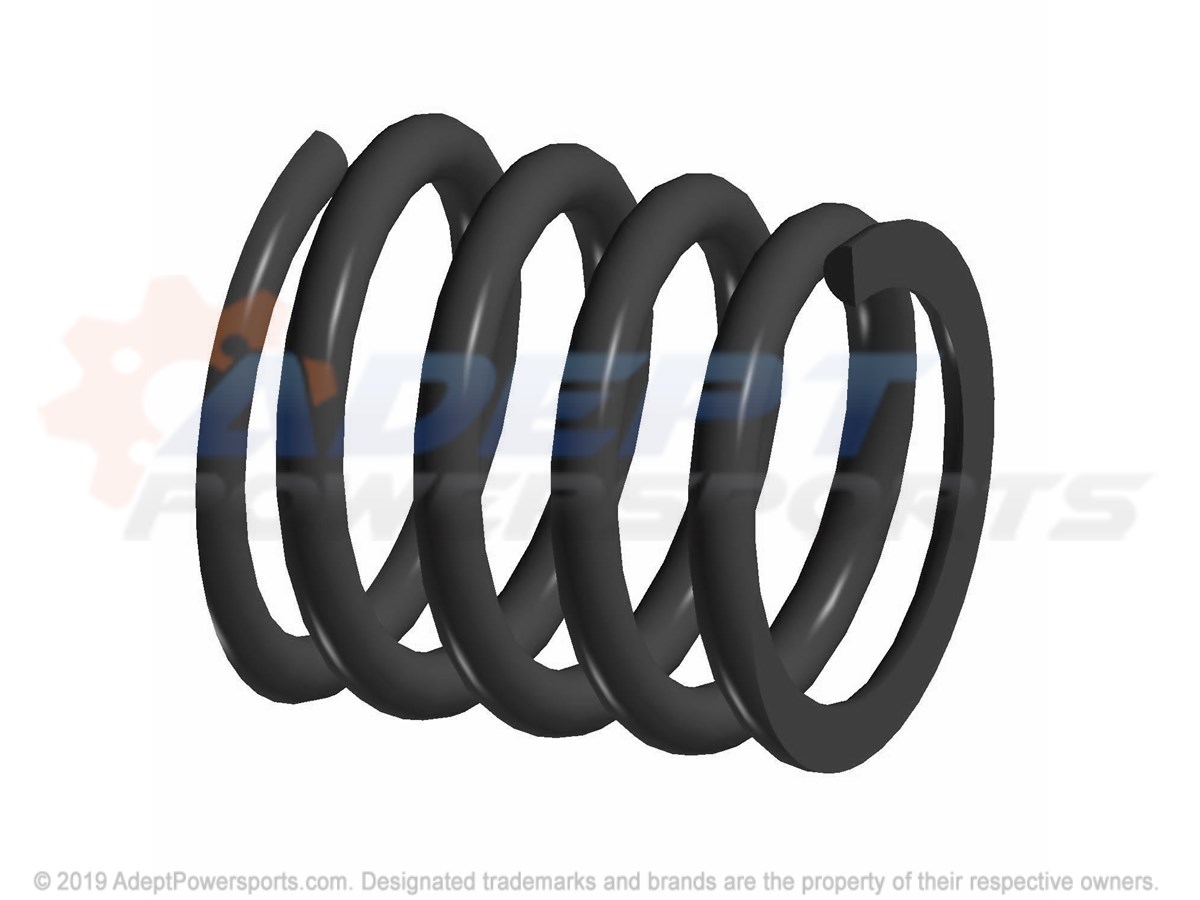

4	SPRING-330#, 10.8FL, LIME, SQUEEZ Part #: 7044054-630 Required per assembly: 2 Currently Not Available
5	CAM-ADJUSTING SPRING STEEL Part #: 5253768 Required per assembly: 2 Currently Not Available
6	SHOCK, REAR Part #: 7044093 Required per assembly: 2 Currently Not Available
7	SCREW Part #: 7518610 Required per assembly: 2 Note: Bolt, Flange Currently Not Available
8	SPR-300#, 2.9FL, 2.06-2.3ID, LIME Part #: 7044158-630 Required per assembly: 2 Currently Not Available
9	SPACER-SPRING NYLON 2" Part #: 5438839 Required per assembly: 2 Currently Not Available
