Propulsion Wake - 155 replacement parts for 2018 Sea Doo Wake 155

OEM Parts Sea Doo 2018 Sea Doo Wake 155 Propulsion Wake - 155

Propulsion Wake - 155 Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

10	PUMP SUPPORT Part #: 271001964 Required per assembly: 1 Currently Not Available
20	STUD-SQUARE Part #: 250300046 Required per assembly: 4 Currently Not Available
50	FLAT WASHER Part #: 279000336 Required per assembly: 2 Currently Not Available
60	HEX., ELASTIC, NUT, M8, BRASS Part #: 232581200 Required per assembly: 4 Currently Not Available
70	FLAT WASHER Part #: 293050001 Required per assembly: 4 Currently Not Available
80	HEX., ELASTIC, NUT, M8, BRASS Part #: 232581200 Required per assembly: 4 Currently Not Available
90	REDUCER Part #: 271002029 Required per assembly: 1 Currently Not Available
100	WATERTIGHT SEAL Part #: 293250084 Required per assembly: 2 Currently Not Available
120	RIDING PLATE ASSEMBLY. Part #: 271001860 Required per assembly: 1 Currently Not Available
120a	SEAL Part #: 293250235 Required per assembly: 1 Currently Not Available
120b	SEALING WASHER 1/4 Part #: 250200114 Required per assembly: 16 $3.58 $2.90 - + Add to cart
120c	SCREW-TORX BUTTON HEAD M6 X 14 Part #: 250000384 Required per assembly: 40 $6.29 $5.09 - + Add to cart
120d	PLUG-DRAIN M6X12 DIN.912A2 SS-304 Part #: 250500005 Required per assembly: 1 $13.49 $10.93 - + Add to cart
140	O-RING Part #: 293300121 Required per assembly: 2 Currently Not Available
150	STRAIGHT PLASTIC FITTING Part #: 293710166 Required per assembly: 2 Currently Not Available
160	ANODE ZINC Part #: 271001920 Required per assembly: 1 Currently Not Available
170	HEX SEMS SCREW M6 X 20 Part #: 250000965 Required per assembly: 1 Currently Not Available
185	GASKET, NEOPRENE. Part #: 293250087 Required per assembly: 2 Note: 1 meter Currently Not Available
190	HEXAGONAL HEAD CAP SCREW M8 X 45 Part #: 250000782 Required per assembly: 2 $2.58 $2.09 - + Add to cart
195	HEXAGONAL HEAD CAP SCREW M8 X 45 Part #: 250000782 Required per assembly: 4 $2.58 $2.09 - + Add to cart
196	FLAT WASHER Part #: 293050001 Required per assembly: 6 Currently Not Available
197	FLAT WASHER Part #: 279000336 Required per assembly: 6 Currently Not Available
199	HEX., ELASTIC, NUT, M8, BRASS Part #: 232581200 Required per assembly: 6 Currently Not Available
200	PUMP GRATE Part #: 271001969 Required per assembly: 1 Currently Not Available
220	HEX., SCREW, M8, X, 16, SCOTCH, GRIP Part #: 207381660 Required per assembly: 3 $0.84 $0.68 - + Add to cart
221	FLAT WASHER 8 MM, STAINLESS Part #: 234081600 Required per assembly: 3 $1.25 $0.79 - + Add to cart
222	HEXAGONAL HEAD CAP SCREW M8 X 45 Part #: 250000782 Required per assembly: 1 $2.58 $2.09 - + Add to cart
223	FLAT WASHER Part #: 293050001 Required per assembly: 1 Currently Not Available
224	FLAT WASHER Part #: 279000336 Required per assembly: 1 Currently Not Available
225	HEX., ELASTIC, NUT, M8, BRASS Part #: 232581200 Required per assembly: 1 Currently Not Available
226	PROTECTOR DISK Part #: 293830047 Required per assembly: 1 Currently Not Available

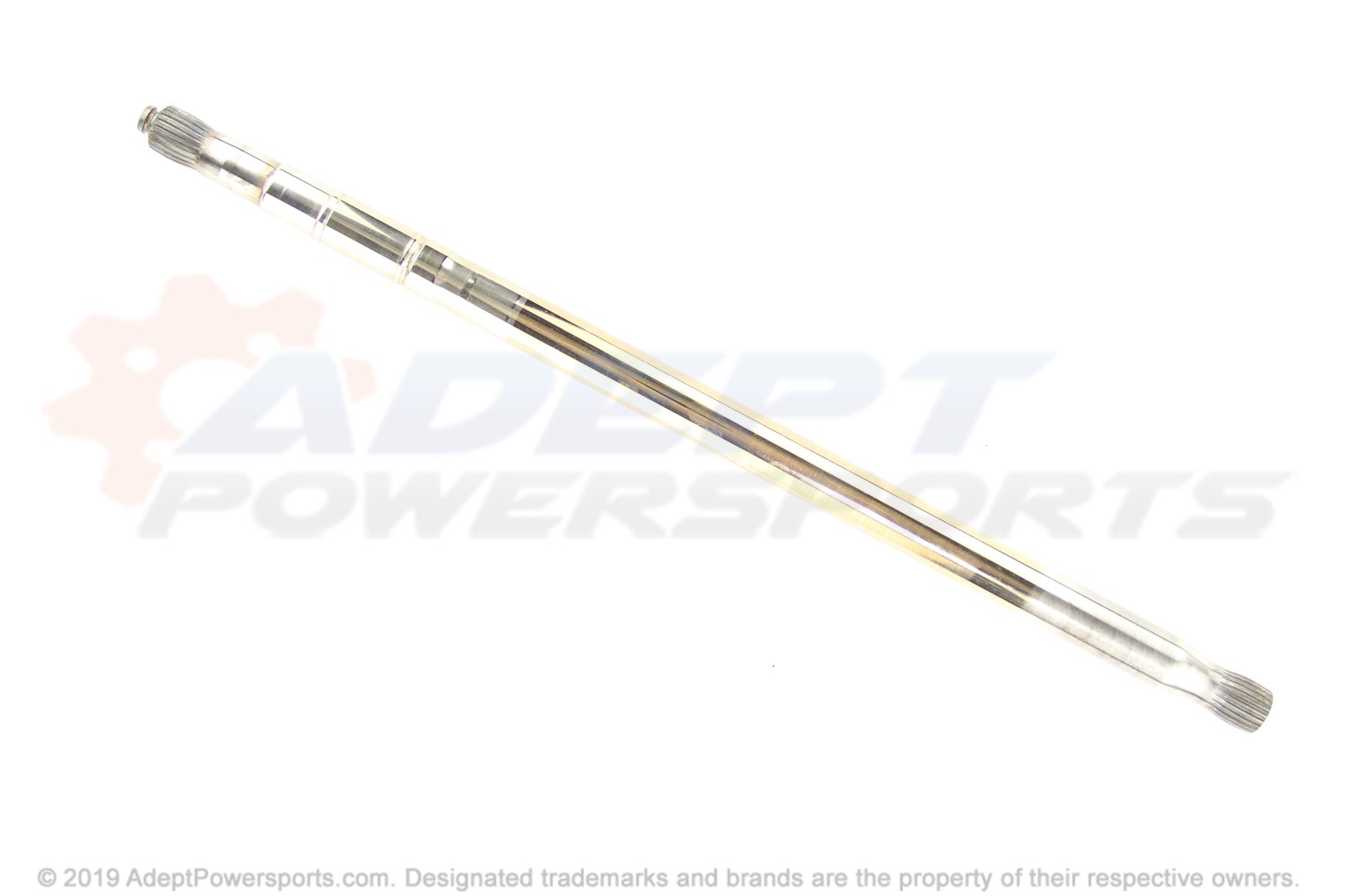

230a	DRIVE SHAFT Part #: 271002004 Required per assembly: 1 Currently Not Available
230b	CARBON RING KIT Part #: 295501197 Required per assembly: 1 Currently Not Available
230c	CLIP "C" Part #: 271001575 Required per assembly: 1 Currently Not Available
230d	O-RING Part #: 293300044 Required per assembly: 2 $0.84 $0.68 - + Add to cart
240	DRIVE SHAFT PLUG Part #: 272000173 Required per assembly: 1 Currently Not Available
275	BELLOW ADAPTOR Part #: 271002045 Required per assembly: 1 Currently Not Available
280	BELLOW Part #: 271001933 Required per assembly: 1 Currently Not Available
290	NORMA CLAMP Part #: 293650079 Required per assembly: 2 Note: Sold in multiples of 2 only Currently Not Available
1000a	HOUSING IMPELLER ANODIZED Part #: 271002018 Required per assembly: 1 Currently Not Available
1000b	WEAR RING Part #: 267000419 Required per assembly: 1 Note: Model GTI 155, GTI SE 130, GTI SE 155, GTI LTD 155 Currently Not Available
1020	PLUG, PLASTIC, BLACK Part #: 267000469 Required per assembly: 1 Currently Not Available
1030	NEOPRENE SEAL Part #: 293200087 Required per assembly: 1 Currently Not Available
1040	OUTLET-WATER Part #: 271000785 Required per assembly: 1 Currently Not Available
1050	PLUG Part #: 267000282 Required per assembly: 1 $14.49 $11.74 - + Add to cart
1060	SHAFT-IMPELLER Part #: 267000388 Required per assembly: 1 Currently Not Available
1070	ANGLED BEARING Part #: 267000900 Required per assembly: 1 Currently Not Available
1080	NUT-FLANGE ELASTIC DIN.6926 Part #: 250100104 Required per assembly: 1 Note: Sold in multiples of 2 only Currently Not Available
1100	O-RING Part #: 293300090 Required per assembly: 1 Currently Not Available
1110	SEAL Part #: 271002071 Required per assembly: 1 Currently Not Available
1120	SPACER Part #: 271001393 Required per assembly: 1 Currently Not Available
1130	OIL SEAL Part #: 293200089 Required per assembly: 1 Currently Not Available
1140	CIRCLIP Part #: 293370038 Required per assembly: 1 Currently Not Available
1160	IMPELLER ASSEMBLY. Part #: 267001019 Required per assembly: 1 Currently Not Available
1160a	O-RING Part #: 293300044 Required per assembly: 1 $0.84 $0.68 - + Add to cart
1170	BOOT-IMPELLER Part #: 267000206 Required per assembly: 1 Currently Not Available
1210	COVER-IMPELLER Part #: 267000428 Required per assembly: 1 Currently Not Available
1220	O-RING Part #: 293300086 Required per assembly: 2 Currently Not Available
1230	SOCKET, HEAD, SCREW, M6, X, 25, SCOTCH, GRIP Part #: 205562560 Required per assembly: 3 $1.66 $1.34 - + Add to cart
1240	FLAT WASHER M6, STAINLESS Part #: 234061600 Required per assembly: 3 $0.79 $0.68 - + Add to cart
1250a	BLACK VENTURI Part #: 267000864 Required per assembly: 1 Note: SIPHON TUBE (P/N 271001885) sold separately Currently Not Available
1250b	TUBE-SIPHON Part #: 271001885 Required per assembly: 2 $2.06 $1.67 - + Add to cart
1260	O-RING Part #: 293300013 Required per assembly: 2 $6.78 $4.94 - + Add to cart
1280	ANODE ZINC Part #: 271001920 Required per assembly: 1 Currently Not Available
1290	HEX SEMS SCREW M6 X 20 Part #: 250000965 Required per assembly: 1 Currently Not Available
