Crankcase replacement parts for 2018 Yamaha MT07

OEM Parts Yamaha 2018 Yamaha MT07 Crankcase

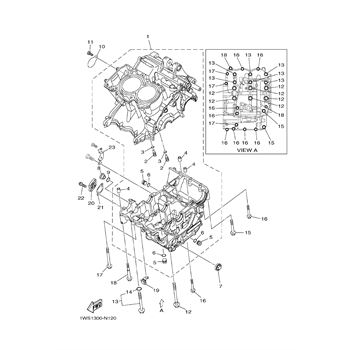

CRANKCASE Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	CRANKCASE ASSEMBLY SET Part #: 99999-04404-00 Required per assembly: 1 $2,340.01 $2,165.28 - + Add to cart
2	NOZZLE 3 Part #: 5EB-15155-00-00 Required per assembly: 2 $15.49 $12.79 - + Add to cart
3	O-RING Part #: 93210-04092-00 Required per assembly: 2 $4.04 $2.83 - + Add to cart
4	PIN, DOWEL, (3VD) Part #: 99530-10114-00 Required per assembly: 3 $2.64 $2.24 - + Add to cart
5	PLUG Part #: 90338-16262-00 Required per assembly: 3 $16.48 $10.98 - + Add to cart
6	O-RING Part #: 93210-12790-00 Required per assembly: 3 $8.49 $5.65 - + Add to cart
7	GAUGE, LEVEL Part #: 2H7-15361-00-00 Required per assembly: 1 $105.98 $86.73 - + Add to cart
8	PLUG Part #: 36Y-15189-01-00 Required per assembly: 1 $15.49 $11.82 - + Add to cart
9	O-RING Part #: 93210-16325-00 Required per assembly: 1 $8.49 $5.76 - + Add to cart
10	PLUG Part #: 1WS-15189-00-00 Required per assembly: 1 $7.49 $6.27 - + Add to cart
11	BOLT Part #: 97012-06014-00 Required per assembly: 1 $8.49 $6.12 - + Add to cart
12	BOLT, WITH, WASHER Part #: 90119-09014-00 Required per assembly: 6 $13.49 $11.40 - + Add to cart
13	BOLT, CRANKCASE, JOURNAL Part #: 1WS-15156-00-00 Required per assembly: 6 $8.49 $6.05 - + Add to cart
14	O-RING Part #: 93210-07540-00 Required per assembly: 1 $7.49 $5.67 - + Add to cart
15	BOLT, WASHER, BASED Part #: 95814-08065-00 Required per assembly: 2 $5.49 $3.46 - + Add to cart
16	BOLT, FLANGE Part #: 95817-06040-00 Required per assembly: 8 $6.49 $4.46 - + Add to cart
17	BOLT, FLANGE Part #: 95812-06060-00 Required per assembly: 3 $3.50 $2.63 - + Add to cart
18	BOLT Part #: 90109-06100-00 Required per assembly: 2 $9.49 $7.47 - + Add to cart
19	CLAMP Part #: 90462-10064-00 Required per assembly: 1 $6.49 $5.03 - + Add to cart
20	COVER, OIL, PUMP Part #: 1WS-15416-00-00 Required per assembly: 1 $28.98 $20.44 - + Add to cart
21	GASKET, OIL, PUMP, COVER, 1 Part #: 1WS-15456-01-00 Required per assembly: 1 $7.49 $5.91 - + Add to cart
22	BOLT, HEXAGON, SOCKET, HEAD Part #: 90110-06396-00 Required per assembly: 2 $3.20 $2.45 - + Add to cart
23	HOLDER Part #: 1WS-15128-00-00 Required per assembly: 1 $6.49 $5.29 - + Add to cart
