Front Fork replacement parts for 2018 Yamaha MT09

OEM Parts Yamaha 2018 Yamaha MT09 Front Fork

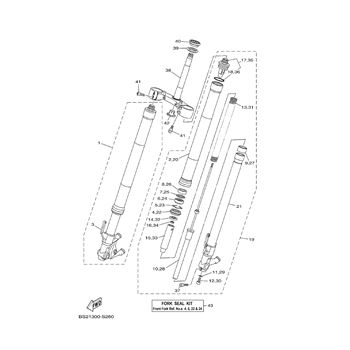

FRONT FORK Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	FRONT FORK ASSEMBLY (R.H) Part #: BS2-23103-00-00 Required per assembly: 1 $1,065.83 $977.93 - + Add to cart
2	TUBE, OUTER, (L.H) Part #: 1RC-23126-40-00 Required per assembly: 1 $395.99 $387.03 - + Add to cart
3	INNER TUBE COMP.2 Part #: BS2-23120-00-00 Required per assembly: 1 $340.71 - + Add to cart
4	SEAL, DUST Part #: 4EB-23144-00-00 Required per assembly: 1 $24.98 $19.14 - + Add to cart
5	RING, SNAP Part #: 26H-23156-00-00 Required per assembly: 1 $8.49 $6.49 - + Add to cart
6	OIL SEAL Part #: 4EB-23145-01-00 Required per assembly: 1 $31.98 $23.83 - + Add to cart
7	WASHER, OIL, SEAL Part #: 36Y-23146-10-00 Required per assembly: 1 $30.98 $21.68 - + Add to cart
8	METAL, SLIDE, 1 Part #: 1RC-23125-00-00 Required per assembly: 1 $16.48 $12.17 - + Add to cart
9	METAL, SLIDE Part #: 4FM-23171-40-00 Required per assembly: 1 $25.98 $20.02 - + Add to cart
10	CYLINDER, COMP., FRONT, FORK Part #: BS2-23170-10-00 Required per assembly: 1 $297.99 $292.65 - + Add to cart
11	GASKET Part #: 509-23158-L0-00 Required per assembly: 1 $17.98 $14.09 - + Add to cart
12	BOLT, HEXAGON, SOCKET, HEAD Part #: 3D8-23181-00-00 Required per assembly: 1 $9.49 $7.50 - + Add to cart
13	SPRING, FRONT, FORK Part #: 1RC-23141-00-00 Required per assembly: 1 $73.98 $66.86 - + Add to cart
14	WASHER Part #: 5VY-12277-00-00 Required per assembly: 1 $14.49 $10.18 - + Add to cart
15	SPACER Part #: 1RC-23118-00-00 Required per assembly: 1 $15.49 $13.05 - + Add to cart
16	NUT Part #: 3LC-23357-00-00 Required per assembly: 1 $7.49 $6.31 - + Add to cart
17	BOLT, CAP Part #: BS2-23111-10-00 Required per assembly: 1 $261.99 $256.99 - + Add to cart
18	O-RING Part #: 3XJ-23147-L0-00 Required per assembly: 1 $8.49 $6.74 - + Add to cart
19	FRONT FORK ASSEMBLY (L.H) Part #: BS2-23102-00-00 Required per assembly: 1 Not Available
20	TUBE, OUTER, (L.H) Part #: 1RC-23126-40-00 Required per assembly: 1 $395.99 $387.03 - + Add to cart
21	INNER TUBE COMP.1 Part #: BS2-23110-01-00 Required per assembly: 1 $403.99 $394.04 - + Add to cart
22	SEAL, DUST Part #: 4EB-23144-00-00 Required per assembly: 1 $24.98 $19.14 - + Add to cart
23	RING, SNAP Part #: 26H-23156-00-00 Required per assembly: 1 $8.49 $6.49 - + Add to cart
24	OIL SEAL Part #: 4EB-23145-01-00 Required per assembly: 1 $31.98 $23.83 - + Add to cart
25	WASHER, OIL, SEAL Part #: 36Y-23146-10-00 Required per assembly: 1 $30.98 $21.68 - + Add to cart
26	METAL, SLIDE, 1 Part #: 1RC-23125-00-00 Required per assembly: 1 $16.48 $12.17 - + Add to cart
27	METAL, SLIDE Part #: 4FM-23171-40-00 Required per assembly: 1 $25.98 $20.02 - + Add to cart
28	CYLINDER, COMP., FRONT, FORK Part #: BS2-23170-00-00 Required per assembly: 1 $261.99 $256.80 - + Add to cart
29	GASKET Part #: 509-23158-L0-00 Required per assembly: 1 $17.98 $14.09 - + Add to cart
30	BOLT, HEXAGON, SOCKET, HEAD Part #: 3D8-23181-00-00 Required per assembly: 1 $9.49 $7.50 - + Add to cart
31	SPRING, FRONT, FORK Part #: 1RC-23141-00-00 Required per assembly: 1 $73.98 $66.86 - + Add to cart
32	WASHER Part #: 5VY-12277-00-00 Required per assembly: 1 $14.49 $10.18 - + Add to cart
33	SPACER Part #: 1RC-23118-00-00 Required per assembly: 1 $15.49 $13.05 - + Add to cart
34	NUT Part #: 3LC-23357-00-00 Required per assembly: 1 $7.49 $6.31 - + Add to cart
35	BOLT, CAP Part #: BS2-23111-00-00 Required per assembly: 1 $255.99 $251.23 - + Add to cart
36	O-RING Part #: 3XJ-23147-L0-00 Required per assembly: 1 $8.49 $6.74 - + Add to cart
37	BOLT, HEXAGON, SOCKET, HEAD Part #: 91314-08035-00 Required per assembly: 1 $2.70 $2.51 - + Add to cart
38	UNDER BRACKET COMP. Part #: 1RC-23340-11-00 Required per assembly: 1 $542.99 $514.47 - + Add to cart
39	SEAL, STEERING Part #: 3FV-23462-00-00 Required per assembly: 1 $26.98 $21.26 - + Add to cart
40	BEARING, SPECIAL Part #: 93399-99932-00 Required per assembly: 1 $69.98 $55.57 - + Add to cart
41	BOLT, HEXAGON, SOCKET, HEAD Part #: 91314-08030-00 Required per assembly: 4 $2.54 $2.25 - + Add to cart
42	COVER, UNDER, 1 Part #: 4KM-23123-01-00 Required per assembly: 1 $15.49 $13.06 - + Add to cart
43	FORK SEALS KIT Part #: 4EB-W003B-00-00 Required per assembly: 1 $41.99 $37.74 - + Add to cart
