Front Fork replacement parts for 2019 Honda PCX150

OEM Parts Honda 2019 Honda PCX150 Front Fork

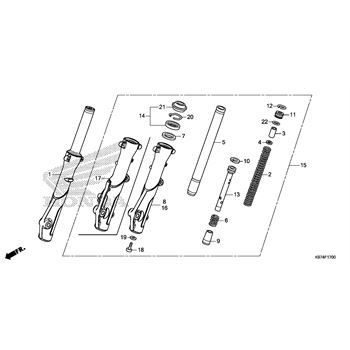

FRONT FORK Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

F 17
001	FORK, ASSEMBLY, R., FR. Part #: 51400-K96-T01 Required per assembly: 1 $84.84 $67.66 - + Add to cart
002	SPRING, FR., FORK Part #: 51401-K97-T01 Required per assembly: 2 $9.13 $8.84 - + Add to cart
003	COLLAR, SPRING Part #: 51402-K97-T01 Required per assembly: 2 $1.99 $1.84 - + Add to cart
004	PLATE, SPRING, JOINT Part #: 51403-KW6-961 Required per assembly: 2 $2.49 $2.31 - + Add to cart
005	PIPE, FR., FORK Part #: 51410-K97-T01 Required per assembly: 2 $56.45 $45.02 - + Add to cart
006	SPRING, FR. Part #: 51412-GC4-003 Required per assembly: 2 $7.22 $6.34 - + Add to cart
007	RING, BACK-UP Part #: 51412-KK4-003 Required per assembly: 2 $7.94 $6.92 - + Add to cart
008	CASE, R., FR., (LOWER) Part #: 51420-K96-T01 Required per assembly: 1 $34.78 $27.74 - + Add to cart
009	PIECE, OIL, LOCK Part #: 51432-KM7-910 Required per assembly: 2 $22.18 $17.95 - + Add to cart
010	RING, PISTON Part #: 51437-GS3-003 Required per assembly: 2 $9.36 $8.08 - + Add to cart
011	SEAT, SPRING, (UPPER) Part #: 51454-KWN-711 Required per assembly: 2 $55.09 $43.94 - + Add to cart
012	RING, STOPPER Part #: 51456-355-003 Required per assembly: 2 $7.75 $6.76 - + Add to cart
013	PIPE, SEAT Part #: 51470-KWN-901 Required per assembly: 2 $11.45 $9.64 - + Add to cart
014	SEAL, SET, FR., FORK Part #: 51490-KRM-852 Required per assembly: 2 $24.38 $20.33 - + Add to cart
015	FORK, ASSEMBLY, L., FR. Part #: 51500-K96-T02 Required per assembly: 1 $78.93 $62.94 - + Add to cart
016	CASE, L., FR., (LOWER) Part #: 51520-K96-T01 Required per assembly: 1 $31.84 $25.39 - + Add to cart
018	BOLT, SOCKET, (8X27) Part #: 90116-383-721 Required per assembly: 2 $6.04 $5.49 - + Add to cart
019	WASHER (8MM) Part #: 90544-283-000 Required per assembly: 2 $3.89 $3.54 - + Add to cart
020	RING, OIL, SEAL, STOP Part #: 90601-354-000 Required per assembly: 2 $6.04 $5.49 - + Add to cart
021	DUST SEAL Part #: 91254-GAA-003 Required per assembly: 2 $19.71 $16.43 - + Add to cart
022	O-RING Part #: 91356-GBB-003 Required per assembly: 2 $1.95 $1.80 - + Add to cart
