OEM Parts Honda 2019 Honda SXS1000M5L Mark

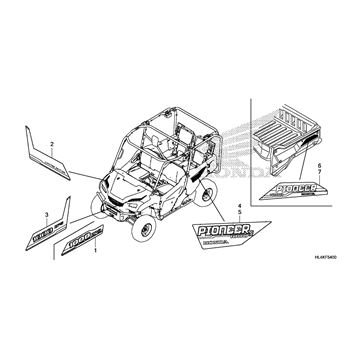

2019 Honda SXS1000M5L Pioneer 1000-5 Limited Edition - Mark

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
F 54
002

MARK, R., FR., FENDER, (TYPE1)

Part #: 86611-HL4-F40ZA Required per assembly: 1
$17.93
$14.30
-
+
Add to cart
003

MARK, L., FR., FENDER, (TYPE1)

Part #: 86612-HL4-F40ZA Required per assembly: 1
$20.16
$16.08
-
+
Add to cart
004

MARK, R., RR., DOOR, PANEL, (TYPE1)

Part #: 86731-HL4-F40ZA Required per assembly: 1
$52.47
$41.85
-
+
Add to cart
005

MARK, L., RR., DOOR, PANEL, (TYPE1)

Part #: 86732-HL4-F40ZA Required per assembly: 1
$52.47
$41.85
-
+
Add to cart
