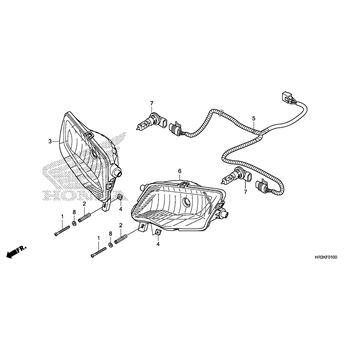

2019 Honda TRX420FA2 FourTrax Rancher 4x4 - Headlight

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
F 01
001

SCREW, PAN, (4X55)

Part #: 33103-KSC-670 Required per assembly: 2
$2.44
$2.26
002

SPRING

Part #: 33107-KAE-771 Required per assembly: 2
$3.66
$3.33
003

HEADLIGHT, UNIT, R.

Part #: 33110-HR3-A20 Required per assembly: 1
$48.20
$34.83
004

NUT, BEAM, ADJUSTING

Part #: 33117-KBR-730 Required per assembly: 2
$4.22
$3.84
005

SUB-HARNESS

Part #: 33130-HR6-A60 Required per assembly: 1
$19.75
$15.75
006

HEADLIGHT, UNIT, L.

Part #: 33160-HR3-A20 Required per assembly: 1
$48.20
$40.22
007

BULB (12V 35/35W)

Part #: 34901-HR3-A21 Required per assembly: 2
$24.71
$20.42
008

WASHER, PLAIN, (4MM)

Part #: 94103-04000 Required per assembly: 2
$1.78
$1.64
