Cooling System replacement parts for 2019 Polaris ACE 500 SOHC (R04)

OEM Parts Polaris 2019 Polaris ACE 500 SOHC (R04) Cooling System

COOLING SYSTEM Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASM-RADIATOR, CORE Part #: 1241012 Required per assembly: 1 Currently Not Available
2	ASM-FAN AND MOTOR TRIPAC SGL Part #: 2411330 Required per assembly: 1 Currently Not Available
3	SPACER Part #: 5137361 Required per assembly: 4 Currently Not Available
4	BUSHING, MT, LOW, RED Part #: 5410584 Required per assembly: 2 Currently Not Available
5	SCREW, FLANGE Part #: 7516827 Required per assembly: 4 Note: Screw, Flange Currently Not Available
6	CAP, PRESSURE Part #: 1240300 Required per assembly: 1 Currently Not Available

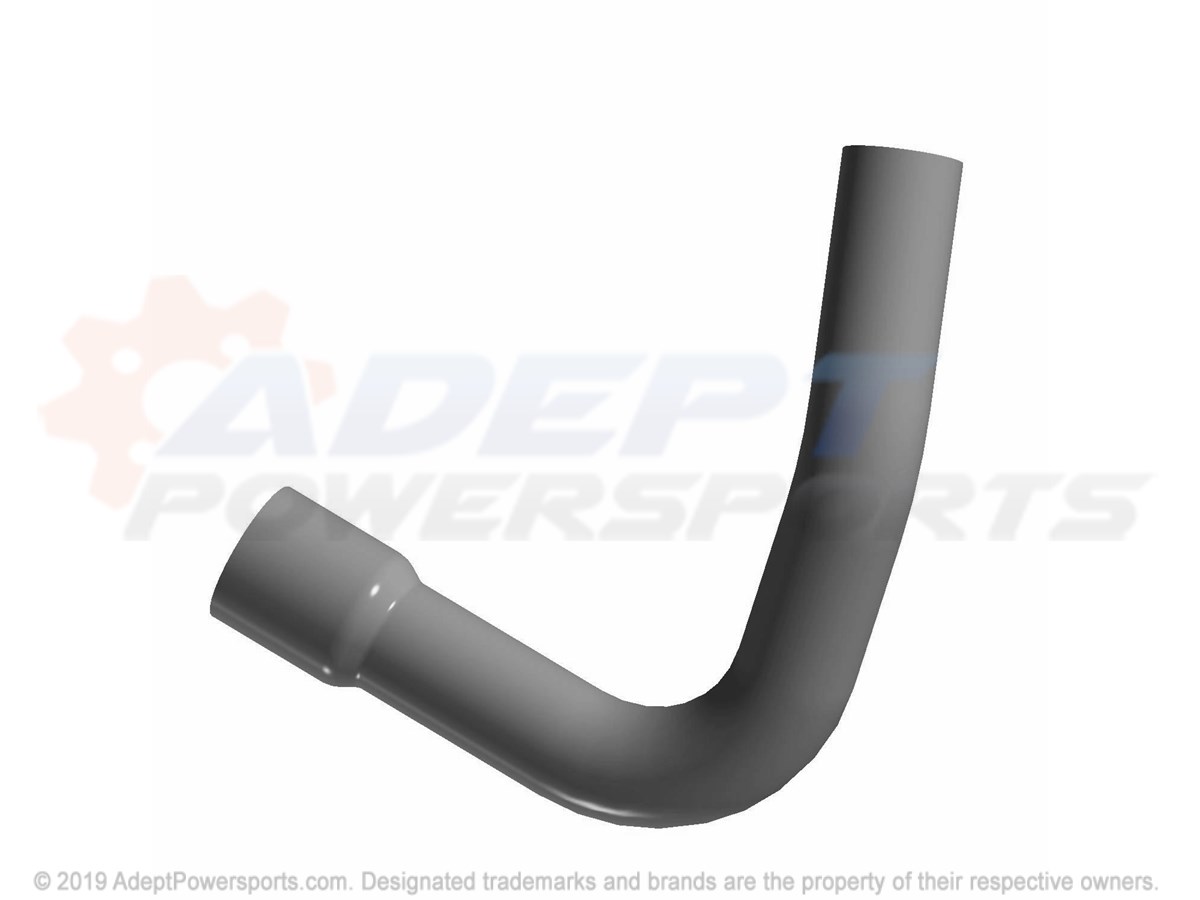

7	TUBE-COOLANT, 3/4, ENG, OUT Part #: 5140811 Required per assembly: 1 Currently Not Available
8	HOSE-COOLANT, REAR, ENG, OUT Part #: 5416035 Required per assembly: 1 Currently Not Available
9	HOSE-COOLANT Part #: 5415709 Required per assembly: 1 Currently Not Available

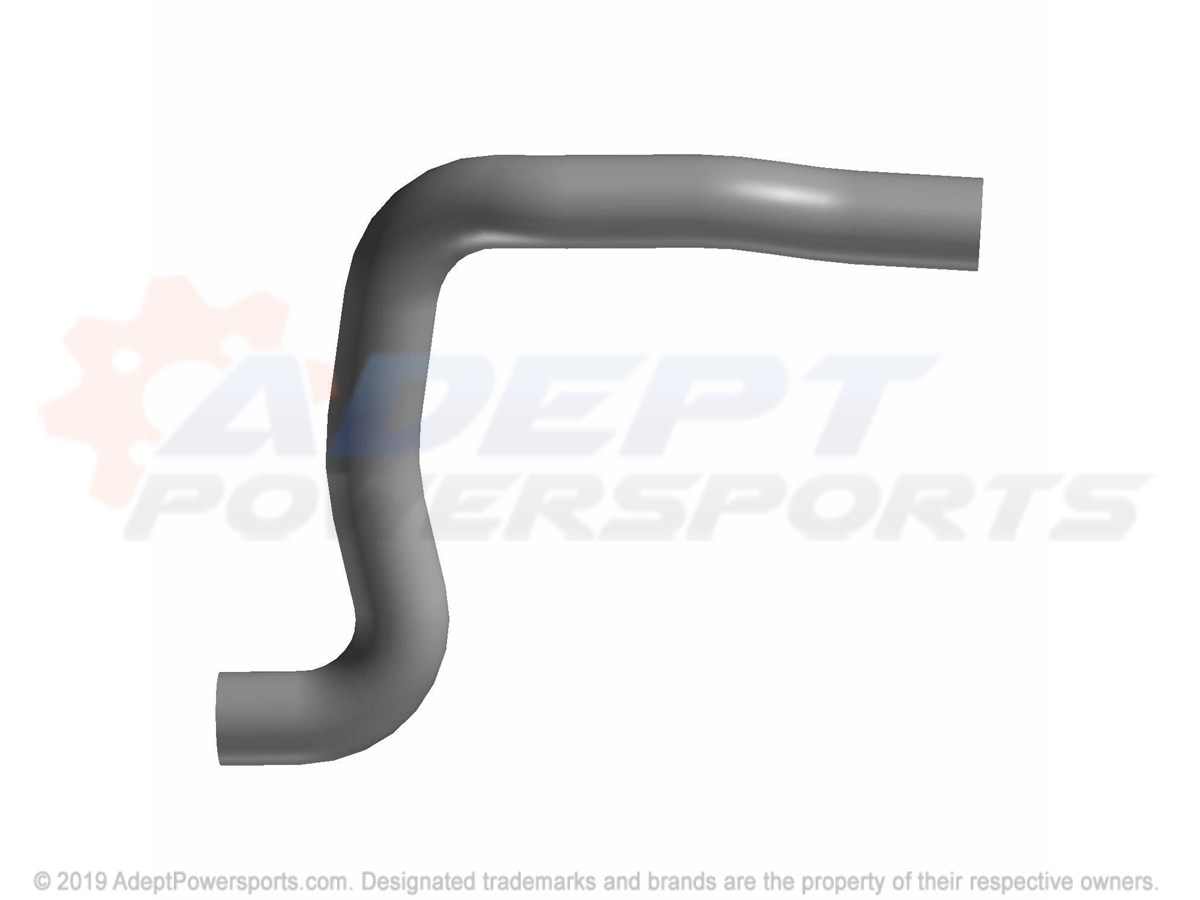

10	TUBE-COOLANT, 3/4, ENG, IN Part #: 5140812 Required per assembly: 1 Currently Not Available
11	HOSE-COOLANT, REAR, ENG, IN Part #: 5416033 Required per assembly: 1 Currently Not Available
12	HOSE-COOLANT, ENGINE, INLET Part #: 5415129 Required per assembly: 1 Currently Not Available
13	HOSE-COOLANT, BYPASS Part #: 5415447 Required per assembly: 1 Currently Not Available
14	HOSE-RADIATOR, ACE, 570 Part #: 5416034 Required per assembly: 1 Currently Not Available
15	CLAMP, HOSE Part #: 7081174 Required per assembly: 1 Currently Not Available
16	TANK, SURGE Part #: 5436936 Required per assembly: 1 Currently Not Available
17	FITTING, 90, DEGREE, ("J", MODEL, ONLY) Part #: 7052065 Required per assembly: 1 Note: FITTING,90 DEGREE $11.99 $6.90 - + Add to cart
18	CAP, OVERFLOW Part #: 5430743 Required per assembly: 1 Currently Not Available
19	CAP, PLUG9X, (GREEN), FLEX, TEMP Part #: 5433774 Required per assembly: 1 Note: Plug, Cap $4.79 $2.92 - + Add to cart
20	FILLER-REMOTE COOLANT SMALL Part #: 5439079 Required per assembly: 1 Currently Not Available
21	GASKET Part #: 5810279 Required per assembly: 1 $4.99 $2.92 - + Add to cart
22	FUEL, LINE, 1/4, ID(1525, CM.) Part #: 8450003-1525 Currently Not Available

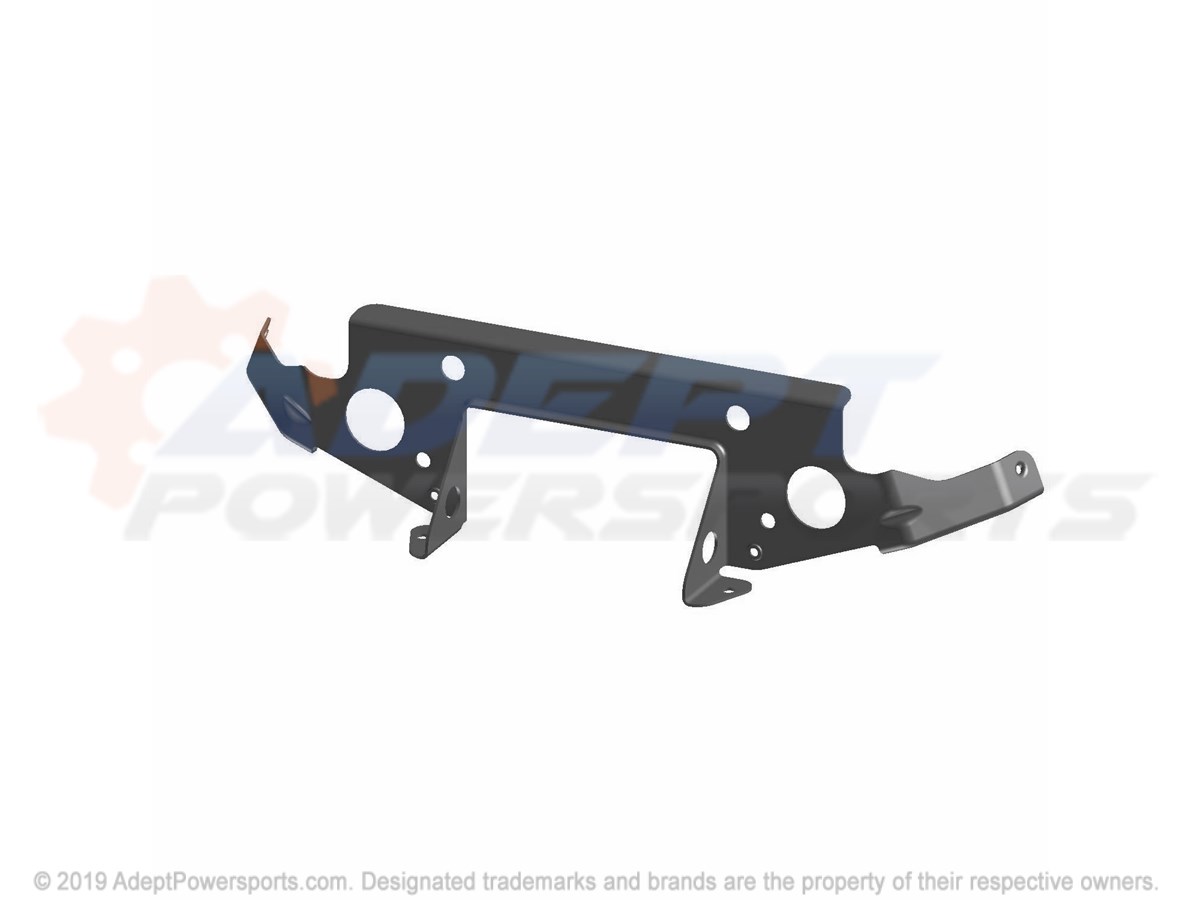

23	MNT-RADIATOR, ECOAT Part #: 5262753-329 Required per assembly: 1 Currently Not Available
24	MNT-RADIATOR, UPPER, E-COAT Part #: 5262754-329 Required per assembly: 1 Currently Not Available
25	PAD, BATTERY Part #: 5810290 Required per assembly: 1 Currently Not Available
26	CLAMP-COOLANT LINES Part #: 5258169 Required per assembly: 1 Currently Not Available
27	CLAMP, SPRINGBAND Part #: 7080841 Required per assembly: 7 Currently Not Available
28	HOSE-COOLANT, FRONT Part #: 5415876 Required per assembly: 1 Currently Not Available
29	SCREW Part #: 7518529 Required per assembly: 14 $2.99 $1.73 - + Add to cart
30	SCR-TFHFL-M6X1.0X25 ZOD Part #: 7519342 Required per assembly: 2 $4.04 $2.91 - + Add to cart
31	CLAMP, HOSE Part #: 7080003 Required per assembly: 2 Note: Clamp, Hose, Red Currently Not Available
32	HOSE Part #: 8450120-600 Currently Not Available
33	BRACKET-COOLANT TUBE Part #: 5451221 Required per assembly: 1 Currently Not Available
34	SCREW Part #: 7512084 Required per assembly: 2 Note: Screw $2.99 $1.73 - + Add to cart
35	CLAMP, SPRINGBAND Part #: 7080843 Required per assembly: 1 Note: Clamp, Spring Band Sold in multiples of 10 only Currently Not Available
36	CLIP, PLASTIC, DART, NYLON Part #: 7670090 Required per assembly: 1 Note: Clip, Dart $2.99 $1.73 - + Add to cart
37	CONNECTOR-TEE 1X1X0.5 Part #: 7052530 Required per assembly: 1 Currently Not Available
38	CLAMP, SPRINGBAND Part #: 7080844 Required per assembly: 2 Currently Not Available
39	CLAMP, HOSE Part #: 7080474 Required per assembly: 2 Note: Clamp, Hose $9.44 $6.81 - + Add to cart
41	SCREW Part #: 7512026 Required per assembly: 1 Note: Screw Currently Not Available
42	CONDUIT-FLEX, 1.00, ID, PE, 10CM Part #: 5521793-10 Required per assembly: 1 Currently Not Available
43	CLAMP-HOSE Part #: 7080807 Required per assembly: 1 Currently Not Available
44	CLAMP, HOSE Part #: 7081192 Required per assembly: 1 Currently Not Available
45	CLAMP, VINYL, COATED Part #: 7081854 Required per assembly: 1 Currently Not Available
46	BRKT-HOSE, COOLANT, ACE Part #: 5267081 Required per assembly: 1 Currently Not Available
