Engine, Cylinder Head Asm. replacement parts for 2019 Polaris Ranger 150 EFI MD (R03)

OEM Parts Polaris 2019 Polaris Ranger 150 EFI MD (R03) Engine, Cylinder Head Asm.

ENGINE, CYLINDER HEAD ASM. Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	CYLINDER HEAD Part #: 3050045 Required per assembly: 1 Currently Not Available
2	NUT M6 Part #: 3050333 Required per assembly: 2 Currently Not Available
3	DOWEL PIN 10X16 Part #: 3050047 Required per assembly: 4 Currently Not Available
4	ADAPTER-THROTTLE, BODY(MACH), AR Part #: 5140897 Required per assembly: 1 Currently Not Available
5	O-RING-THROTTLE, BODY, 2X27 Part #: 5416176 Required per assembly: 1 Currently Not Available
6	O-RING-THROTTLE, BODY, 2.5X41 Part #: 5416177 Required per assembly: 1 Currently Not Available
7	INSULATOR INTAKE Part #: 3050048 Required per assembly: 1 Currently Not Available
8	GASKET-CARB INSULATOR Part #: 3050352 Required per assembly: 1 Currently Not Available
9	CAMSHAFT HOLDER Part #: 3050050 Required per assembly: 1 Currently Not Available

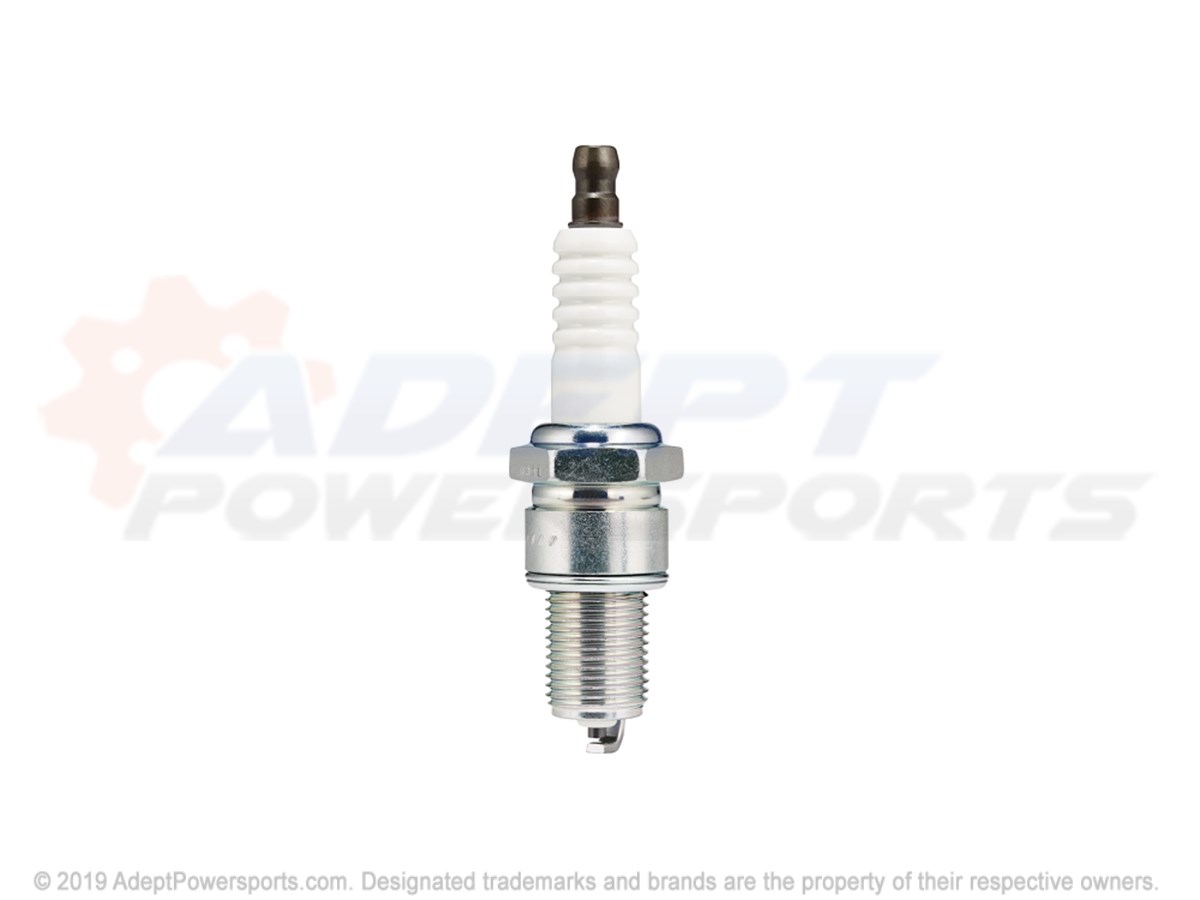

10	SPARKPLUG Part #: 3050051 Required per assembly: 1 Currently Not Available
11	BOLT STUD M6X63 Part #: 3050052 Required per assembly: 2 Currently Not Available
12	BOLT STUD M6X32 Part #: 3050053 Required per assembly: 2 Currently Not Available
13	BOLT M6X100 Part #: 3050330 Required per assembly: 2 Currently Not Available
14	WASHER 8 Part #: 3050054 Required per assembly: 4 Currently Not Available
15	NUT M8 Part #: 3050343 Required per assembly: 4 Currently Not Available
