Body, Front Bumper And Mounting replacement parts for 2019 Polaris Sportsman 570 UTIL HD (R02)

OEM Parts Polaris 2019 Polaris Sportsman 570 UTIL HD (R02) Body, Front Bumper And Mounting

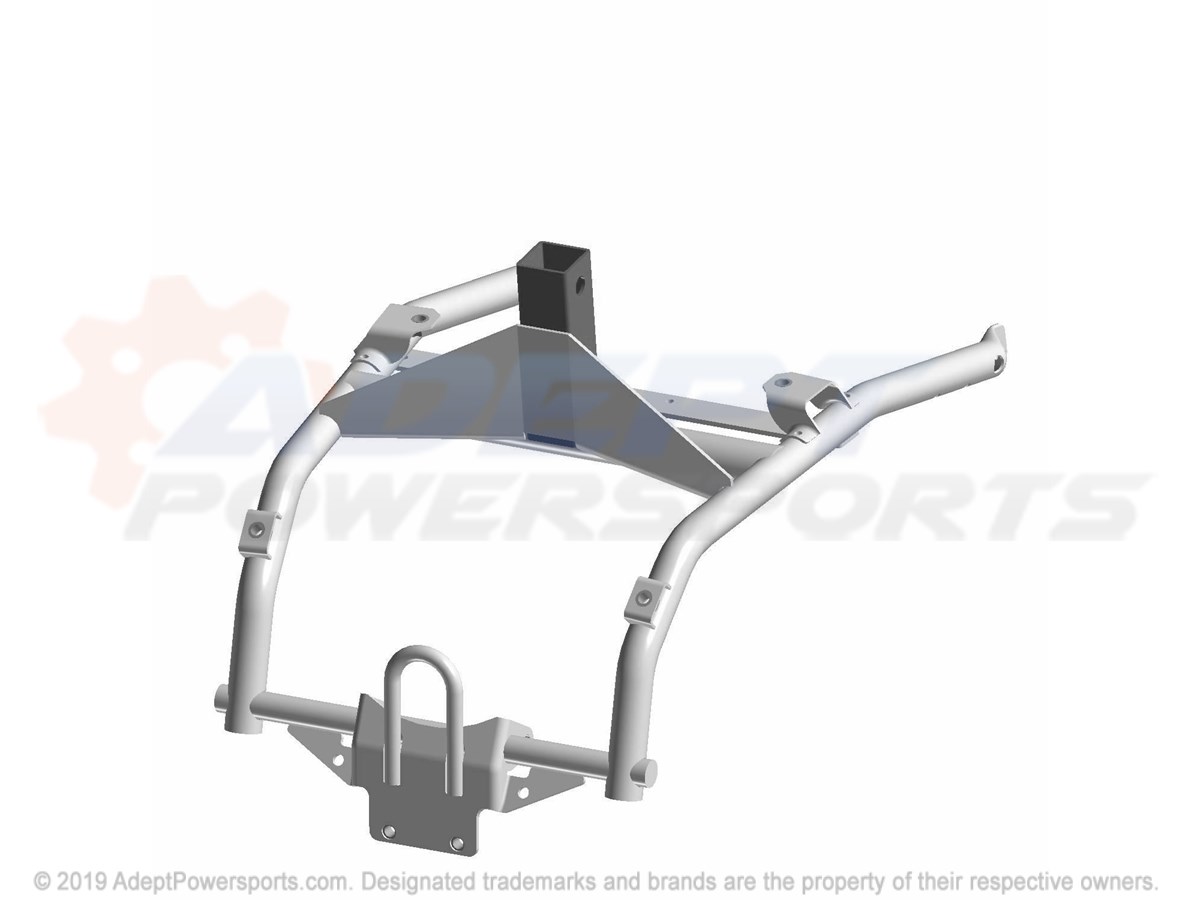

BODY, FRONT BUMPER and MOUNTING Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	BUMPER-FRONT FASCIA BLK Part #: 5438559-070 Required per assembly: 1 Currently Not Available
2	BRKT-RADIATOR, UPPER Part #: 5259852 Required per assembly: 1 Currently Not Available
3	BOLT, FLANGE Part #: 7518341 Required per assembly: 2 Currently Not Available
4	NUT, NYLOCK Part #: 7542343 Required per assembly: 6 Note: Nut, Flange Currently Not Available
5	WELD-SUPPORT, FRONT, FASCIA, BLK Part #: 1022511-067 Required per assembly: 1 Note: TO 1/1/2019 Currently Not Available
5	WELD-BUMPER, FRONT, UTILITY, BLK Part #: 1025068-067 Required per assembly: 1 Note: FROM 1/1/2019 Currently Not Available
6	WELD-BUMPER, FRONT, MATTE, BLK Part #: 1022574-458 Required per assembly: 1 Currently Not Available
7	BRKT-RAD, SUPPORT, LH, BLK Part #: 5262782-067 Required per assembly: 1 Currently Not Available
7	BRKT-RAD, SUPPORT, RH, BLK Part #: 5262783-067 Required per assembly: 1 Currently Not Available
8	BRKT-FASCIA, SUPPORT, UPR, LH, BLK Part #: 5263043-067 Required per assembly: 1 Currently Not Available
8	BRKT-FASCIA, SUPPORT, UPR, RH, BLK Part #: 5263044-067 Required per assembly: 1 Currently Not Available
9	SCREW Part #: 7515399 Required per assembly: 2 Note: Screw ~~$2.99~~ $1.73 - + Add to cart
10	BOLT Part #: 7512377 Required per assembly: 4 Currently Not Available
11	SCREW Part #: 7517685 Required per assembly: 2 Note: Screw Currently Not Available
12	SCREW Part #: 7519650 Required per assembly: 2 Currently Not Available
13	SCREW Part #: 7518215 Required per assembly: 2 Note: Screw Currently Not Available
14	SCREW Part #: 7518216 Required per assembly: 2 Currently Not Available
15	PLUG-HITCH, BLK Part #: 5453632-070 Required per assembly: 1 Currently Not Available
16	CLIP-HITCHPIN .148X3 1/16 Part #: 7661067 Required per assembly: 1 Note: Clip Currently Not Available
17	PIN, CLEVIS Part #: 7661878 Required per assembly: 1 Currently Not Available
18	BRKT-REFLECTOR, FRONT, LH, BLK Part #: 5261969-067 Required per assembly: 1 Currently Not Available
19	BRKT-REFLECTOR, FRONT, RH, BLK Part #: 5261970-067 Required per assembly: 1 Currently Not Available
20	CAP-BUMPER, END Part #: 5433305 Required per assembly: 2 Currently Not Available
21	SCREW Part #: 7518238 Required per assembly: 4 ~~$3.79~~ $1.73 - + Add to cart
22	SCREW Part #: 7518280 Required per assembly: 2 Currently Not Available
