Engine, Exhaust replacement parts for 2019 Polaris Scrambler 1000 XP Tractor (R03)

OEM Parts Polaris 2019 Polaris Scrambler 1000 XP Tractor (R03) Engine, Exhaust

ENGINE, EXHAUST Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	WELD-EXHAUST SILENCER BLK Part #: 1262232-489 Required per assembly: 1 Currently Not Available
2	ASM-EXHAUST, SILENCER, PRIMARY Part #: 1262788 Required per assembly: 1 Currently Not Available

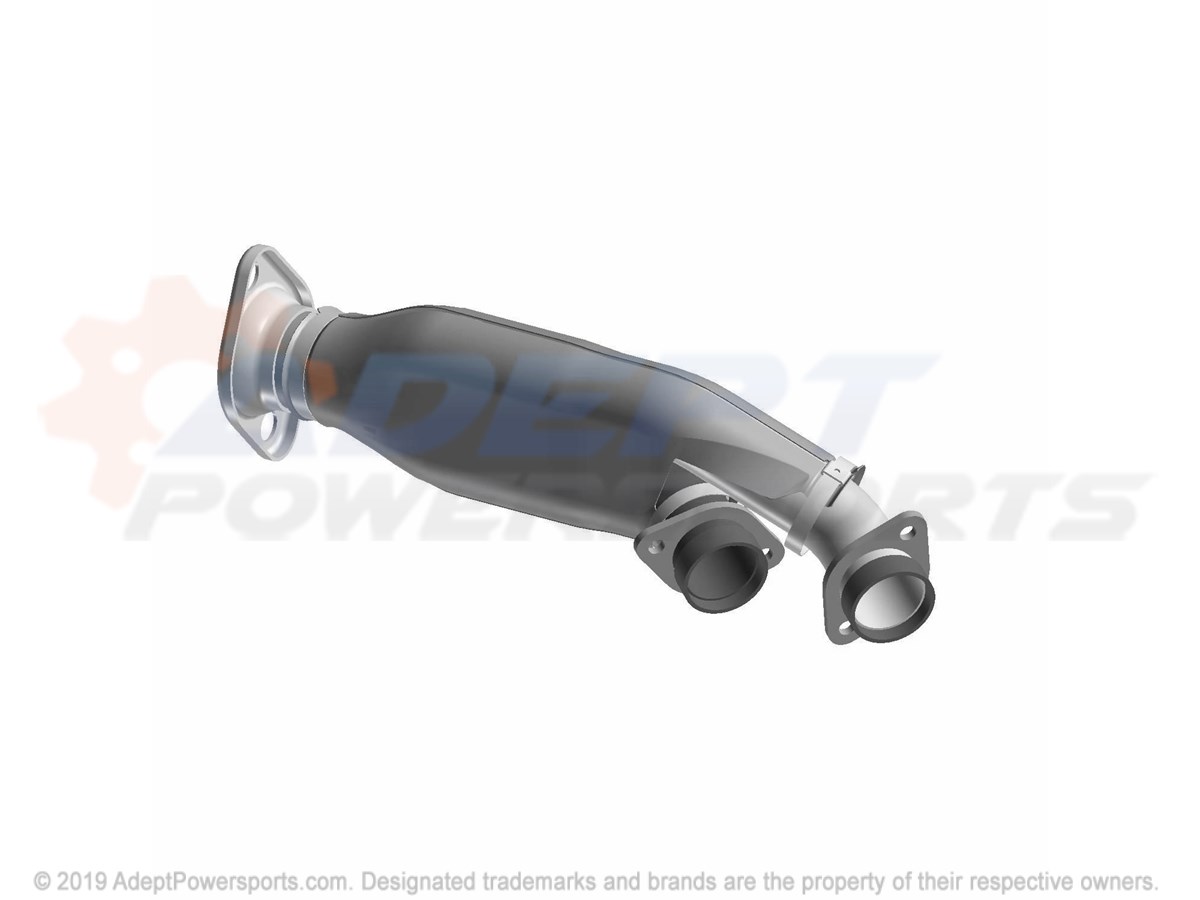

3	ASM-EXHAUST, PIPE, TWIN, TRACTOR Part #: 1262866 Required per assembly: 1 Currently Not Available
4	SEAL-EXHAUST Part #: 3610179 Required per assembly: 1 Currently Not Available
5	GASKET-DOUBLE, SPHERICAL, 2" Part #: 3610248 Required per assembly: 1 Currently Not Available
6	SHIELD-BOX, STORAGE, BLK Part #: 5263617-489 Required per assembly: 1 Currently Not Available
7	GASKET, EXHAUST, SEALING Part #: 5257995 Required per assembly: 2 Currently Not Available

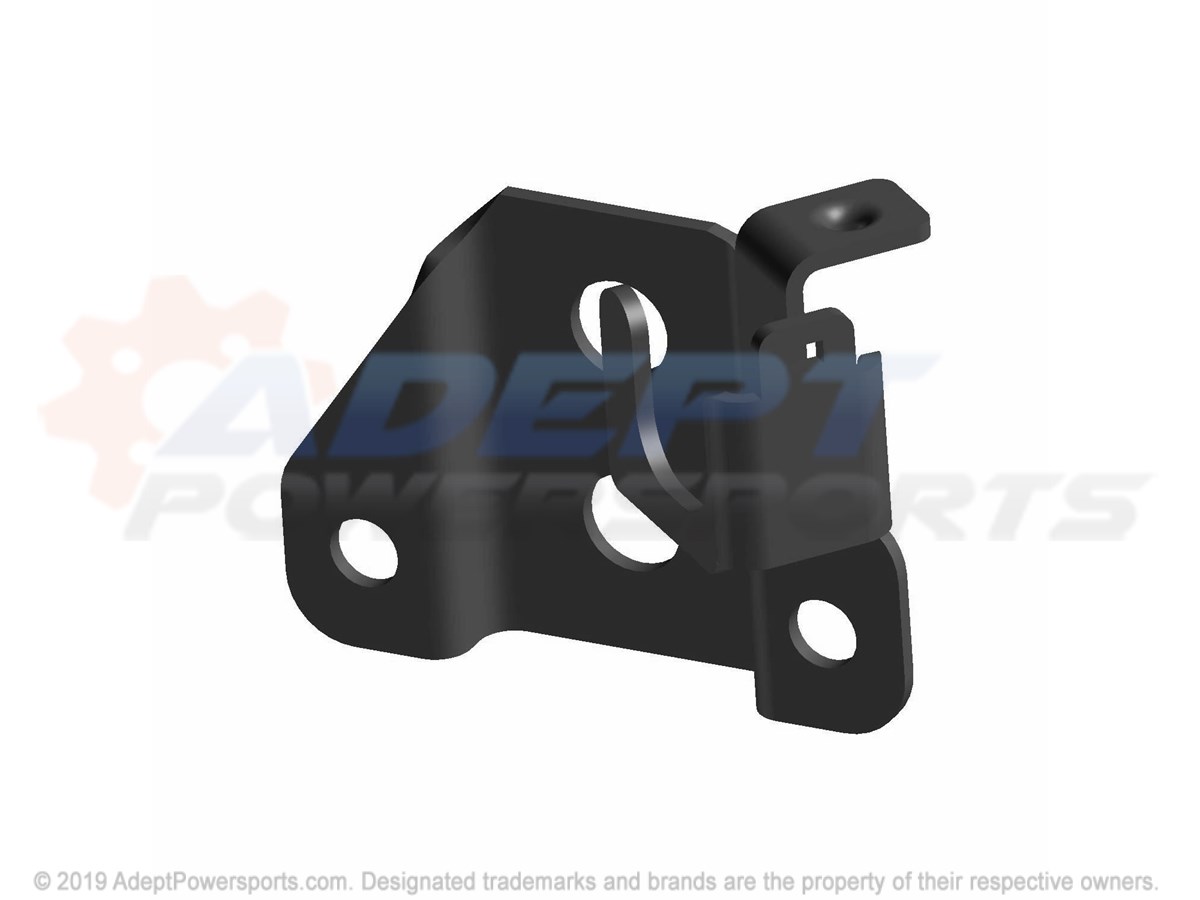

8	BRKT-EXHAUST, UPPER, SUPPORTMBLK Part #: 5260166-458 Required per assembly: 1 Currently Not Available

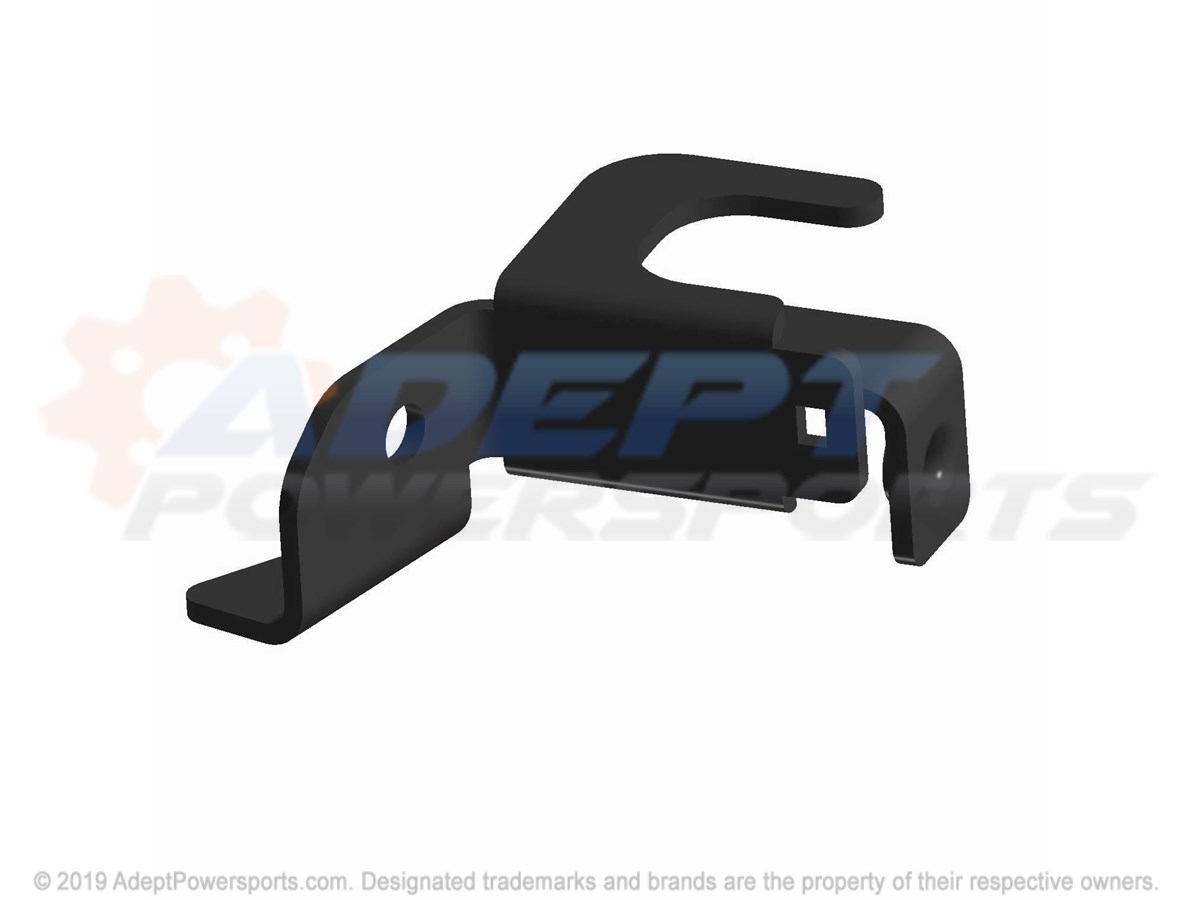

9	BRKT-EXHAUST, LOWER, SUPPORTMBLK Part #: 5260069-458 Required per assembly: 1 Currently Not Available

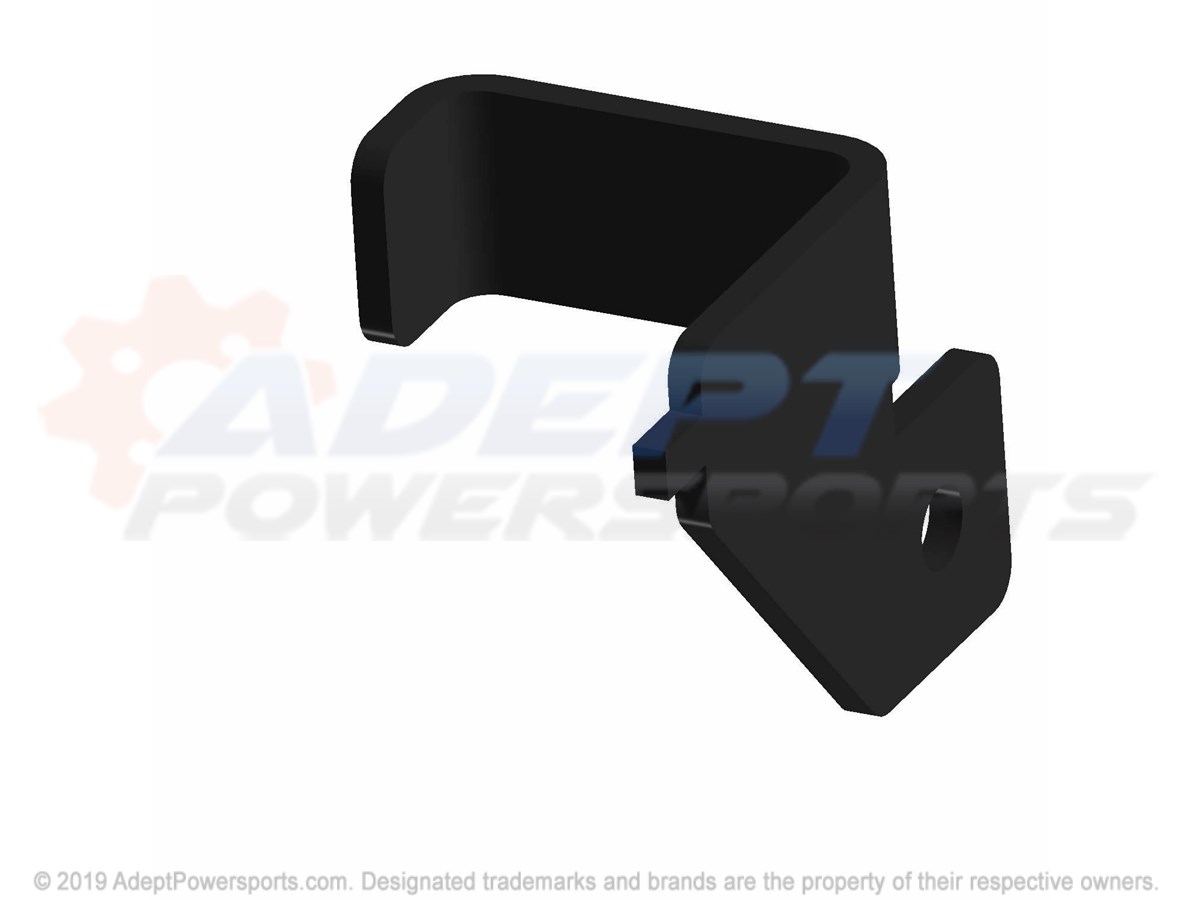

10	BRKT-EXHAUST, GROMMET, M.BLK Part #: 5260359-458 Required per assembly: 2 Currently Not Available
11	GROMMET, SILENCER, MOUNT Part #: 5413383 Required per assembly: 4 Currently Not Available
12	SPRING-EXHAUST Part #: 7041789 Required per assembly: 2 Note: Spring, Exhaust ~~$6.99~~ $4.03 - + Add to cart
13	SPRING-EXHAUST Part #: 7041804 Required per assembly: 2 Note: Spring, Exhaust Currently Not Available
14	SPRING-SPHERICAL, EXHAUST Part #: 7044274 Required per assembly: 2 Currently Not Available
15	SCREW Part #: 7518513 Required per assembly: 3 Currently Not Available
16	SCREW Part #: 7518936 Required per assembly: 4 Currently Not Available
17	STUD-SPHERICAL, EXHAUST Part #: 7520079 Required per assembly: 2 Currently Not Available
18	NUT Part #: 7547076 Required per assembly: 4 Currently Not Available
19	WASHER, LOCK Part #: 7556111 Required per assembly: 4 Currently Not Available

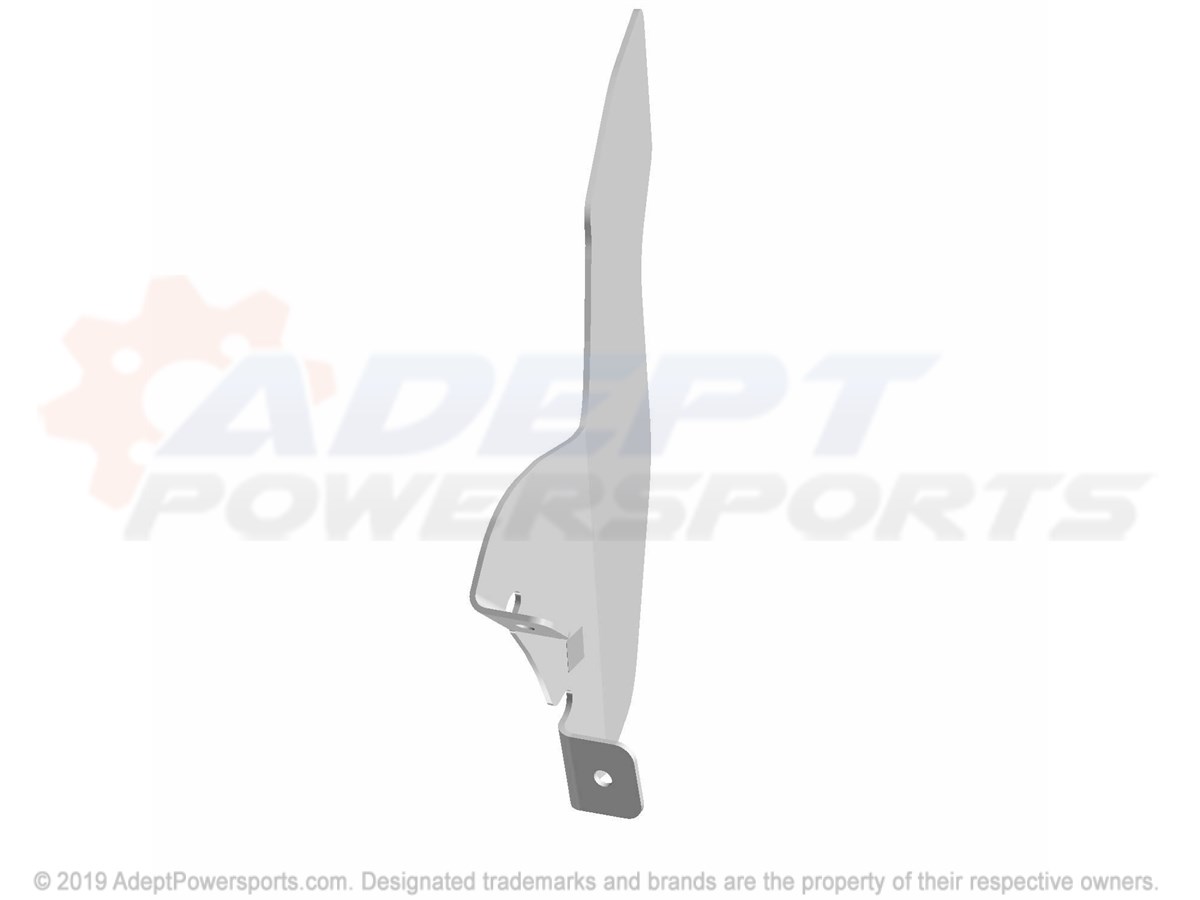

20	SHIELD-EXHAUST SPRING Part #: 5261312 Required per assembly: 1 Currently Not Available
21	SPACER, EXHAUST, SPRING, SHIELD Part #: 5336190 Required per assembly: 2 Currently Not Available
22	SCREW Part #: 7519090 Required per assembly: 2 Currently Not Available

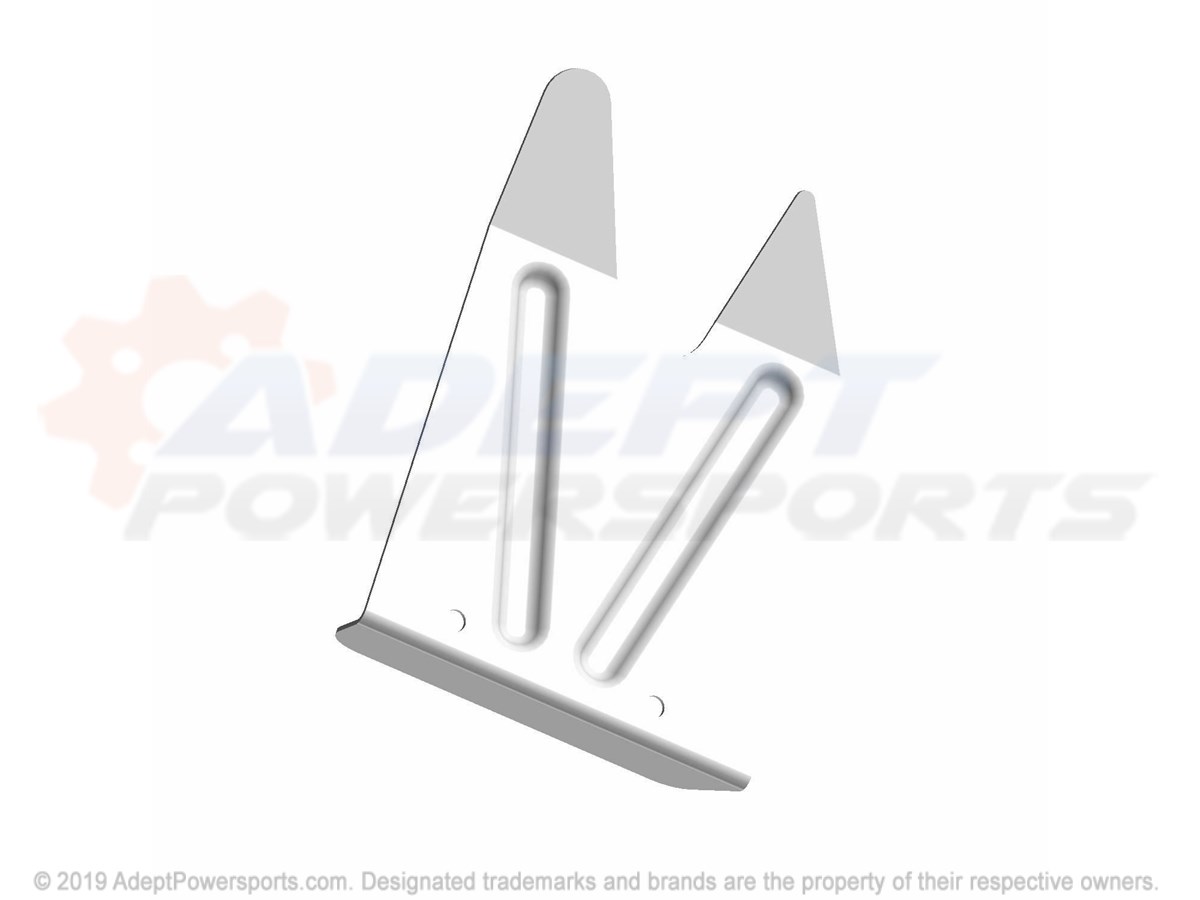

23	SHIELD-EXHAUST Part #: 5261990 Required per assembly: 1 Currently Not Available
24	RIVET, INTERLOCK, Z Part #: 7661637 Required per assembly: 2 Note: Sold in multiples of 50 only Currently Not Available
25	RETAINER, BOLT Part #: 7670154 Required per assembly: 2 Currently Not Available
26	BOLT Part #: 7512666 Required per assembly: 1 Currently Not Available
27	WASHER, CLEAN, OUT Part #: 7556230 Required per assembly: 1 Note: Washer ~~$1.99~~ $1.15 - + Add to cart
