Harness replacement parts for 2019 Polaris Sportsman 570 EFI X2 EPS (R04)

OEM Parts Polaris 2019 Polaris Sportsman 570 EFI X2 EPS (R04) Harness

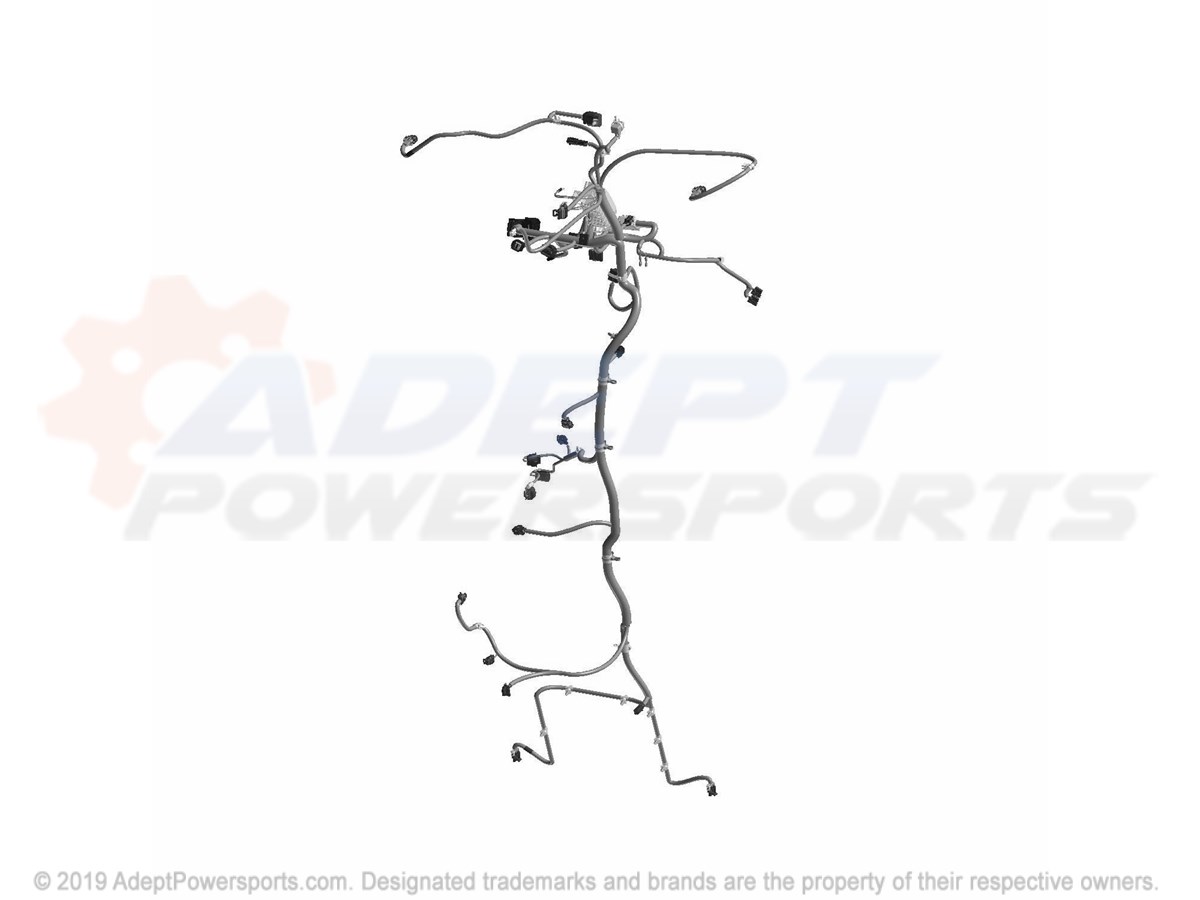

HARNESS Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	COVER-FUSEBOX, 48WAY Part #: 4015011 Required per assembly: 1 Currently Not Available
1	HARNESS-MAIN, 570, EFI, X2, EPS Part #: 2412777 Required per assembly: 1 Note: INCL COVER Currently Not Available
2	FUSE-20 MINI BLADE 58V(YELLOW) Part #: 4012811 Required per assembly: 5 Currently Not Available
3	RELAY-SPST, 12V, 20A, EPXY, HFA Part #: 4016819 Required per assembly: 6 Currently Not Available
4	LABEL, FUSE, BOX Part #: 7185329 Required per assembly: 1 Currently Not Available
5	DIODE, 6, AMP Part #: 2411035 Required per assembly: 1 Currently Not Available
6	FUSE, 10AMP Part #: 2434016 Required per assembly: 4 Note: Fuse, 10 AMP, Ignition Sold in multiples of 10 only Currently Not Available
7	COVER, DIAGNOSTIC, W/CLIP Part #: 4012170 Required per assembly: 1 Currently Not Available
8	BREAKER, CIRCUIT, 15, AMP Part #: 2411086 Required per assembly: 1 Currently Not Available
9	DIODE, 6, AMP Part #: 2410000 Required per assembly: 1 Note: Diaode, 6 AMP Currently Not Available
10	KIT, FUSIBLE, LINK, .8MM Part #: 2202607 Required per assembly: 1 Currently Not Available
11	STRAP PANDUIT Part #: 7080138 Required per assembly: 8 ~~$1.99~~ $1.15 - + Add to cart
12	STRAP, PANDUIT, 14" Part #: 7080761 Required per assembly: 3 Note: Cable Tie Currently Not Available
13	CLAMP, HOSE Part #: 7080908 Required per assembly: 1 Currently Not Available
14	BOLT Part #: 7512232 Required per assembly: 1 ~~$1.99~~ $1.15 - + Add to cart
15	NUT, SPEED Part #: 7670057 Required per assembly: 1 Note: Nut, Speed ~~$1.99~~ $1.15 - + Add to cart
16	RELAY, SOLID, STATE, 9, AMP Part #: 4012829 Required per assembly: 1 Note: Relay, Solid State Currently Not Available
17	COVER-FUSEBOX, 48WAY Part #: 4015011 Required per assembly: 1 Currently Not Available
17	SEAL-FUSE CENTER Part #: 5415598 Required per assembly: 1 Currently Not Available
18	FUSE, MAIN, 30, AMP Part #: 2434015 Required per assembly: 2 Note: Fuse, 30 AMP, Main Sold in multiples of 10 only Currently Not Available
19	SCREW Part #: 7518418 Required per assembly: 1 Currently Not Available
20	NUT-LOCK Part #: 7542122 Required per assembly: 1 Currently Not Available
