Exhaust replacement parts for 2019 Polaris Sportsman 570 X2 EPS EU (R01)

OEM Parts Polaris 2019 Polaris Sportsman 570 X2 EPS EU (R01) Exhaust

EXHAUST Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	WELD-SILENCER, 570, CAT, PWDR, BLK Part #: 1263233-489 Required per assembly: 1 Note: INCL. 1-4 Currently Not Available
2	WELD-SPARK ARRESTOR QT Part #: 1262239 Required per assembly: 1 Currently Not Available
3	SCREW Part #: 7517257 Required per assembly: 1 Currently Not Available
4	NUT Part #: 7547120 Required per assembly: 1 Currently Not Available
5	WELD-SILENCER, SUPPORT, BLK Part #: 1024693-329 Required per assembly: 1 Currently Not Available

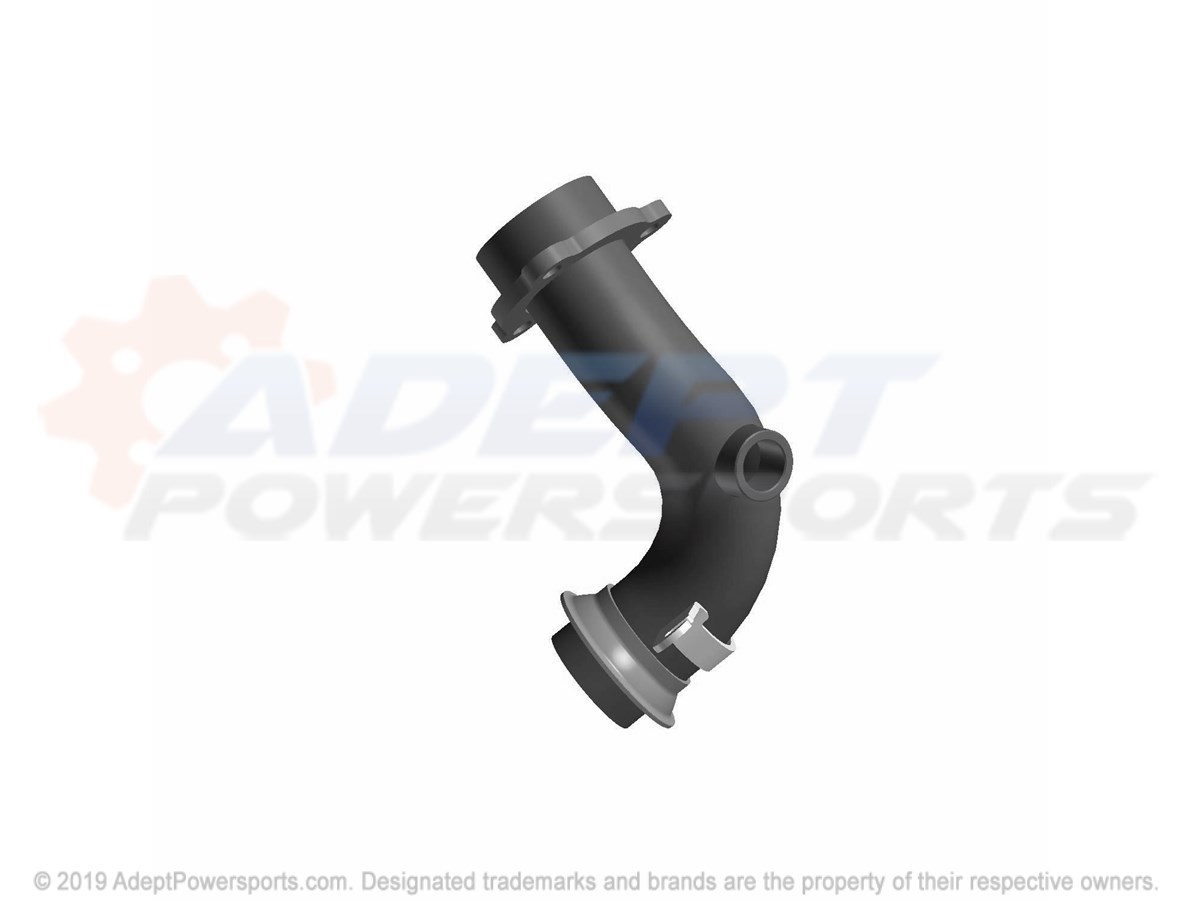

6	WELD-MANIFOLD Part #: 1263313 Required per assembly: 1 Currently Not Available

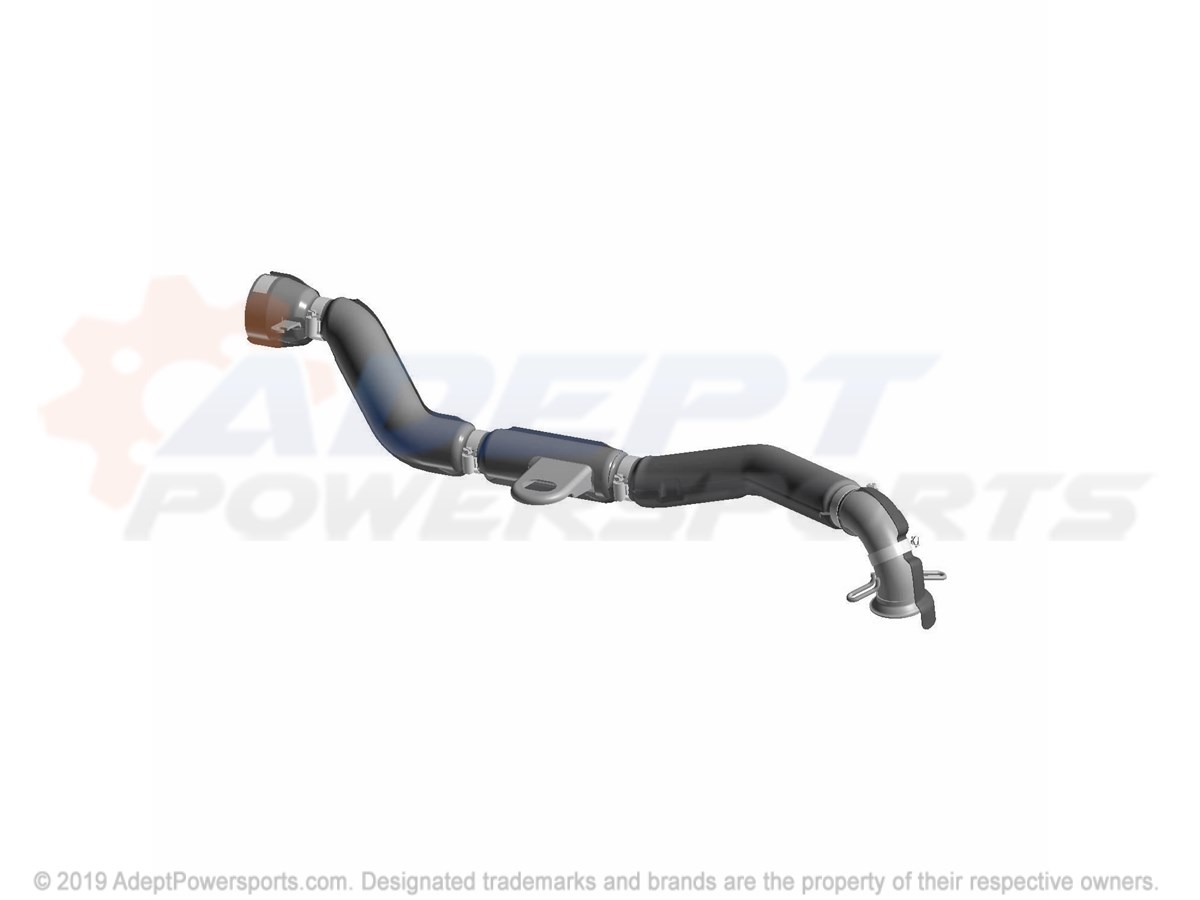

7	ASM-EXHAUST, PIPE, 570, EFI, SS Part #: 1263315 Required per assembly: 1 Note: INCL. SHIELDS, CLAMPS Currently Not Available
8	ASM-SHIELD, AIRBOX Part #: 2638121 Required per assembly: 1 Currently Not Available

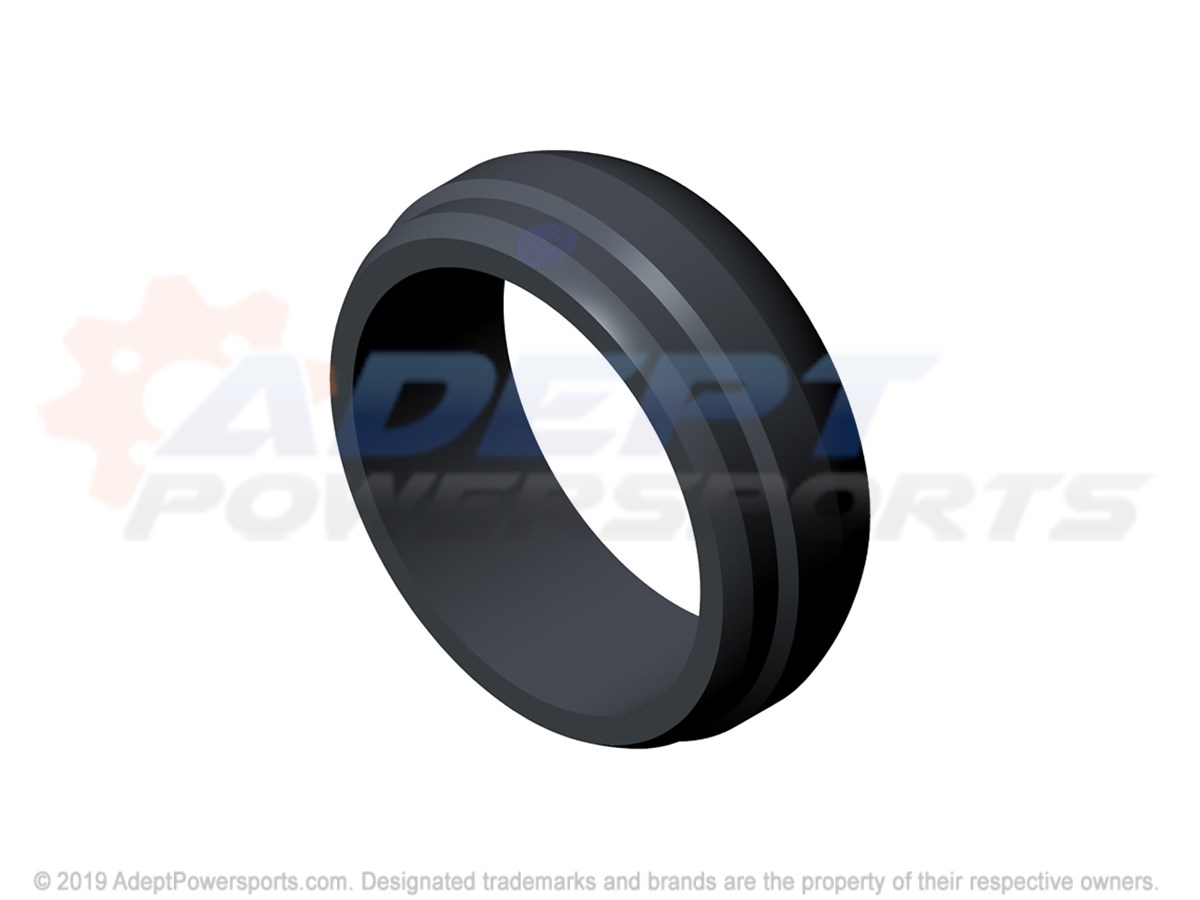

9	GASKET-DOUBLE, SPHERICAL, 1.625" Part #: 3610312 Required per assembly: 2 Currently Not Available
10	SENSOR-LAMBDA, LSF, 4.2 Part #: 4011853 Required per assembly: 1 Currently Not Available
11	BUSHING-RES. MT. Part #: 5010192 Required per assembly: 4 Currently Not Available
12	GASKET-EXHAUST SEALING Part #: 5253989 Required per assembly: 1 Currently Not Available
13	SHIELD-FUEL, TANK, FRAME, MNT, TRG Part #: 5262925 Required per assembly: 1 Currently Not Available
14	BRKT-EXHAUST, PIPE, SUPPORT, BLK Part #: 5267243-067 Required per assembly: 1 Currently Not Available
15	BRACKET, SILENCER, FRAME Part #: 5267285 Required per assembly: 1 Currently Not Available

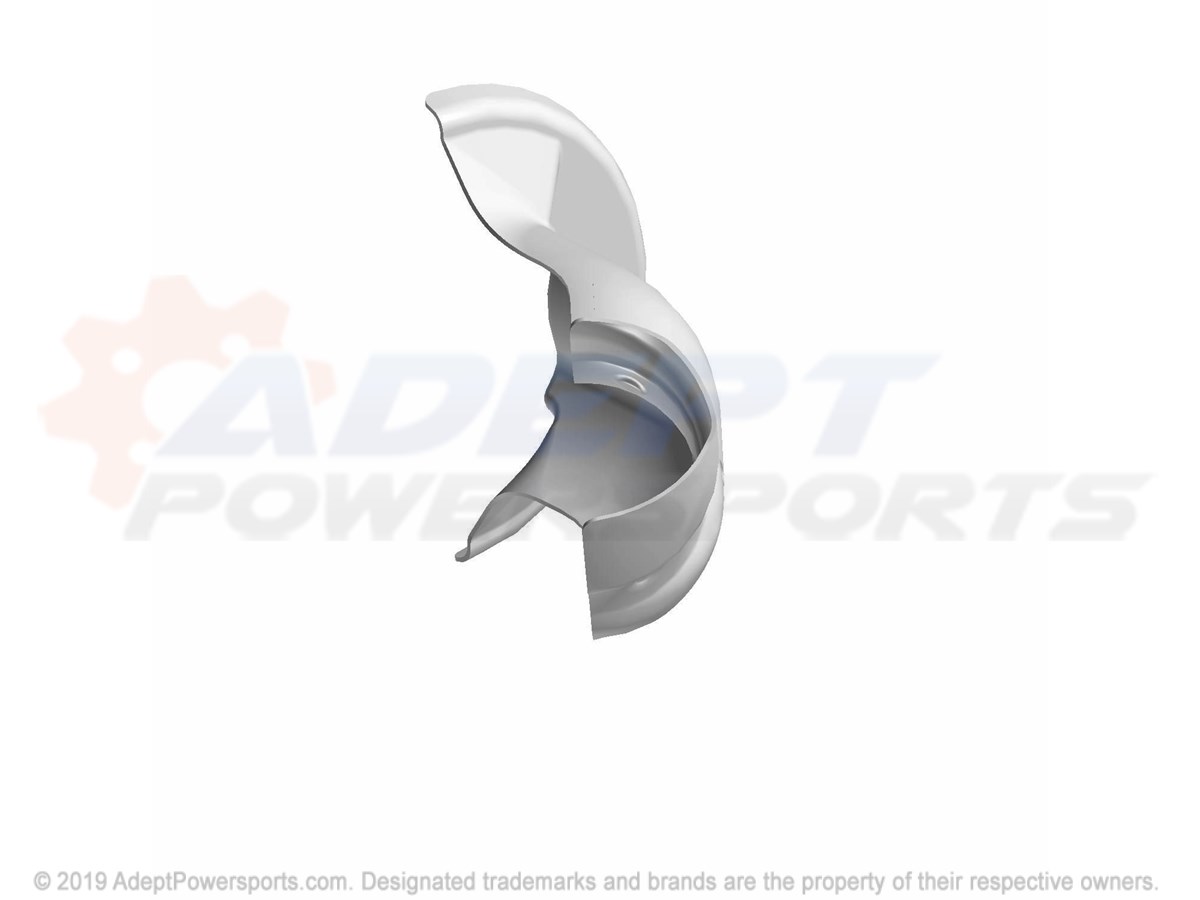

16	SHIELD-HEAT, EXHAUST, HEADPIPE Part #: 5267286 Required per assembly: 1 Currently Not Available
17	WASHER, RUBBER Part #: 5414945 Required per assembly: 4 Currently Not Available
18	DAMPER, VIBRATION Part #: 5414946 Required per assembly: 4 Currently Not Available
19	SPRING-EXHAUST Part #: 7045211 Required per assembly: 4 Currently Not Available
20	CLAMP-45.0DX7W, 304SS, OETIKER Part #: 7082132 Required per assembly: 1 Currently Not Available
21	BOLT Part #: 7515316 Required per assembly: 4 Currently Not Available
22	SCREW Part #: 7517386 Required per assembly: 4 Note: Screw ~~$2.99~~ $1.73 - + Add to cart
23	SCREW Part #: 7517555 Required per assembly: 3 Currently Not Available
24	BOLT, FLANGE Part #: 7518341 Required per assembly: 2 Currently Not Available
25	NUT Part #: 7542324 Required per assembly: 4 Currently Not Available
26	NUT, NYLOCK Part #: 7542343 Required per assembly: 4 Note: Nut, Flange Currently Not Available
27	WASHER Part #: 7555716 Required per assembly: 4 Currently Not Available
28	NUT Part #: 7670096 Required per assembly: 1 Note: Nut, Chimney Sold in multiples of 10 only Currently Not Available
