OEM Parts Polaris 2019 Polaris Sportsman X2 570 EPS (R01) Panel

2019 Polaris Sportsman X2 570 EPS (R01) A19SWS57C1/C2 - Panel

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 2637041-070 Asm-Access, Door, (With, Foil), Rh, Blk

ASM-ACCESS, DOOR, (WITH, FOIL), RH, BLK

Part #: 2637041-070 Required per assembly: 1 Note: INCL. PANEL, FOIL-FIBER
Currently Not Available
1
Polaris 5454173-070 Panel-Access, Rh, Black

PANEL-ACCESS, RH, BLACK

Part #: 5454173-070 Required per assembly: 1
Currently Not Available
1

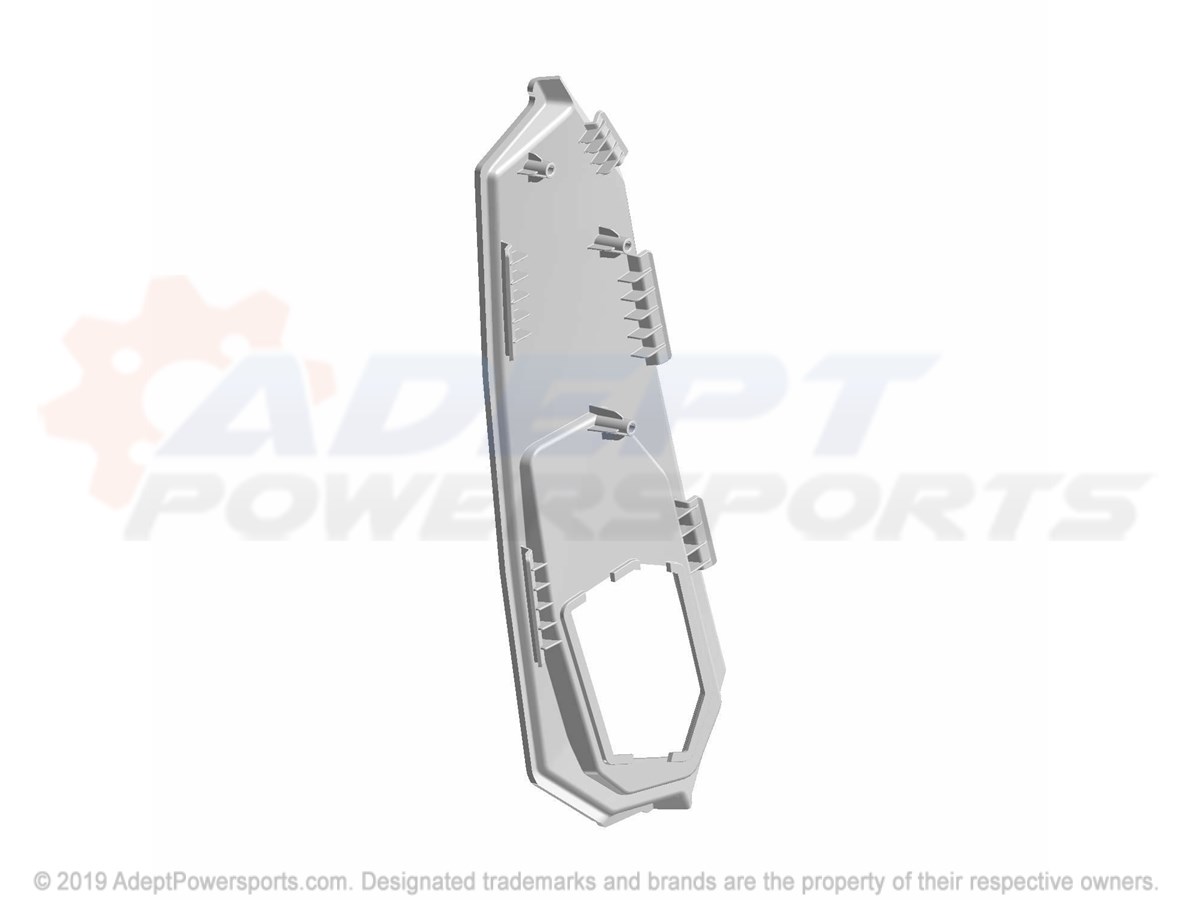

Polaris 5814723 Foil-Fiber, Rh, Access, Door

FOIL-FIBER, RH, ACCESS, DOOR

Part #: 5814723 Required per assembly: 1
Currently Not Available
2

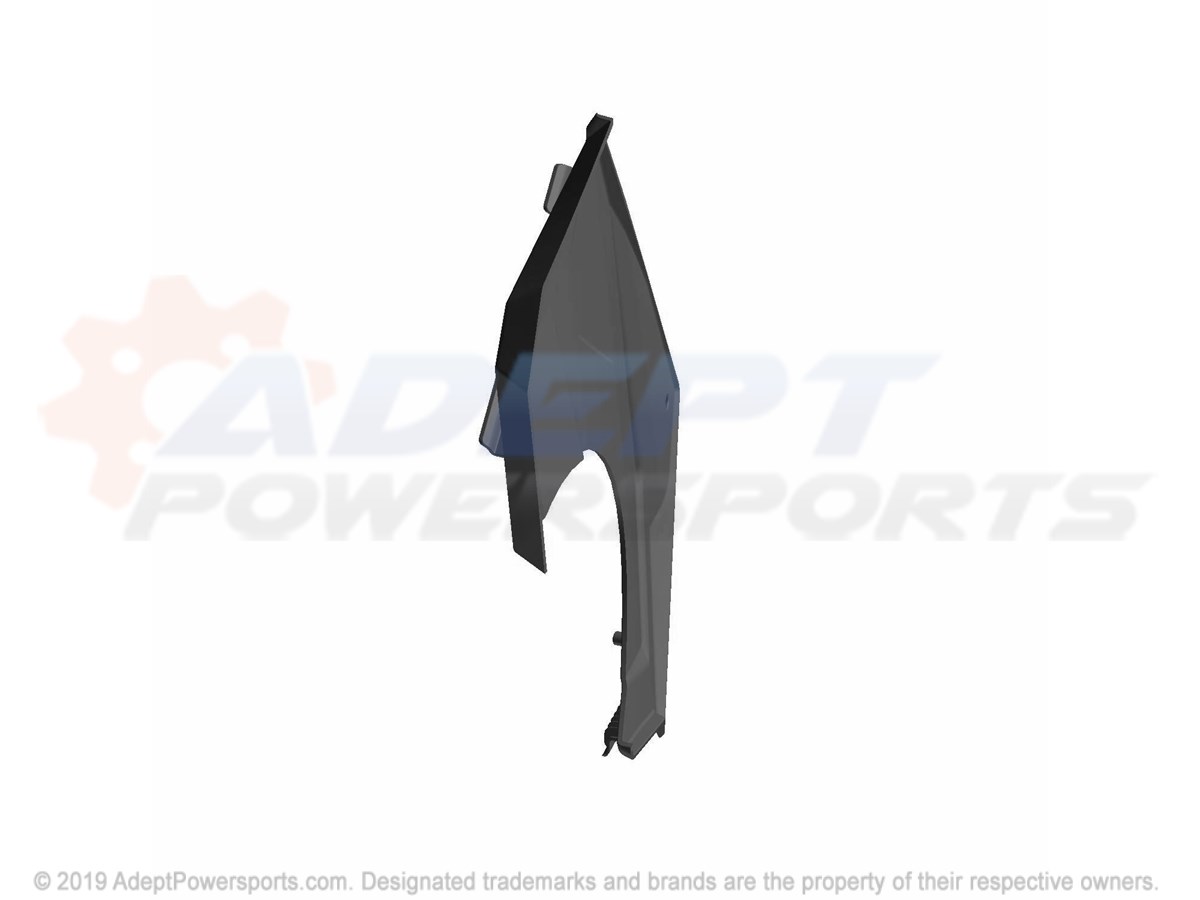

Polaris 5454318-070 Panel-Close, Off, Rh, Trg, Blk

PANEL-CLOSE, OFF, RH, TRG, BLK

Part #: 5454318-070 Required per assembly: 1
Currently Not Available
2
Polaris 7710849 Palnut, 7/16-20, Steel

PALNUT, 7/16-20, STEEL

Part #: 7710849 Required per assembly: 3
Currently Not Available
2

ASM-CLOSEOFF/SHIELD, RH, TRG, BLK

Part #: 2637548-070 Required per assembly: 1 Note: INCL. PANEL, SHIELD, PUSHNUT
Currently Not Available
3
Polaris 5454680-070 Panel-Close, Off, Trg, Lh, Blk

PANEL-CLOSE, OFF, TRG, LH, BLK

Part #: 5454680-070 Required per assembly: 1
Currently Not Available
