OEM Parts Polaris 2019 Polaris Sportsman 850 SP 48 (R08) Headlight Pod - A19sxa85b1/B4/Sxe85bc/B9/Zbj

2019 Polaris Sportsman 850 SP 48 (R08) A19SXA85B1/B4/SXE85BC/B9/SXZ85BJ - Headlight Pod - A19sxa85b1/B4/Sxe85bc/B9/Zbj

HEADLIGHT POD - A19SXA85B1/B4/SXE85BC/B9/ZBJ Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 5452931-498 Pod-Hdlt, Front, Molded, Hdpe, Grn

POD-HDLT, FRONT, MOLDED, HDPE, GRN

Part #: 5452931-498 Required per assembly: 1 Note: B1
Currently Not Available
1

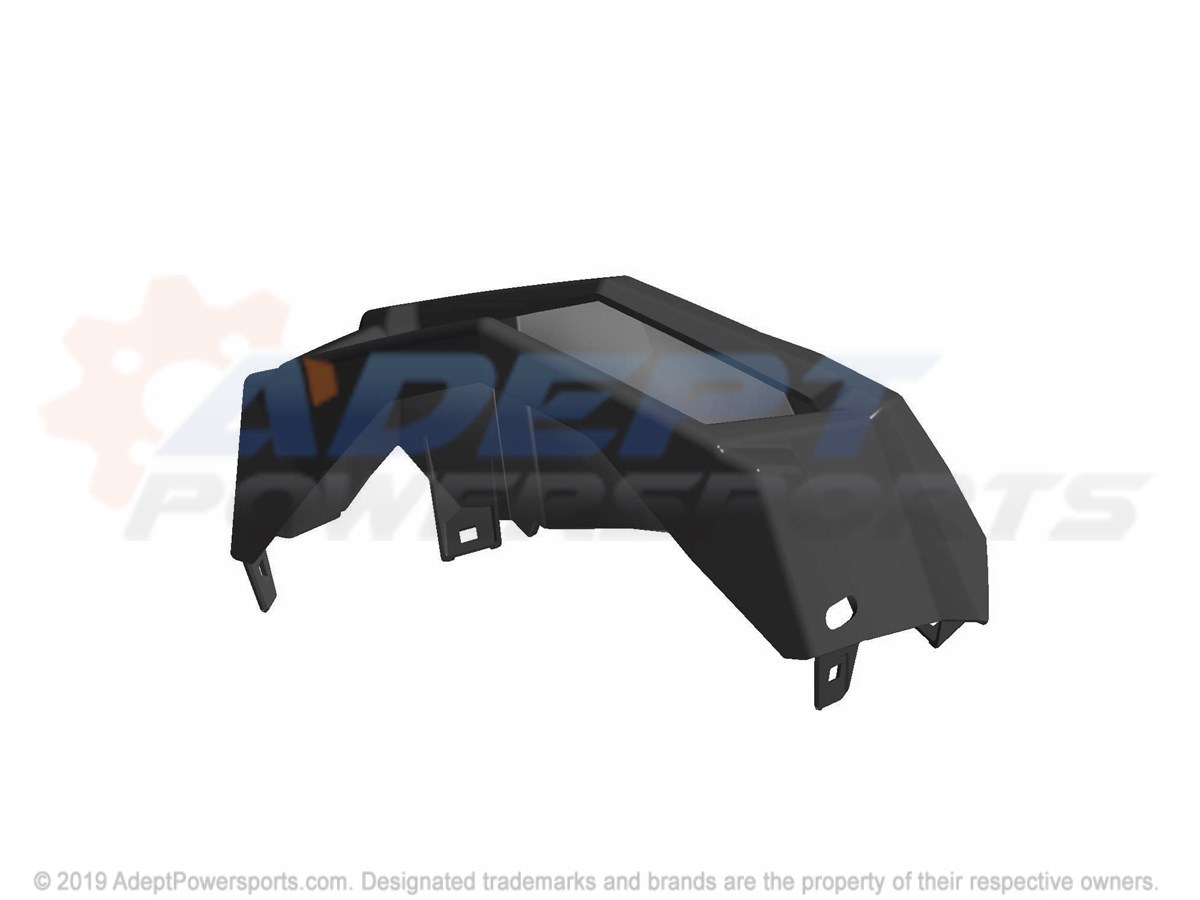

Polaris 5453144-587 Pod-Hdlt, Upper, Dip, Ppc

POD-HDLT, UPPER, DIP, PPC

Part #: 5453144-587 Required per assembly: 1 Note: B9
Currently Not Available
1

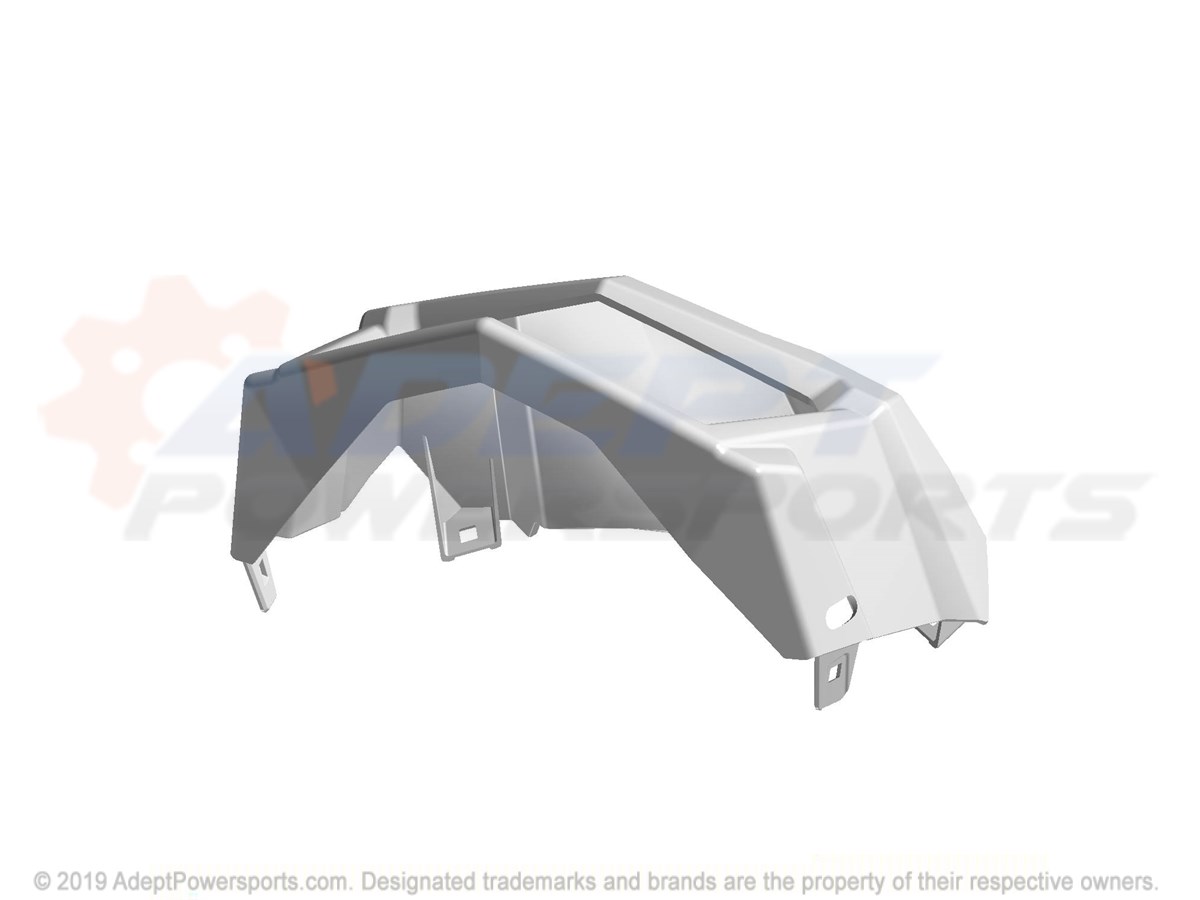

Polaris 5453000-599 Pod-Hdlt, Front, Pntd, Wht, Ltng

POD-HDLT, FRONT, PNTD, WHT, LTNG

Part #: 5453000-599 Required per assembly: 1 Note: BC
Currently Not Available
1
Polaris 5452931-653 Pod-Hdlt, Front, Molded, Hdpe, Ttm

POD-HDLT, FRONT, MOLDED, HDPE, TTM

Part #: 5452931-653 Required per assembly: 1 Note: B4
Currently Not Available
1
Polaris 5453000-603 Pod-Hdlt, Front, Pntd, M.Gray

POD-HDLT, FRONT, PNTD, M.GRAY

Part #: 5453000-603 Required per assembly: 1 Note: BJ
Currently Not Available
2
Polaris 5455864-070 Pod-Hdlt, Rr, W/Sqr, Cutout1, Blk

POD-HDLT, RR, W/SQR, CUTOUT1, BLK

Part #: 5455864-070 Required per assembly: 1 Note: BJ
Currently Not Available
2
Polaris 5456060-070 Pod-Hdlt, Rr, W/Sqr, Cutout4, Blk

POD-HDLT, RR, W/SQR, CUTOUT4, BLK

Part #: 5456060-070 Required per assembly: 1 Note: B9
Currently Not Available
2
Polaris 4011402 Plug-Switch, K1

PLUG-SWITCH, K1

Part #: 4011402 Required per assembly: 1 Note: NOT ILLUSTRATED
Currently Not Available
3
Polaris 5263262-329 Brkt-Pod, Blk

BRKT-POD, BLK

Part #: 5263262-329 Required per assembly: 1
Currently Not Available
4
Polaris 7518238 Screw

SCREW

Part #: 7518238 Required per assembly: 2
$3.79
$1.73
-
+
Add to cart
5
Polaris 7518238 Screw

SCREW

Part #: 7518238 Required per assembly: 5
$3.79
$1.73
-
+
Add to cart
5

CLIP-SCREW, #8/10, .03-.10, PANEL

Part #: 7670127 Required per assembly: 7
Currently Not Available
