Rear Cab replacement parts for 2019 Polaris Sportsman 1000 XP 48 (R07)

OEM Parts Polaris 2019 Polaris Sportsman 1000 XP 48 (R07) Rear Cab

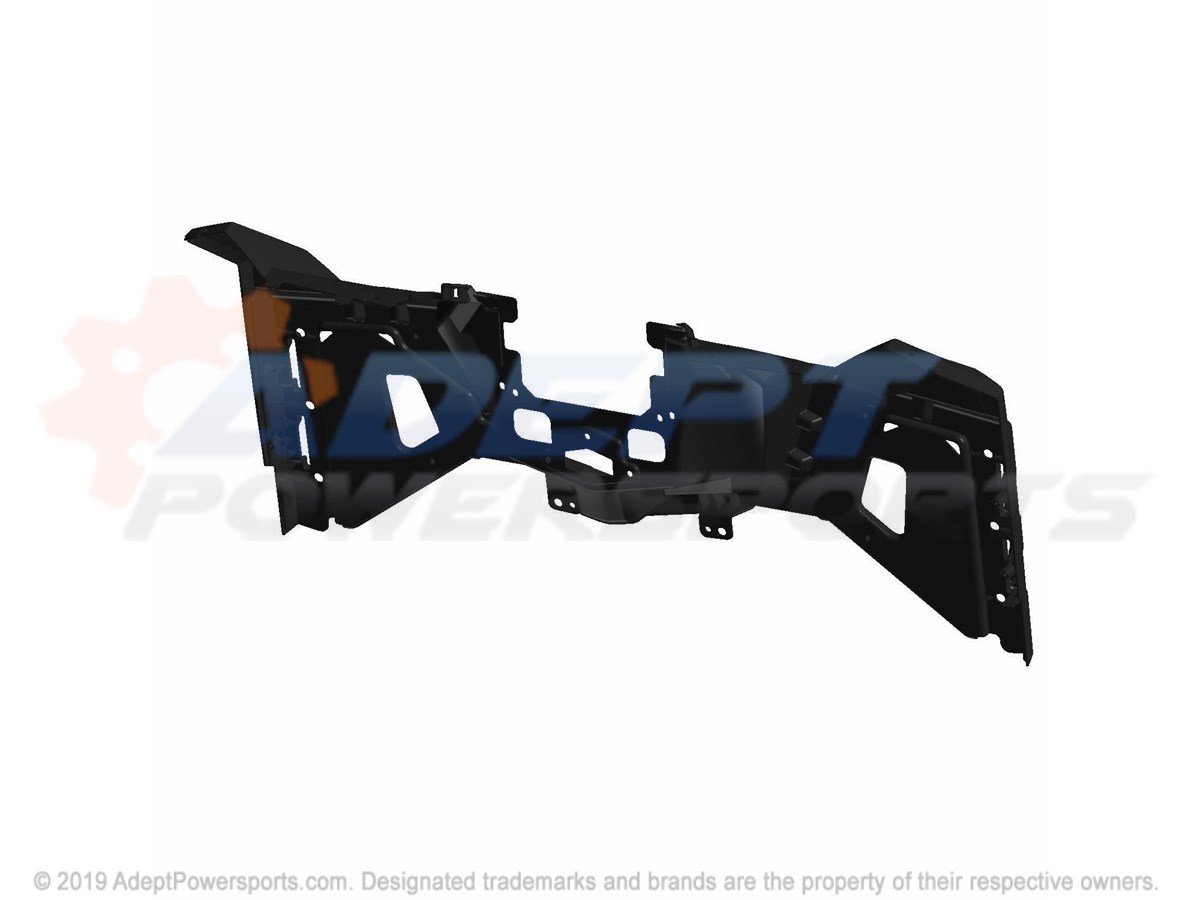

REAR CAB Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASM-CAB, REAR, SPMN, XP, PPC Part #: 2636298-587 Required per assembly: 1 Note: B9 Currently Not Available
1	ASM-CAB, REAR, RADAR, BLUE Part #: 2636161-724 Required per assembly: 1 Note: BN Currently Not Available
1	ASM-CAB, REAR, S.BLUE Part #: 2637626-765 Required per assembly: 1 Currently Not Available
2	RIVET Part #: 7661855 Required per assembly: 8 ~~$2.99~~ $1.73 - + Add to cart
