OEM Parts Polaris 2019 Polaris Sportsman 1000 XP EU (R02) Front Bumper And Mounting

2019 Polaris Sportsman 1000 XP EU (R02) A19SXE95FR - Front Bumper And Mounting

FRONT BUMPER and MOUNTING Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

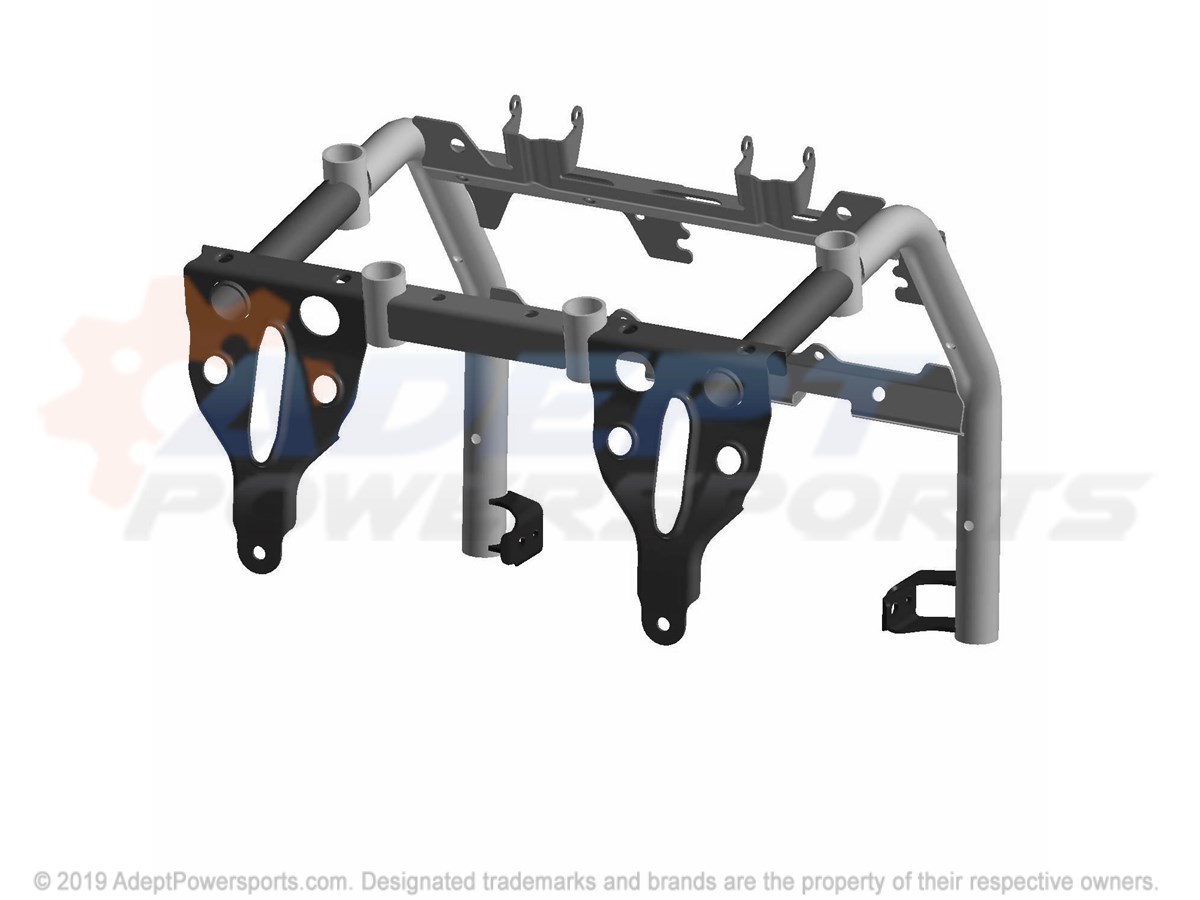

Polaris 1022303-329 Weld-Bumper, Front, Blk

WELD-BUMPER, FRONT, BLK

Part #: 1022303-329 Required per assembly: 1
Currently Not Available
2

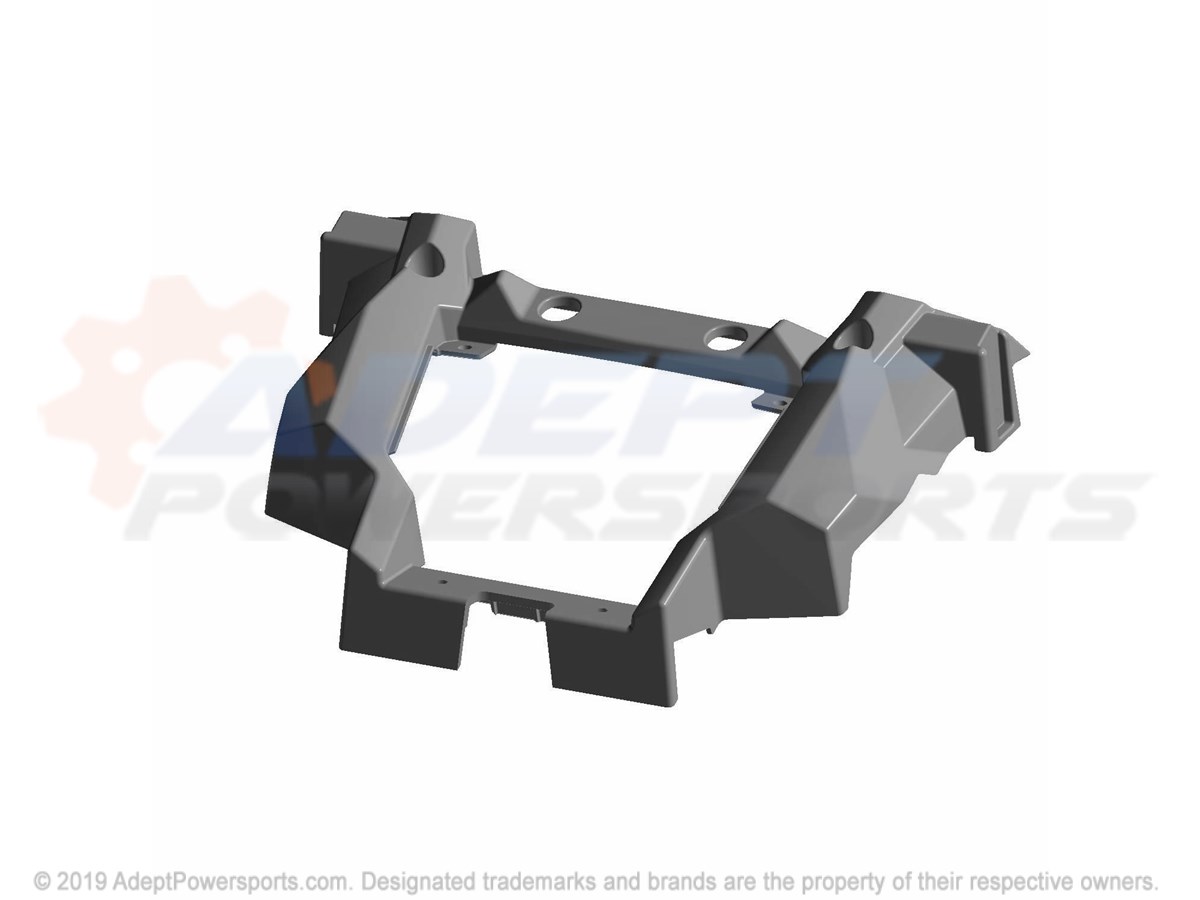

BUMPER-FRONT, UPPER, EU, BLK

Part #: 5454153-070 Required per assembly: 1
Currently Not Available
3
Polaris 5452933-070 Bumper-Front, Lower, Blk

BUMPER-FRONT, LOWER, BLK

Part #: 5452933-070 Required per assembly: 1
Currently Not Available
4
Polaris 7661855 Rivet

RIVET

Part #: 7661855 Required per assembly: 2
$2.99
$1.73
-
+
Add to cart
5
Polaris 5453258-070 Screen-Radiator, Blk

SCREEN-RADIATOR, BLK

Part #: 5453258-070 Required per assembly: 1
Currently Not Available
6
Polaris 7518555 Screw

SCREW

Part #: 7518555 Required per assembly: 4 Note: Bolt, Flange
Currently Not Available
7
Polaris 7512095 Screw (For Ref. 33 W/O Inserts)

SCREW (FOR REF. 33 W/O INSERTS)

Part #: 7512095 Required per assembly: 2 Note: Screw
Currently Not Available
8
Polaris 7519156 Screw

SCREW

Part #: 7519156 Required per assembly: 4
Currently Not Available
